UL83 Standard Cable Thermoplastic Insulation Nylon Wire

Product Description

Standard
The product is manufacture according to the standard of Q/320282DCE010-1999or JB/T10261-2001,and the same time is also manufactured
according to the standard of IEC,English,Germany and America.

Applications
PVC insulated and Nylon jacketed wires and cables is suitable for power device with fixation installation and ratel voltage up to and including
450/750V.

Operating characteristics
Rated power - frequency voltage Uo/U:450/750V and 300/500V.
Max.admissible operating temperature of conductor:
BVN,BVNVB:70°C
BVN-90:90°C
The installation temperature should be not below 0°C
The bending radius of cable:
D≤25mm.:≥4D
D>25mm.:≥6D
(D-Diameter of the cable)

General purpose building wire for services, feeders and branch circuits.

Temperature rating not to exceed:

THHN/THWN: 90°C dry and dump, 600V

THHN/THWN: 75 °C wet or in oil, 600V

THWN-2: 90°C Dry, wet or in oil,600V

 1. Application:

General purpose building wire for services, feeders and branch circuits.

Temperature rating not to exceed:

THHN/THWN: 90°C dry and dump, 600V

THHN/THWN: 75 °C wet or in oil, 600V

THWN-2: 90°C Dry, wet or in oil,600V

 2. Construction:

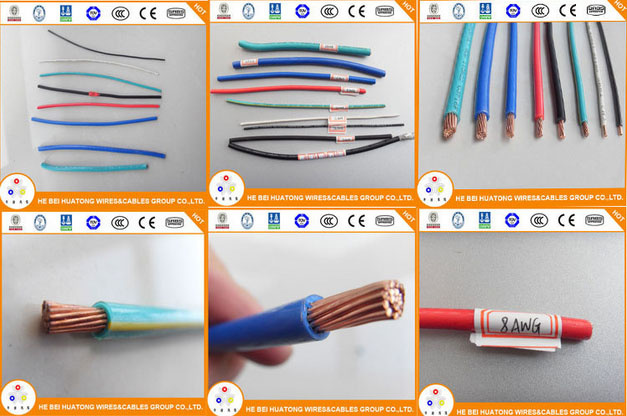

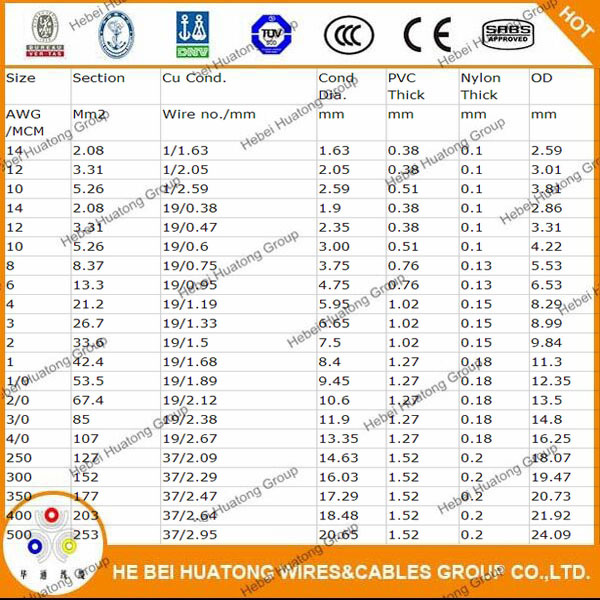

Conductor: Annealed Copper, solid or stranded sizes 14AWG up to 1000MCM

Insulation: Premium Grade Flame Retardant Polyvinyl Chloride( PVC)

Jacket: Tough Polyamide (Nylon)

 3. Standard&Test Specification:

THHN/THWN-2 Conforms to following standards:

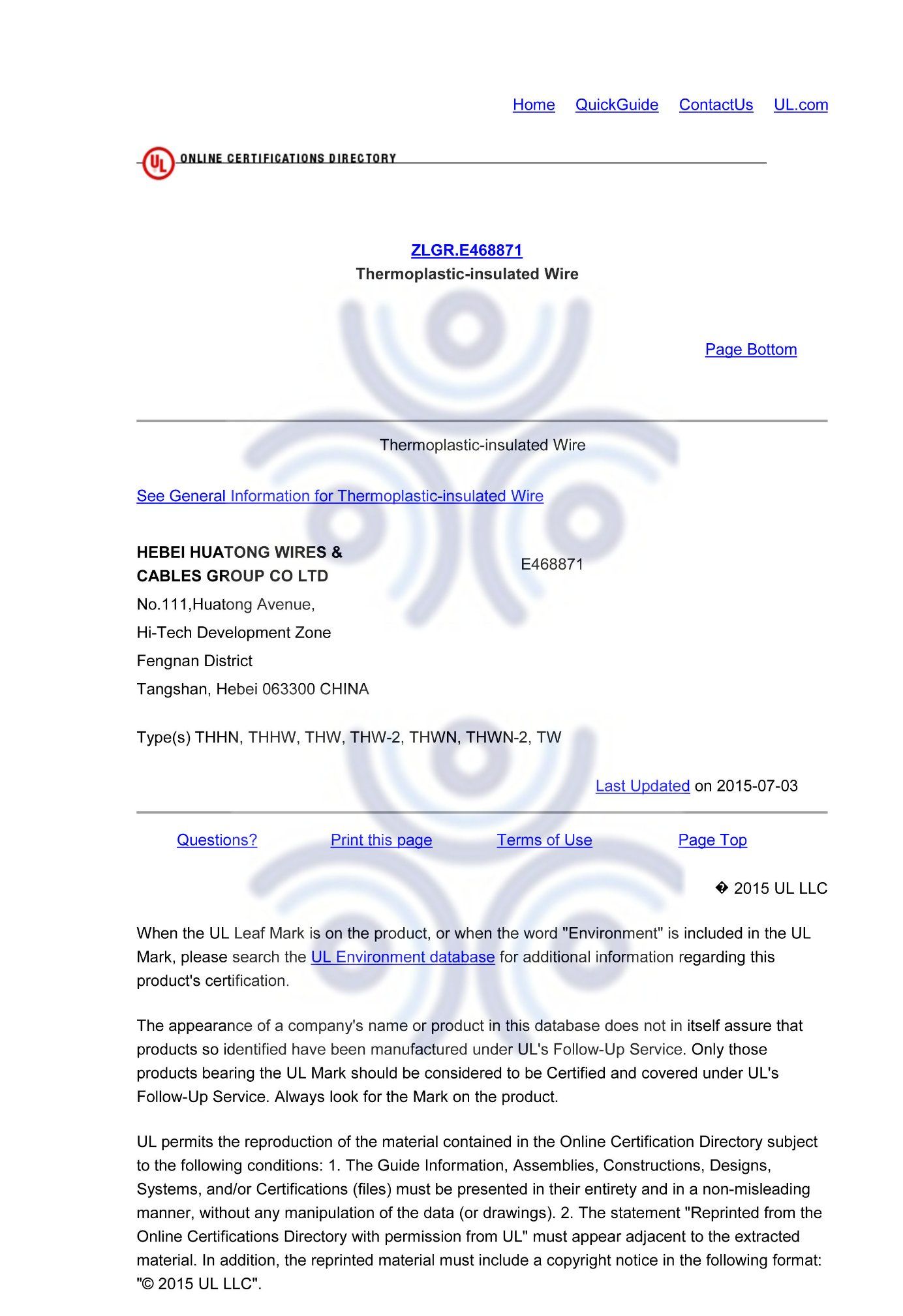

UL83 for Thermoplastic Insulated Wire and Cables(THHN/THWN-2)

UL758 for Appliance Wiring Materials(AWM)

UL1063 for Machine Tool Wire(MTW)(Stranded Conductor Only).

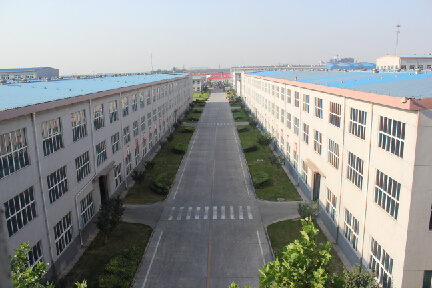

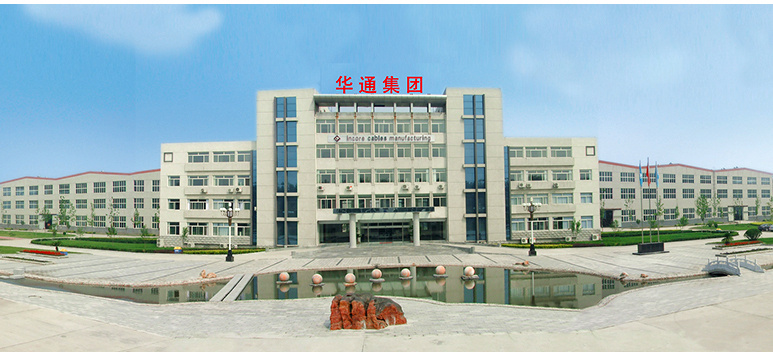

Hebei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables
and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very
influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control
cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products
are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.





Certificate
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so
on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we
will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you
via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within
a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
