Ultra-Low ESR, High Power 2.8V 100f Super Capacitor
| Price: |
US $ 0.1-5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BRP002R8S107FA |
| Rate Voltage: |
2.8V |
| Rate Capacitance: |
100f |
| Operating Temperature: |
-40c~65c |
| Max. Tolerance Of Capacitance: |
-20%~+80% |
| Cycle Life: |
1000000times |
| Color: |
Black |
| Type: |
Supercapacitor |
| Application: |
Backup Power ,Energy Storage |
| Package Type: |
Through Hole |
| Capacitance: |
100f |
| Usage: |
Backup Power ,Energy Storage |
| Tuning: |
Supercapacitor |
| Filter: |
Supercapacitor |
Product Description
Liaoning Brother Electronics Technology co., Ltd.

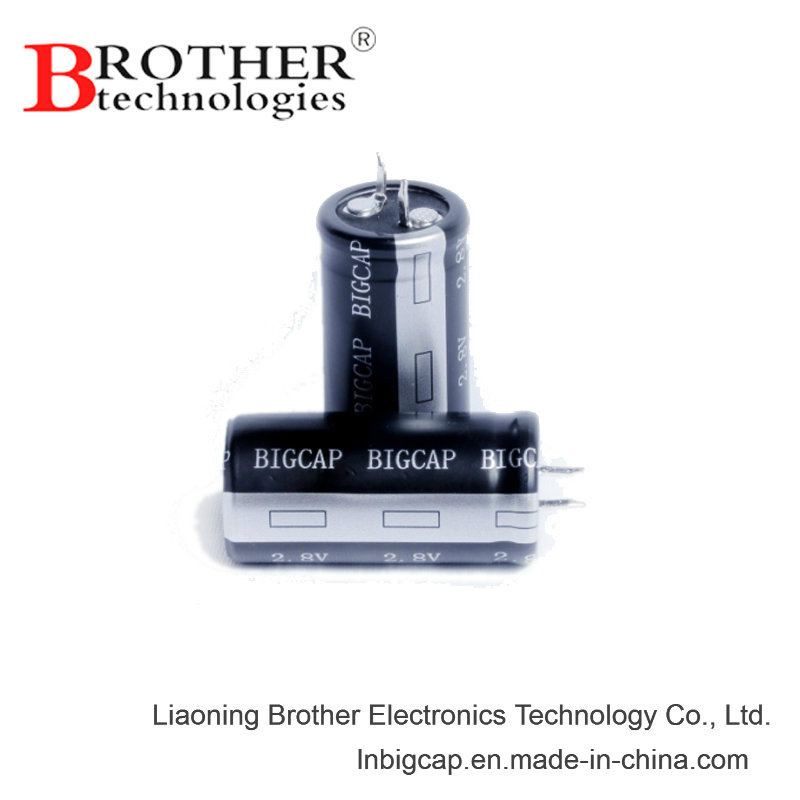

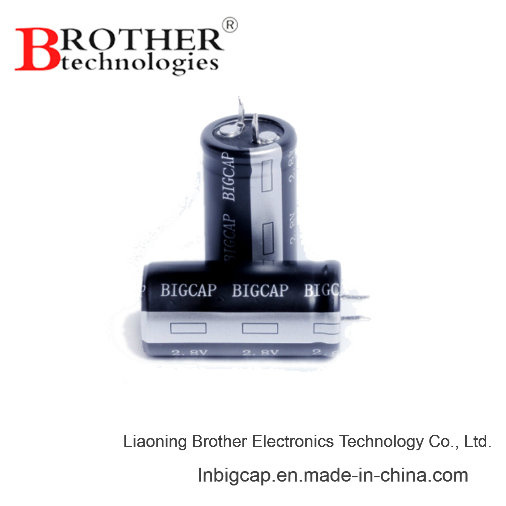

BRP002R8S107FA 2.8V 100F Supercapacitor
FeaturesCylindrical shape structure,low internal resistance;
Comply with ROHS standards,no Cd,Pb and other pollutants;
Long charge-discharge cycle life;
Ultra-low internal resistance,suitable for high power discharge.
High voltage up to 2.8V, under the same conditions with high reliability.Specifications
Part Number | Nominal Voltage
V dc |
Capacitance
F |

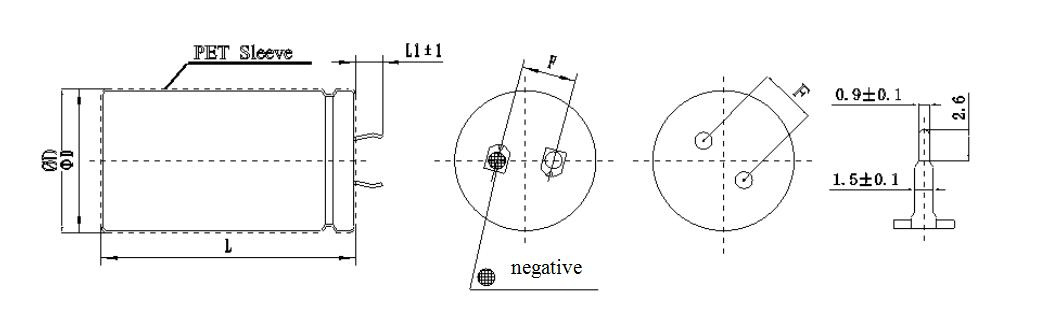

MAX ESR,1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | L1±0.5
(mm) |
| BRP002R8S107FA | 2.8 | 100 | 12 | 22.4×45.5 | 10 | 5.5 |
Part Number | Max. stored energy
mWh | Nominal current
(25ºC),A | Max current
(1S),A | Weight,g |
| BRP002R8S107FA | 108.89 | 22 | 65 | 21 |
| TERM | BRP002R8S107FA | Test Conditions |
| Category temperature range | -40ºC~+65ºC | |
| Rated operating voltage | 2.8VDC | |
| Capacitance | 100F | 25ºC ΔV=2.16-1.08 I=3000mA |
| Permitting capacitance error | -20%~+20% | |
| Characteristics in different temperature | ΔC | step 2 | Less than or equal to 30% of initial specified value | step1:+25±2ºC
step2:-40±2ºC
step3:+65±2ºC
step4:+25±2ºC |
| ESR | Less than or equal to 400% of the initial specified value |
| ΔC | step3 | Less than or equal to 30% of initial specified value |
| ESR | Initial specified value or less |
| LC | 4 times than Initial specified value |
| ΔC | step 4 | 20% of the initial specified value |
| ESR | Meet the initial specified value |
| LC | Meet the initial specified value |
| Endurance | ΔC | 30% of the initial specified value | Voltage:2.7V
Temperature:+65±2ºC
Time:1000h |
| ESR | Less than or equal to 2 times of the initial specified value |
| LC | Initial specified value or less |
| Appearance | No electrolyte leak or other mechanical damage |
| Cycle life | ΔC | 30% of the initial specified value | Voltage:2.7V
Temperature:+25±2ºC
Cycle index:500000times |
| ESR | 2 times than Initial specified value |
| TERM | BRP002R8S107FA | Test Conditions |
| Lead strength | NO damage on leads | |
| Solder ability | More than 3/4 of the terminals covered by tin | |
| Temperature cycle | C | Meet initial specified value | Temperature cycle:-40±2ºC→Normal temperature →+65±2ºC→Normal temperature
Cycle:5times |
| ESR |
| LC |
| Appearance | No leaked electrolyte or other mechanical damage |
| Shelf life | ΔC | 20% of the initial specified value | Voltage:0V
Temperature:+65±2ºC
Time:1000h |
| ESR | Less than or equal to 3 times of the initial specified value |
| LC | Initial specified value or less |
| Appearance | No leaked electrolyte or other mechanical damage |
| Humidity Characteristics | ΔC | 30% of the initial specified value | Temperature:+40±2ºC
Humidity:90~95%RH
Time:240h |
| ESR | Less than or equal to 2 times of the initial specified value |
| LC | Less than or equal to 4 times of the initial specified value |
| Appearance | No leaked electrolyte or other mechanical damage |
Self discharge characteristics
(voltage holding characteristics) | The voltage between the positive and negative electrode≥2.1V | Charging process: normal temperature,non-loaded,charge at rated voltage for 24h
Lay aside process:temperature less than 25ºC,relative humidity less than 60%RH,lay aside 24h at
open circuit |

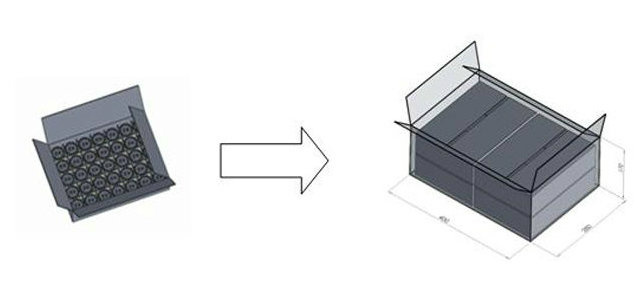

Packiaging & Delivery| Part Number | QUANTITY(PCS) | Dimension (L×W×H)mm | Total weight (Kg) |
| | / Inner | / Outer | Inner | Outer | |
| BRP002R8S107FA | 70 | 280 | 260×188×70 | 400×280×170 | 7.6 |
Standard export carton
70pcs/case(70pcs/case)
4case/carton(280pcs/case)
7.6kgs/carton

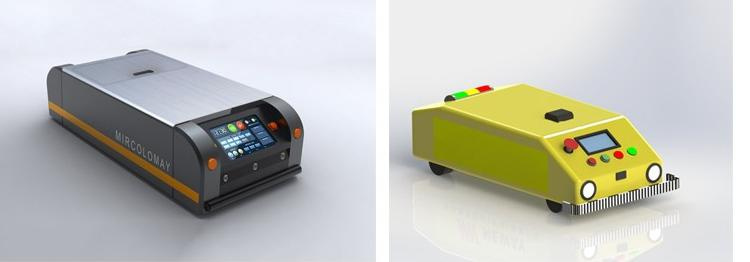

Delivery Detail:5~20 days after order ApplicationsCan be used in Pitching control system of Wind Turbine Generator; Hybrid drive trains;Mass transportation braking, energy recovery system;UPS/DVC; Heavy duty machinery;Locomotive engine startup system; The solar ,wind power system.super capacitor including radial leads capacitors can be used in the CVG robots to trsport goods inside workshop.
Our Service1. All of BIGCAP super capacitor module 13.5V 2.0F/4.0F,16.2V 60F,27V 10F,30V 5F,30V 7F, 108V 7.5F quality guaranteed 1 year2.We can supply our customer high quality products with a reasonable price, by using our products, customers can cut off their production cost and assure their products' stability.
3.We can design and produce products according to customer's requirments.
4.With our professional technical team,we can provide our customer with professional technical support.
5.More importantly,we will be five-star service,high quality and low price!Our advantagesStrict production process control:
Always follow 6S standard and ISO90001 requirement to keep product in quality.
Advanced technology:
Our single capacitors rate voltage is up to 3.0V,high temperature is up to 85C.
BIGCAP technique upgrade rapidly and surprise our customers every year.
Professional team:
Our R&D staff have more than 12 years experience in super capacitors filed and have a lot of experience in developing, designing and producing super capacitors.
100% full inspection
Every single capacitors are fully inspected by its unique processand the percent of pass is 100%.
Liaoning Brother Electronics Technology Co., Ltd is a manufacturer of the Bigcap® Super capacitors which is located at High-TechTechnologyIndustrial Park, Chaoyang, Liaoning. Favorable location endows our company with easy access to transportation and communication.
Our company specializes in the design, research, development, production and sale of various super capacitors which exhibit complete specifications and reliable quality. The capacity of single super capacitor ranges from 0.01F to 3000F and our products extend to cover more than 100 types in around ten series, such as BRE, BRP and BME. So far our products have come into extensive use in such areas as intelligent instruments (gas meter, water meter, ammeter, etc. ), electrical equipment, medical equipment, solar and wind energy products, toys, and electric cars. Serving as back-up source, our products supplies high power in short term.
Our research team is highly experienced in the manufacturing of super capacitors. Our management has been engaging in the management of production and R&D of super capacitor for 12 years, our main technical personnel have 8 to 10 years' experience in the design and manufacturing of this field and our workers have more than 5 years' experience in the processing of super capacitors. Our work team that is made up of the technical elites of the industry commits to turning out first-rate super capacitors of China and to enabling our products to play a leading role in international brands.
By carrying forward the valuable experience in the super capacitor industry and combining the advanced electrode activation technology, now our products exhibit advanced technical level in China and stable quality. Our BIGCAP® Super capacitor series is characterized by reissuance to high voltage (Single super capacitor can operate in 2.8V. ), great stability in long-term operation, wide temperature range (maximum temp.: 85º C), ultralow internal resistance that applies to electric discharge of medium and large power.

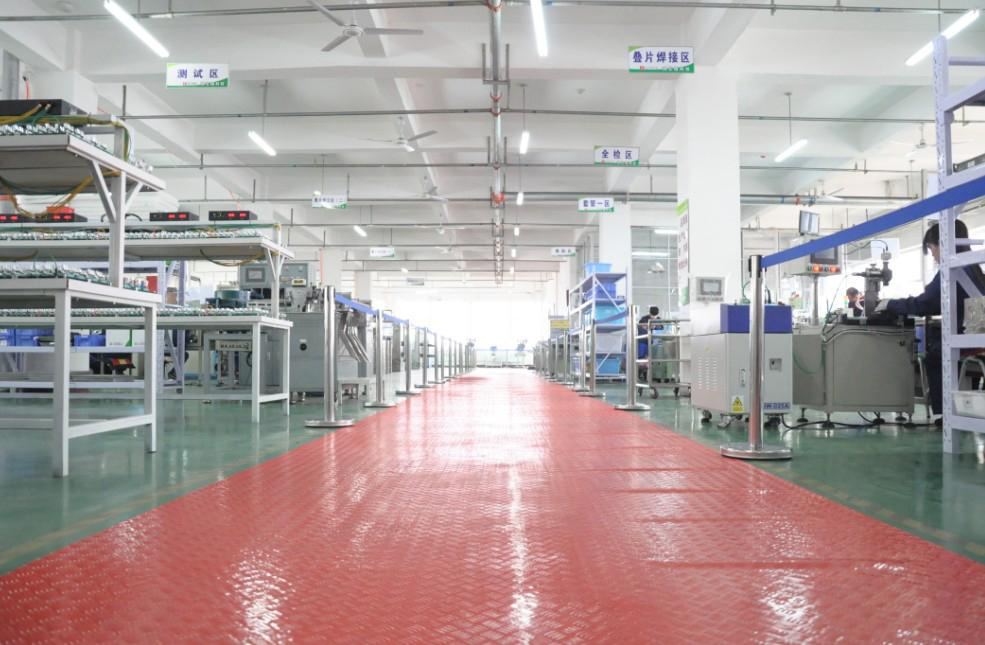

Our production facilities are characterized by high automation degree and high precision. Our company carries out the Six Sigma management system and has obtained the ISO9001: 2008 quality management system and the ISO14001: 2004 environmental management system. Our products are environmental-friendly and comply with the RoHS of the EU.
Our quality policy is win good market reputation through scientific quality management, elaborate production process, powerful technical support and excellent after-sales service.
Bigcap Technology relies on product quality to survive and progress. Each one of our product is our cell, the quality of which is closely related to the life of Bigcap. To offer satisfactory products to customers is the bounden duty of all our employees.
