Ultra Slim 50W 24V 2A Single Output Power Supply

Name: Ultra Slim 50W 24V 2A Single Output Power Supply
Brand: all-electronics-online.com
SKU: 831667275
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 4.29-5.29/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LRS-50-24
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Item Name:	24V Power Supply
Dimension:	998330mm
Weight:	0.23kg
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Brand:	Weho

Product Description

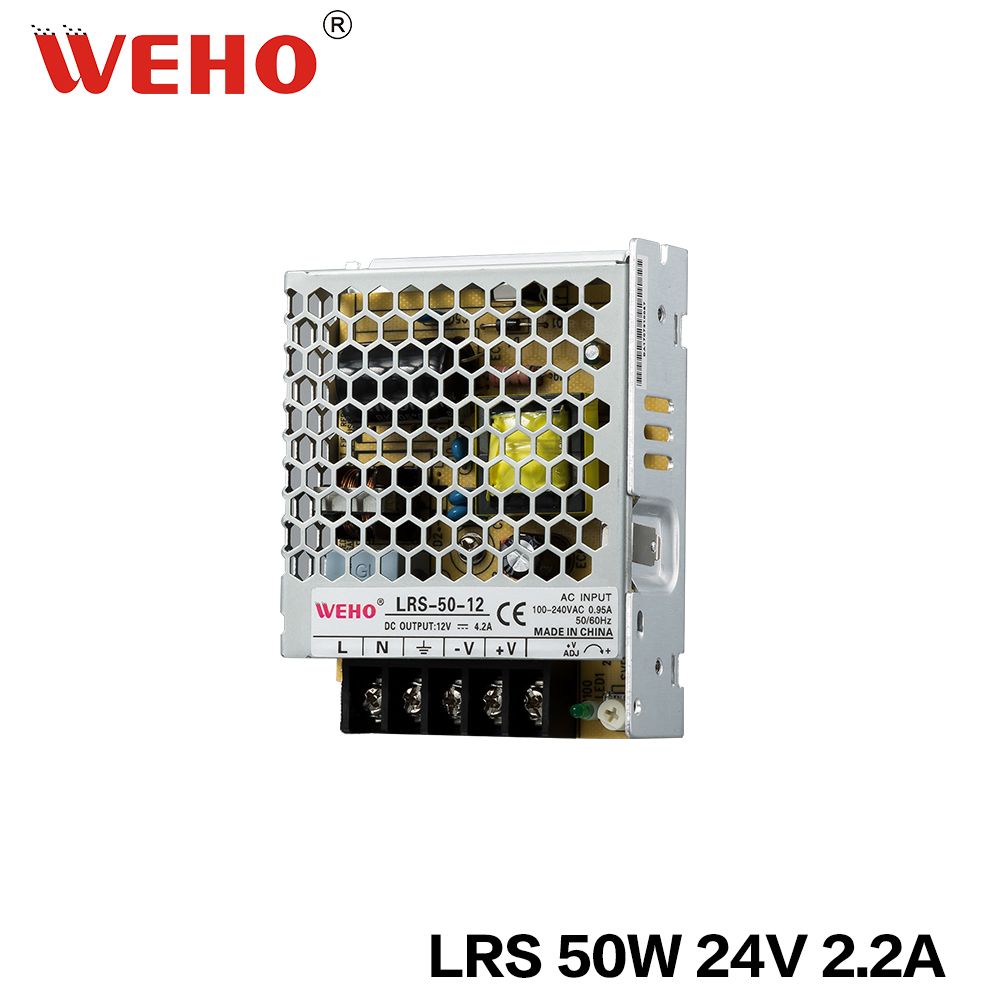

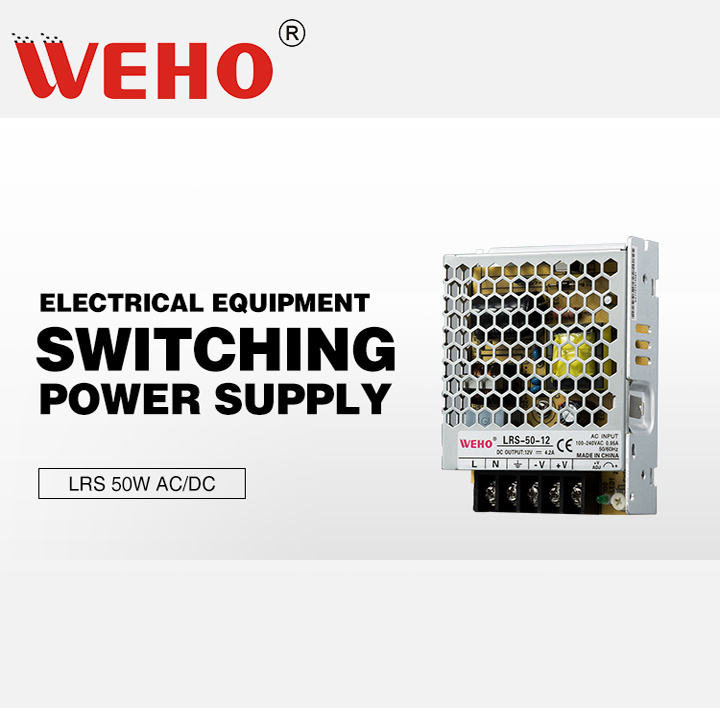

Ultra slim 50W 24V 2A single output power supply

Model	LRS-50-12	LRS-50-24
Dc output voltage	12V	24V
Rated output current	4.2A	2.2A
Output current rage	0-4.2A	0-2.2A
Rated Power	50W	50W
Wave and noise	120mVp-p	150mVp-p
Voltage ADJ. range	10.2-13.8V	21.6-28.8V
Voltage tolerance	±1%	±1%
Line Regulation	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%
Efficiency	86%	88%
AC input voltage range	AC85~264V 47~63Hz;240~373VDC
Input current	0.95A/115V 0.56A/230V
AC INnrush current	Cold-start 45A/230V
Overload proctection	110%~140% Potection type: Hiccp mode,recobers automatically after condition recoverd
Over-voltage protection	13.8-16.2V	28.8-33.6V
	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	500ms,30ms/230VAC500ms,30ms/115VAC at full lod
Hold up time	30ms/230VAC ,12ms/115VAC at full lod
Withstand voltage	I/P-O/P:1.5KVAC I/ P-FG:1.5 KVAC O/P-FG:0.5 KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-30°C~+70°C
Overall dimension	998330mm
EMC standards	EN60950-1
Weight	0.2Kgs

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
