| Prod Model: |
FBTC1208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Insulation Resistance: |
100mohm Min.100V DC |
| Dielectric Strength: |
250V AC for 1 Min |
| Electrically Life: |
1000,000cycles |
| Contact Resistance: |
100mohm Max |
| Operating Force: |
90gf/180gf /250gf/400gf |
| Type: |
Standard |
| Installation Form: |
Insert Welding |
| Structure: |
1-Point Contact |
| Package: |
SMT Chip Package |
| Application: |
Audio and Video Products |
| Shape: |
Square |
| Shrapnel: |
Silver |
| Certification: |
CE |
Product Description
FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.
Fast is our principle, our normal delivery time as below:
Sample delivery date is: 1-3days.
Production delivery time: 7-10days.
New product development: 15-20days
Our Company Advantage:
1, Reliability production
2, Famouse Brand "FBELE", Best Reputation
3, well experienced R&D engineer
4, Effective working Team
5, Aggressive Price
6, Constant New products
Don't hesitate, E-mail us immediately now.
you will get your best solution.

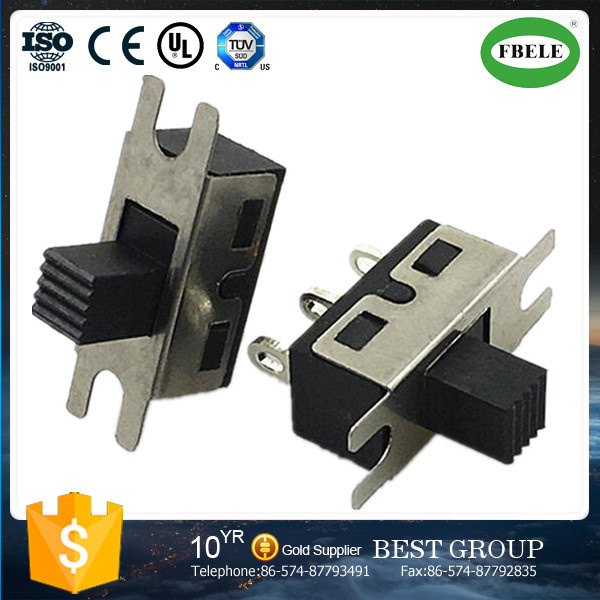

The performance of toggle switch:
Rated power: DC50V 0.5A
Operating temperature range: -20 DEG ~60 DEG
An electrical performance specifications.
1: contact resistance test in small current (100mA) under test.
Requirement: must reach 30 milliohm below.
2 insulation resistance test:
500V DC input voltage for 1 minutes, according to the following method of contact test:
(1) contact between terminals. (2) between the rubber seat body and row feet.
Requirements: must be 100 megohm.
3 high voltage test:
AC 500V (50-60Hz) input voltage, current sensitivity is 0 to 1 minutes. 5mA, according to the following method of contact test:
(1) between the rows of pins (2) between the rows of pins and the shell
Requirement: no insulation damage and other abnormalities.
Two. Mechanical performance specifications
1 routine action force: 250+_50gf 2 terminal strength
Intensity (500gf) 1 minutes in any direction of the apex.
No split at the rows of pins, etc. the abnormal song,
Requirements: to meet the mechanical and electrical properties.
3 test standard status
Temperature, humidity, and air pressure are tested in the absence of specified conditions:
(1) the temperature is 5 degrees C () ~35 C (2), the humidity is 45%~85% (3) air pressure is 80Kpa~106Kpa
Three. Durability
1 welding test
The terminal is immersed in the pool at the top of the soldering temperature is 1 mm deep, and 230 + 5 C, time is 3 + 0.5 seconds.
be careful:
(1) welding time should be less than 3 seconds (2) welding area to have more than 80%.
2 resistance to solder test
Control of welding welding when the furnace temperature at 260 - 5 DEG C, the furnace time is 3 + 0.5 seconds, on the substrate thickness is 1 mm
Hand welding temperature should be controlled at 320 + 5 C, the time is 3 + 0.5 seconds.
Requirements: must satisfy the body without deformation, to meet the mechanical and electrical energy.
3 life testing
Without load: the operator with a rate of 60 times per minute for 100000 to no load test.
requirement:
(1) the contact resistance cannot be over 200m (2), to meet other mechanical and electrical properties.
4 heat resistance test
Placed at a temperature of 85 - 2 DEG C in the test after 96 hours, and then placed in 1 hours to determine the normal room temperature.
Requirements: no abnormalities in appearance, to meet the mechanical, electrical properties.
5 cold resistant test
Place the 40 - 2 DEG C. The relative humidity in the environment of 90~96% after 96 hours,
Then the model will be placed in the normal environment was tested after 1 hours.
Requirements: no abnormal appearance, to meet the mechanical, electrical properties.
6 humidity test
Place the 40 - 2 DEG C. The relative humidity in the environment of 90~96% after 96 hours,
Then the model will be placed in the normal environment was tested after 1 hours.
Requirements: no abnormal appearance, to meet the mechanical, electrical properties.
