Ultra Thickness for Mechanical Part (G10)

Prod Model:	G10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Thickness:	200mm (7.874")
Sheet Size:	1020*1220mm; 1220*2040mm
Minimum Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Switch Baseplate
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Color:	Natural Green
Brand:	Nova

Product Description

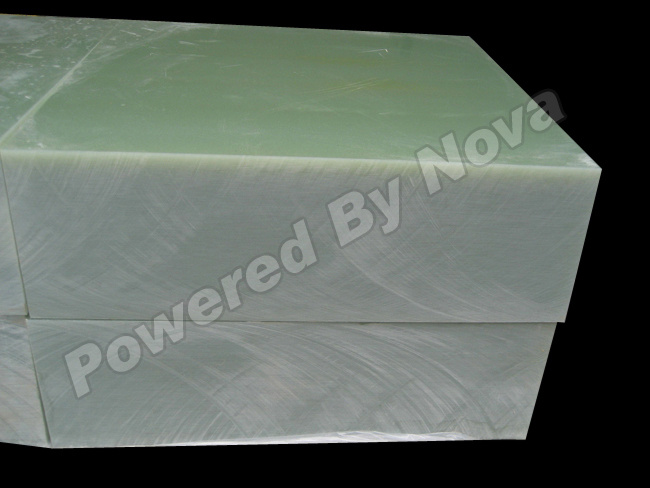

Nova has full experience in ultra thicknesses G10 up to 200mm( 7.874 inches).

* High flexural, impact and bond strength
* No delamination
* No layering on edges

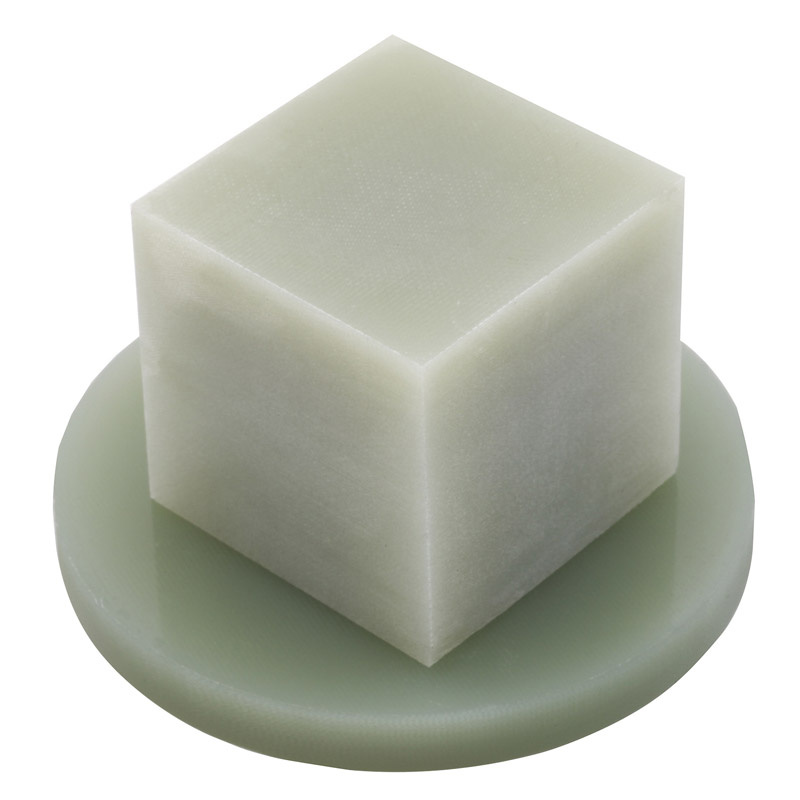

* Especially suitable for machining to G10 rod or mechanical part
* Sheet sizes available in 36"x48", (37"x49"), 40"x48"

These grades are composed ofelectrical alkali-free glass woven fabric base impregnated with an epoxy resin binder under pressure and heat. They have extremely high mechanical & electrical strength. Good dielectric properties under dry and humid conditions. Excellent rigidity and dimensional stability.
G10/FR4 Temperature Index: 135 Degree Celsius

Specifications:
1) Grade: G10/FR4
2) Color: Natural Green; Yellow; Black
3) Thickness range: 0.1mm~100mm
 *(101~200mm available in 915*1220mm & 1020*1220mm)
4) Sheet size: 915*1220mm; 1020*1220mm; 1020*2040mm; 1220*2440mm
5)Min. Order Quantity: 500 kgs in a lot

Widely used as insulating structural parts in electrical & mechanical equipments, such as generators, motors, transformers, terminal boards, PC boards, washers, and many others.
 We have machine capability to process G10 sheet to G10 Rods with tight tolerance.
