| Prod Model: |
XC-50B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE,SGS, ISO |
| Warranty Period: |
12 Months |
| Application Case: |
Heater |
Product Description

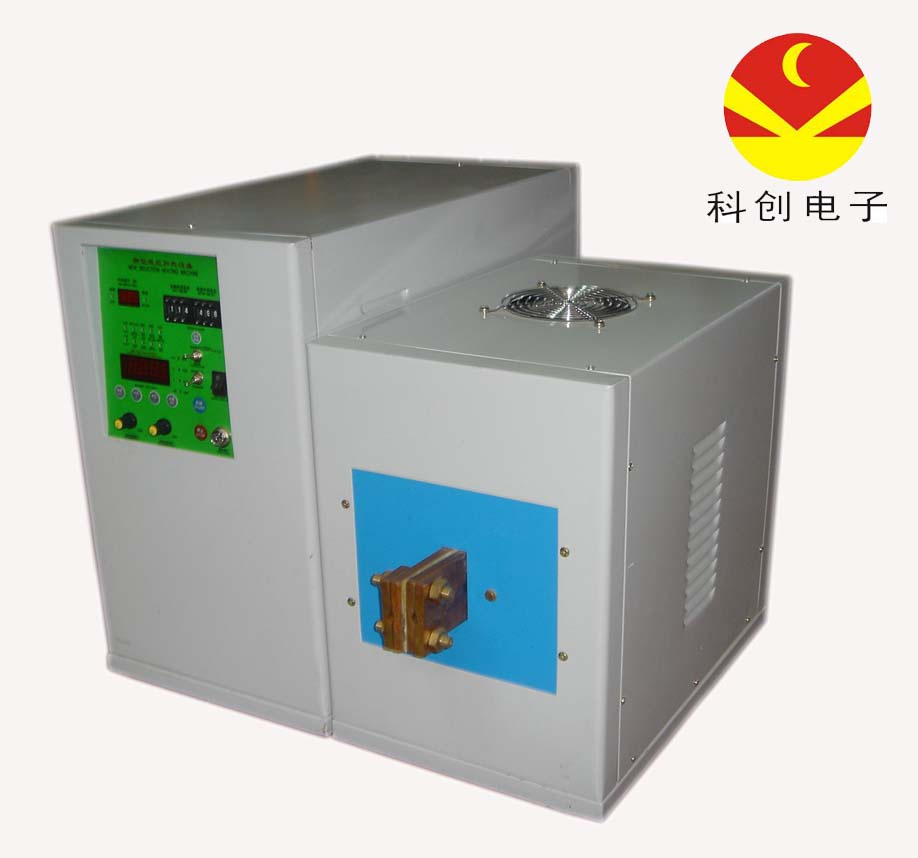

Ultrahigh Frequency Induction Heating Machine With Chiller :
Model
XC-50B
Input Power supply
Three Phases 380V
Rated Input Power
50KVA
Max Input Current(Single Phase)
75A
Oscillating Frequency
100-220KHZ
Central Oscillating Frequency
190KHZ
Frequency Control Precision
±1.5KHz
Working Water Pressure
0.15-0.3Mpa
Memo
One main body and Transformer
Ultrahigh Frequency Induction Heating Machine functions:
1)Digital plc auto-control, it has the function of manual, semi-auto,full-auto, heating-keeping-cooling device period to control.
2) perfect function of protect itself. such as, over-voltage, over-current,lack of water, phase fail,etc.
3)auto frequency tracking, the power can be adjusted to maximum.
4)Special cycle cooling system, make sure the machine work continuously.
5)machine small volume, light weight, easy to remove,it has no high voltage, make operation more safety.
Ultrahigh Frequency Induction Heating Machine range features:
Ultrahigh frequency induction heating machine mainly used for the hardening case depth below 1mm, the smaller hardening case depth, the higher frequency should be. Our ultrahigh frequency induction machine frequency range is 80-500KHZ.
Ultrahigh frequency induction heating machine application fields:
Mainly used in the shaft, gear, chain wheel, machine tool guideways components, Metal wire annealing, hydraulic parts, auto parts, knife/scissor/pliers, stainless annealing and so on.polyethylene-aluminum composite pipeline, steel-plastic composite pipe, cable, wire heating tectorial membrane, food, beverage, aluminum foil sealing, Motor stator spraying, Solar thermal collectors roast elimination process induction heating process and so on.
Ultrahigh frequency induction heating machine power choice principle:
When choosing the power, should consider the workpiece size, hardening mode, Hardening hardness, Hardening case depth, material and so on, sometimes need to consider the production speed and temperature and so on.
Customer service
Call or e-mail us any time. Before you place your order, we will be happy to discuss your detailed requirements with you and help you find a selection of machine that is just right for your market.
Quick Delivery
With your wide requested of faucets with even less than our MOQ, we are able to fulfill most requests within short days of your order.
Promise
Customers Satisfaction, provide good quality and reasonable price and constant after sale service to be engaged in 100% of us .
Ultrahigh Frequency Induction Heating Machine Selection
You can just let us know the type, power, frequency, quenching ways, quenching hardness ,depth and materials, choosing proper frequency according to production efficiency. According to specific workpiece shape, material, welding material and so on to decide. choosing according to smelter furnace and production efficiency, choosing according to product speed, materials, temperatures and so on. If is the axial, please tell us the diameter of the axial? If you have drawings please send us. please contact us more specification.
