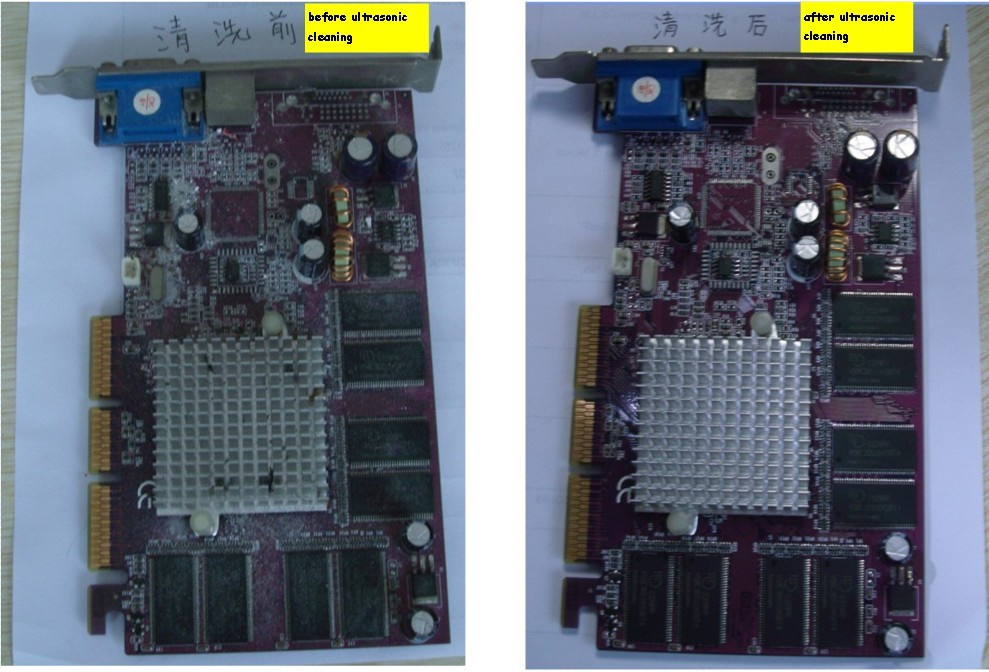

Ultrasonic Cleaner Semiconductor, PCB Flux, Circuit Fast Cleaning Machine Jp-720g
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
JP-720G |
| Material: |
SUS304/SUS316L |
| Tank Size: |
1100X660X600mm |
| Tank Capacity: |
400L |
| Ultrasonic Transducers: |
72PCS |
| Ultrasonic Power: |
3600W |
| Frequency: |
28kHz/40kHz |
| Power Supply: |
220V/380V/440V |
| Warranty: |
1 Year |
| MOQ: |
1 Piece |
| Package: |
1 Unit / Wooden Case |
| Application: |
Industrial Parts |
| Control: |
Manual |
Product Description

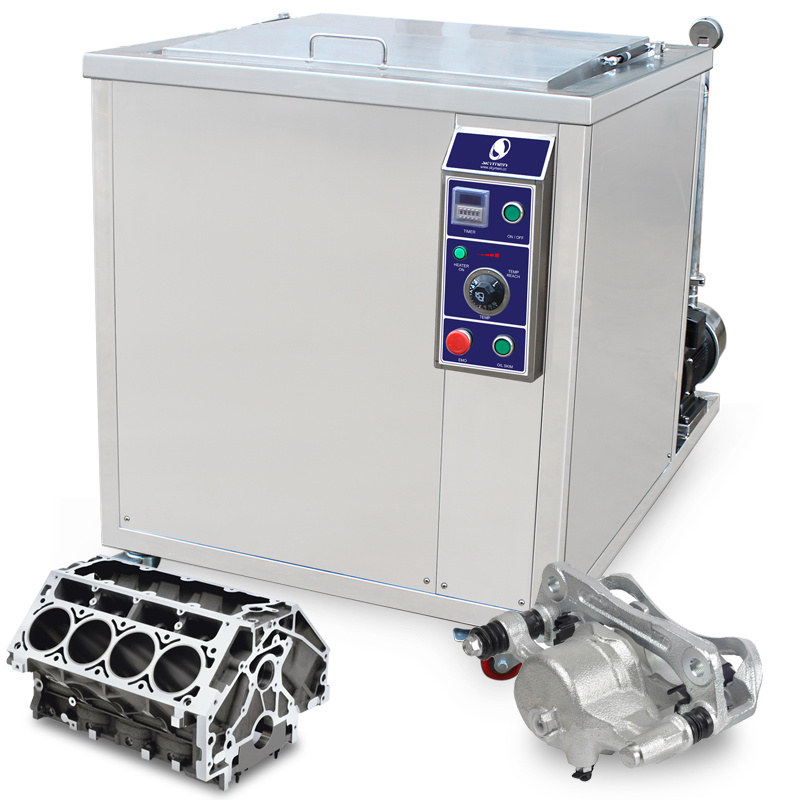

Ultrasonic Cleaner Semiconductor, PCB flux ,Circuit fast cleaning machine JP-720G
Paramter:| Model: Skymen™ | JP-120ST | JP-180ST | JP-240ST | JP-300ST | JP-360ST | JP-720ST |
| TANK'S WORKING DIMENSION (mm) | L1 | 355 | 406 | 500 | 500 | 500 | 1110 |
| W1 | 305 | 305 | 355 | 406 | 460 | 600 |
| H1 | 355 | 460 | 500 | 500 | 550 | 600 |
| | |
| OVERALL DIMENSION (mm) | L2 | 535 | 586 | 680 | 710 | 710 | 1320 |
| W2 | 485 | 485 | 535 | 586 | 640 | 780 |
| H2 | 750 | 680 | 720 | 720 | 770 | 820 |
| TANK'S TOTAL CAPACITY | 38L | 56L | 88L | 101L | 126L | 369L |
| TANK'S MATERIAL | SUS304 / SUS316L |
| IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment ( 20+ microns ) |
| HOUSING'S MATERIAL | Stainless steel |
| ULTRASONIC FREQUENCY* | 28kHz / 40kHz |
| ULTRASONIC TRANSDUCER | 12 | 18 | 24 | 30 | 36 | 72 |
| ULTRASONIC OUTPUT POWER (MAX.) | 600W | 900W | 1200W | 1500W | 1800W | 3600W |
| ELECTRONIC GENERATOR | KG600 | KG900 | KG1200 | KG1500 | KG1800 | KG3600 |
| Build-in | Separate |
| HEATER'S (HOT PLATE) POWER | 1.5kW | 3kW | 4.5kW | 9KW |
| CLEANING TANK'S POWER REQUIREMENT | AC 220V / 240V, 1, 15AMP | AC 220V / 240V, 1, 25AMP |
| GENERATOR'S POWER REQUIREMENT | ---- | AC 220V / 240V, 1, 13AMP |
| 68kHz / 80kHz / 120kHz are also available |
What is ultrasonic cleaning?
Ultrasonic cleaning is a method based on high-frequency sound waves which when traveling into a solution, create oscillating high and low pressure and consequently, cause the rapid formation and imploding bubbles radiate tremendous amounts of ultrasonic energy and shock waves that penetrate into minute crevices to take off dirts or contaminants in a highly effective way.
Features:
360 liters big tank size;
Adjustable ultrasonic power from 0-3600W;
SUS 304 stainless steel tank,anti-rust and durable;
Adjustable thermo controller;
With separate control ultrasonic electronic generator;
Digital timer & heating control;
Boost mode& oil skimmer upon clients requirement;

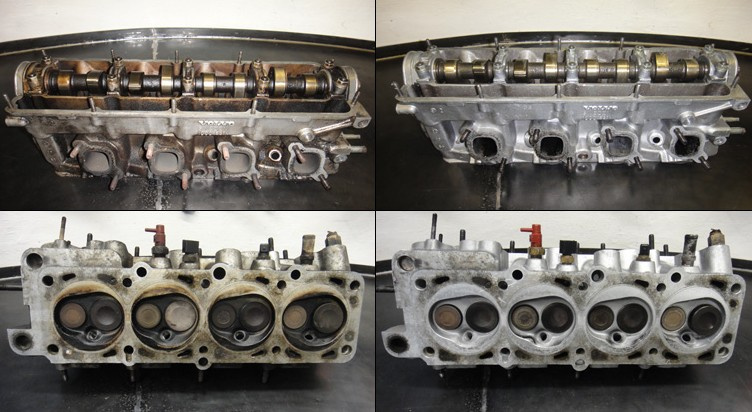

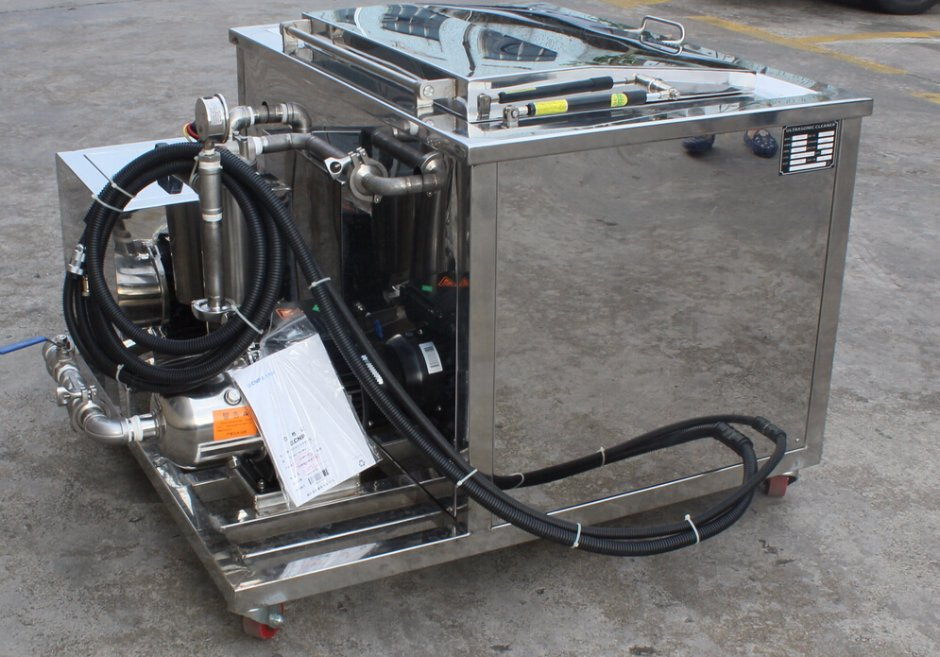

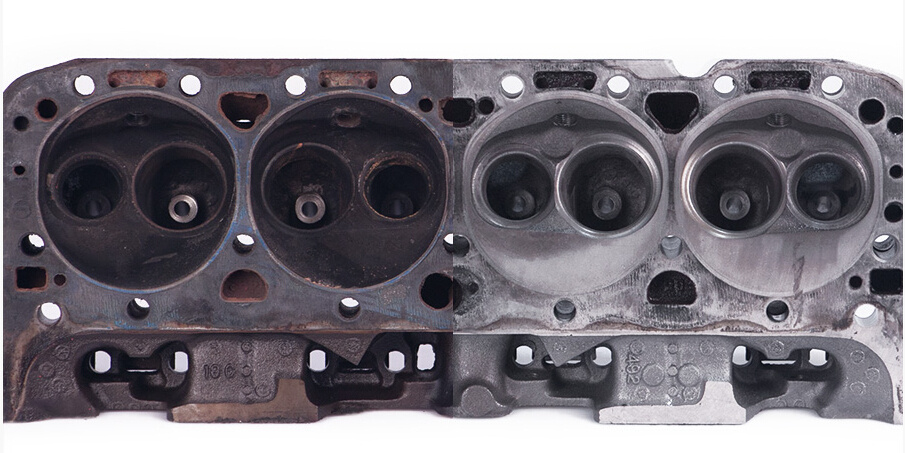

Pressure pump and filter system are available.Clean the internal and external parts of vehicle radiators, industrial compressors and hydraulic coolers of all shapes and sizes. Utilising unique cleaning techniques that incorporate a large high powered cleaning tank with a weir system, pump and filtration systems, this ultrasonic cleaning can bring nearly any clogged up radiator back to life by eliminating build up that limit proper function. this ultrasonic cleaning can bring nearly any clogged up radiator back to life by eliminating build up that limit proper function.Ultrasonic cleaning can help to:
Restore blocked coolers
Extend the life of a cooler
Clean inaccessible places
Promote thorough flushing
FAQ
How should I clean large, dense metal objects in my ultrasonic bath?
When cleaning large, dense objects it is important that if at all possible they are submerged in the ultrasonic tank at an oblique angle. This allows the energy developed to rebound around the ultrasonic tank maximising the full potential of the cleaner. This is particularly important if the ultrasonic tank has only one radiating face, i.e. the base of the tank.
Why does my ultrasonic bath continue to heat beyond the set temperature?
The ultrasonic activity within the tank will increase the temperature by about 10-15°C over an hour period even if the heaters are not in operation. The cavitation creates energy which in turn creates heat.
Can I use water alone in my ultrasonic bath?
Ultrasonic cleaning produces significantly better results when a detergent is used. We do not advise that water alone is used within the bath.
The correct detergent aids in the breakdown of decontamination while also reducing the surface tension of the bath and increasing ultrasonic activity.What is the difference betwwen 28Khz and 40Khz?
Lower frequency produces larger cavitation bubbles which results in each implosion of a cavitation bubble having a higher energy level. As frequency is increased, the size of the cavitation bubbles becomes smaller which means that each bubble implosion will have relatively less energy. The difference in energy levels is compensated for by the fact that more cavitation bubbles are produced as the frequency is increased.
Higher ultrasonic cleaning is more gentle
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. Capacity from 0.6L to 5000L or even more bigger. With powerful transducer and qualified design circuit control to reach very good cleaning result. Mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales Checking:
We salesman would also check the production process to ensure machine 100% according to the sample.
3.100% product inspection:
100% products checking during production, Each unit would be under testing at least 4hours before packed.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
