Ultrasonic Cleaner Semiconductor, PCB Flux, Circuit Fast Cleaning Machine

Single Tank Ultrasonic Cleaners Injectors Ultrasound Cleaning Machine

The ultrasonic cleaner is a microprocessor-controlled device that uses ultrasonic or high frequency sound waves to clean jewelry and other delicate items. Ultrasonic cleaning is based on the cavitation effectcaused by high frequency ultrasonic wave vibration signals in fluid. Microscopic bubbles that expand and rapidly collapse cause cavitation, which creates an effective cleaning action on the surface of object being cleaned. Additionally,the bubbles are small enough to penetrate even microscopic crevices, cleaning them thoroughly and consistently.

What is ultrasonic cleaning?
Ultrasonic cleaning is a method based on high-frequency sound waves which when traveling into a solution, create oscillating high and low pressure and consequently, cause the rapid formation and imploding bubbles radiate tremendous amounts of ultrasonic energy and shock waves that penetrate into minute crevices to take off dirts or contaminants in a highly effective way.

Features:
360 liters big tank size;
Adjustable ultrasonic power from 0-3600W;
SUS 304 stainless steel tank,anti-rust and durable;
Adjustable thermo controller;
With separate control ultrasonic electronic generator;
Digital timer & heating control;
Boost mode& oil skimmer upon clients requirement;
Pressure pump and filter system are available.

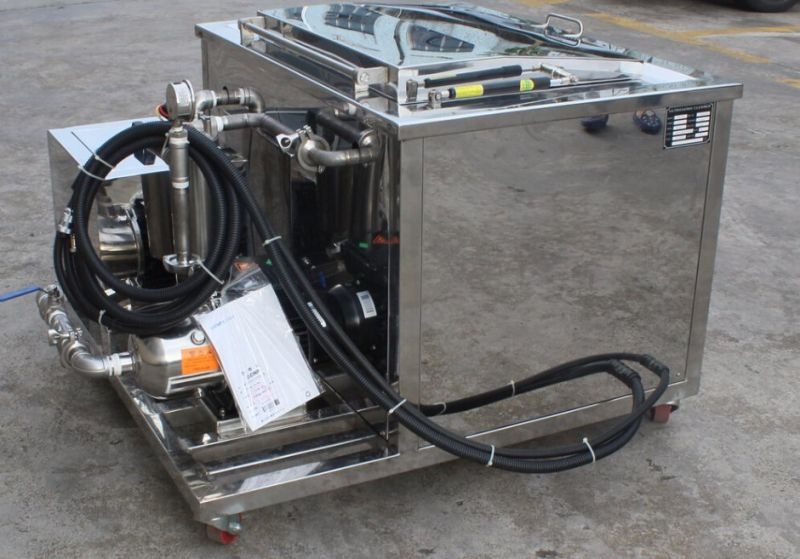

Clean the internal and external parts of vehicle radiators, industrial compressors and hydraulic coolers of all shapes and sizes. Utilising unique cleaning techniques that incorporate a large high powered cleaning tank with a weir system, pump and filtration systems, this ultrasonic cleaning can bring nearly any clogged up radiator back to life by eliminating build up that limit proper function. this ultrasonic cleaning can bring nearly any clogged up radiator back to life by eliminating build up that limit proper function.
Ultrasonic cleaning can help to:
Restore blocked coolers
Extend the life of a cooler
Clean inaccessible places
Promote thorough flushing

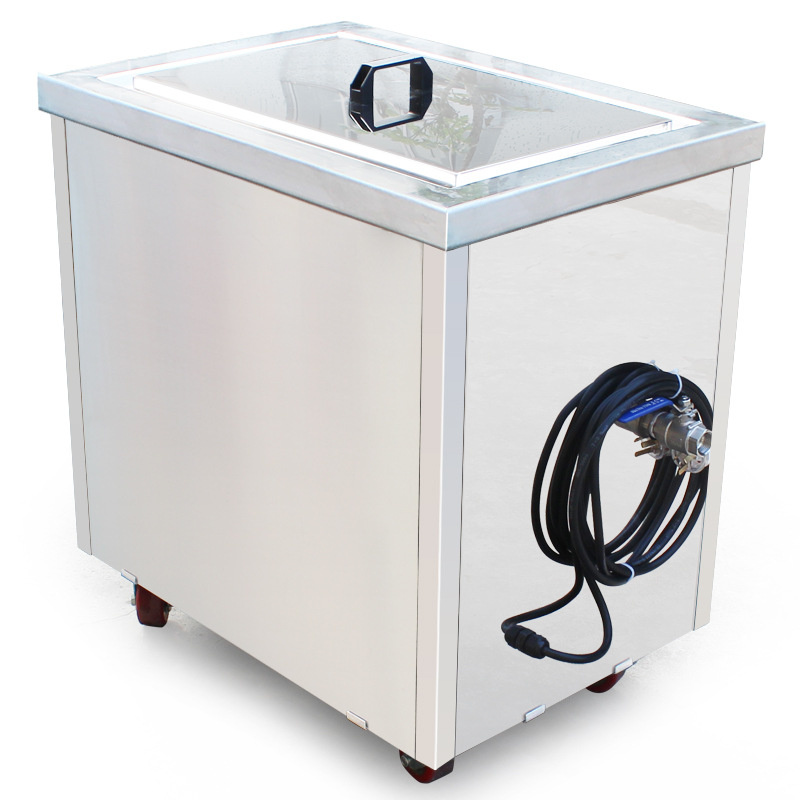

Parameter

Ultrasonic frequency : 40 kHz;

The tank material : stainless steel SUS304 stamping slot;

Shell material : SUS304;

Tank capacity : 38 L;

Timer : 1~99 min adjustable ;

Heater: 0 ~80ºC adjustable;

Power : AC 100 ~ 120 V, 60 Hz/AC 200 ~ 240 V, 50 Hz;

Ultrasonic power : 240~600 W adjustable, 12 transducers;;

Heating power : 1500 W;

The tank size : 500 x 300 x 250 mm (L x W x H);

Shape dimension : 670 x 480 x 700 mm (L x W x H);

N.W. : 30 kg;

G.W. : 36 kg;

 If you need other size machines, please contact me!
