| Prod Model: |
MT01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Free Tracking Platform: |
Yes |
| GPS Chip: |
U -Blox 7 |
| GSM Module: |
industrial Grade Module |
| Waterproof Design: |
Yes |
| Sos Button: |
Yes |
| Geo-Fence Alert: |
Yes |
| Movement Alert: |
Yes |
| GPS Tracker Manufacturer: |
Yes |
| Voltage: |
+9V~+24V |
| Detect Fuel Consumption: |
Support |
Product Description

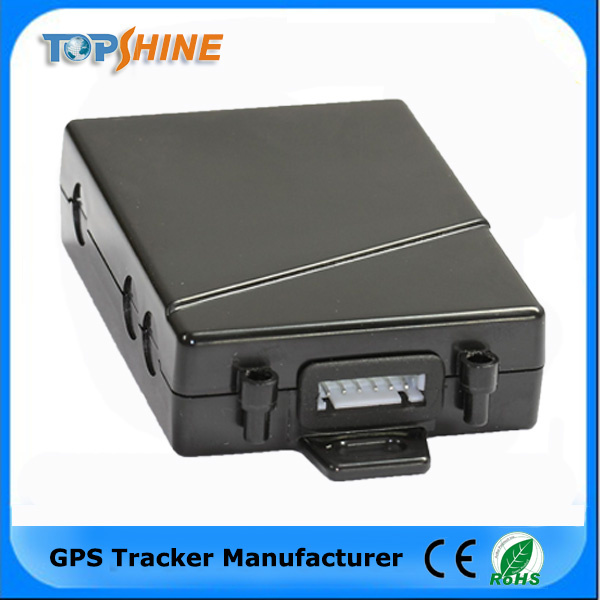

Ultrasonic fuel sensor GPS Car Tracker without drill the tank(*Free tracking platform *Industrail grade module *Two years warranty *CE & RoHS certificates)
Product Overview
GPS car tracker MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of automobile and motorcycle etc. Mini size, built-in antenna and waterproof desinged, easy to be installed, power voltage range from 6V-24V, therefore can satisfy basic tracking and security demands for all kinds of vehicles.
Applications of GPS tracker MT01 * Vehicle Real Time Tracking
* Car/Motorcycle Security/Anti-Hijack
* Comprehensive fleet management
Specifications of GPS tracker MT01
| Items | Specifications |
| Dimension | 80*58*22 |
| Weight | 90g |
| ChargingVoltage | +9V~+24V |
| SIM card type | 3V |
Power
consumption | Active mode(peak) < 1.0A
Active mode(avg.) < 300Ma
Idle mode <50mA |
Operating
Temperature | -20~+75 Celsius degree |
| Humidity | Up to 75% non-condensing |
| External Antenna | Connected via 50 ohm coax connector |
| External SIM Card | Connected via SIM card connector |
| Button | 1SOS and 1poweron/off |
| Microphone | Optional |
| Transmit Power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPSChip | LatestGPSSIRF-StarIIIchipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08 |
| I/O | 2 Digital Inputs (1positivetriggeringand 1negativetriggering)
2 Outputs
1 AD |
Functions & Features of GPS car tracker MT01
* Two way location
* Real time monitoring fuel consumption
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* I/O: 2 Inputs, 1 Output, 1 AD
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Wiretapping/remote listening (optional)
Solutions:
Low price of Car alarm + GPS tracker solution
Other customization function with tracker MT01
For Motorcycle, Private car, Car rental/leasing company tracking & security, Fleet management etc.

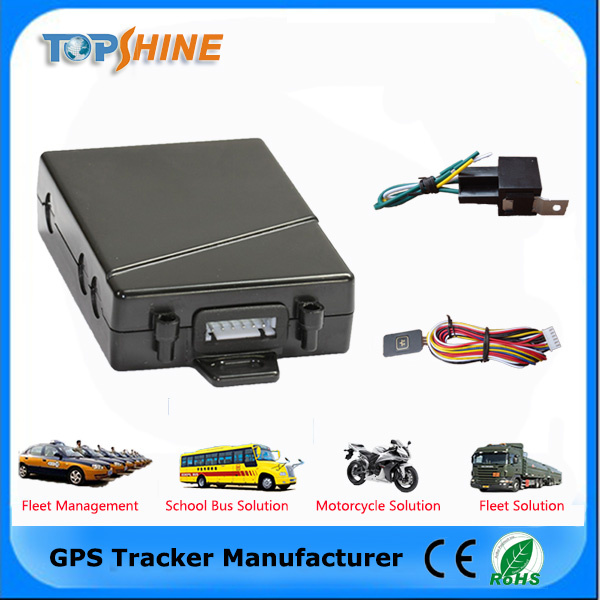

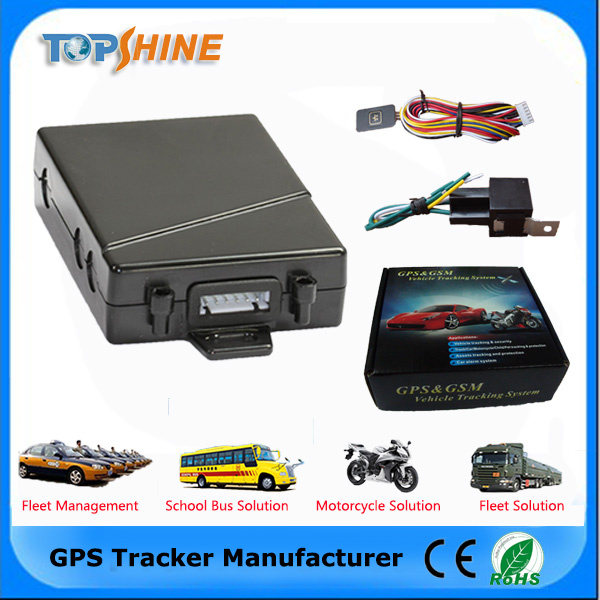

Package Accessories:
Main unit MT01 1 piece
Wiring 1 piece
Relay 1 piece
Optional Accessories:
Ultrasonic fuel sensor
Cuttable fuel sensor
Speical USB cable
Microphone
Speaker

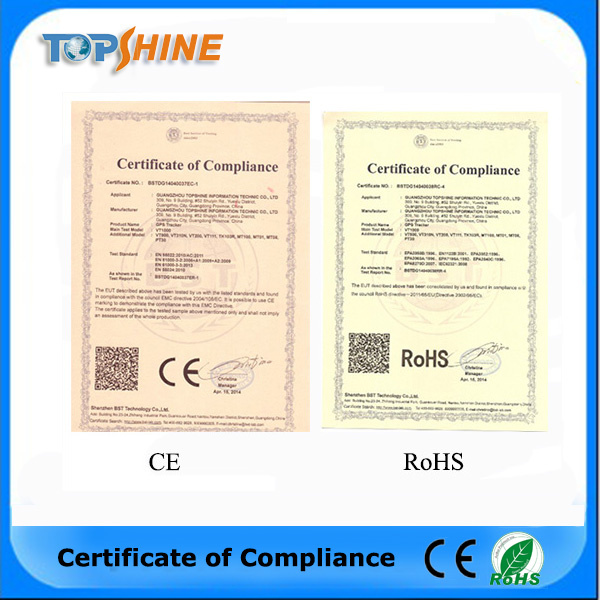

Certificate of Compliance
TOPSHINE Service
- Any inquiries will be replied within 12 hours on workday
- Professional manuafacurer and wholesaler for 8 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idear
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- payment way: T/T , Western Union and Paypal.

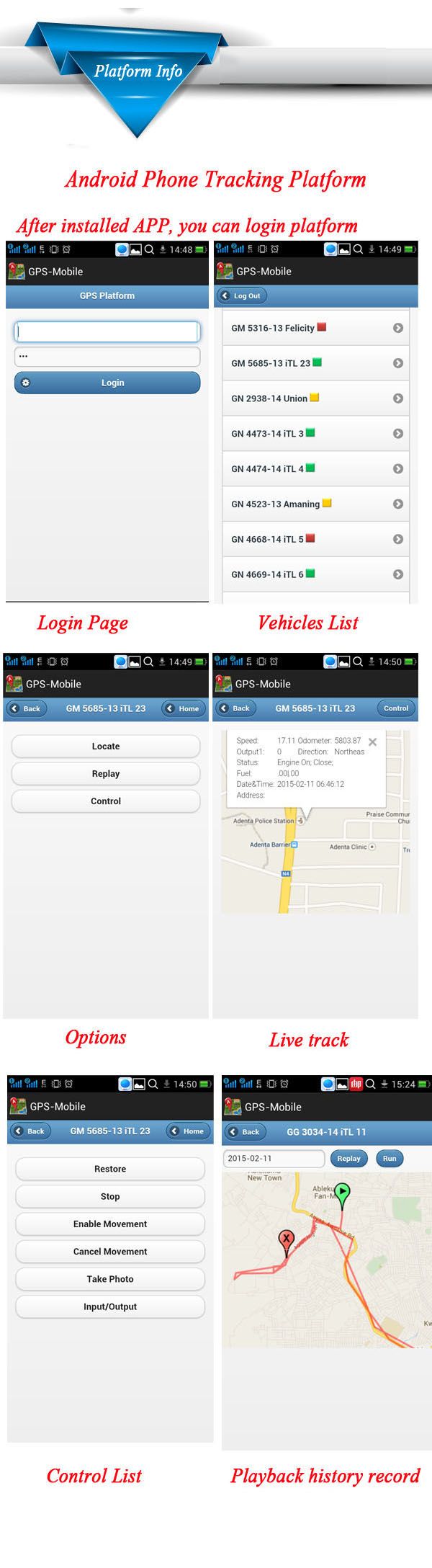

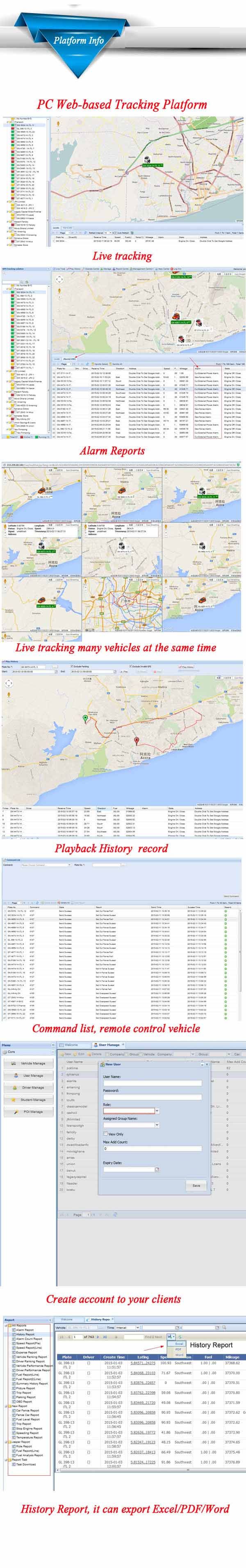

Topshine online free GPRS tracking softwareLink: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Topshine Advanced Solutions
It is welcome to help you customize a pecial product with your company advantage and unique.
Just keep us posted with your new ideas, our high experienced engineers will try their best to help you achieve.

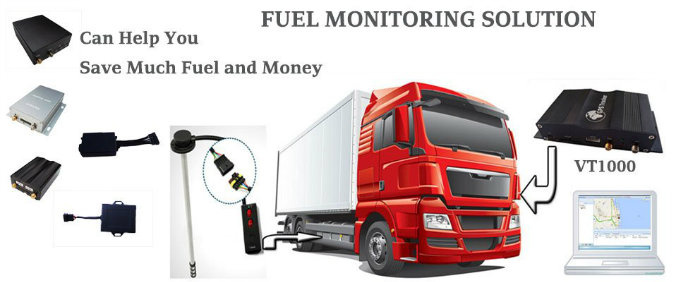

Fuel tracking solution: Monitor the fuel tank / capacity with SMS / GPRS alert.
Driver behavior management solution: harsh accelerate or braking, drive for private purposes, fuel stealing, idle alarm, task scheduling, etc.
