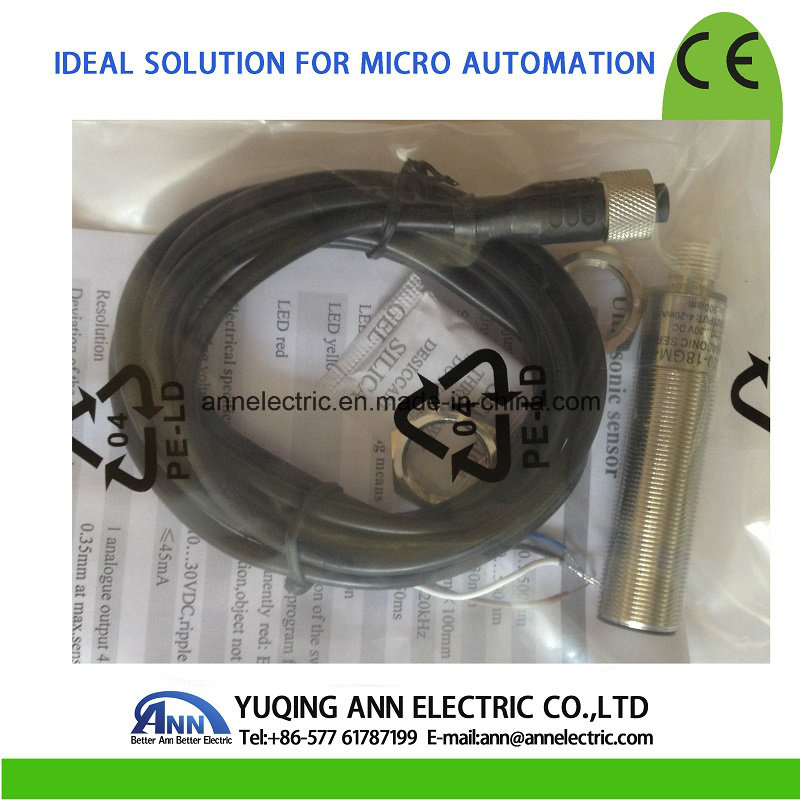

Ultrasonic Sensor, Ub500-18GM75-I-V1, Sensor

Technical data

General Specifications

Sensing distance                                       30…500mm

Adjustment range                                      50…500mm

Unusable area                                            0…30mm

Standard target plate                                  100mm×100mm

Transducer frequency                                About 255 kHz

Response delay                                          About 125ms

Indicators/Operating means

LED blue                                        Power on

LED yellow                                      indication of the switching

                                                        state Flashing:program

                                                        function object detected

LED red                                       permanently red: Error Red,

                                                     flashing:program function,

                                                     object not detected

Electrical specifications

Operating voltage UB                         10…30VDC,ripple10%ss

No-load supply current                       ≤45mA

Output

Output type                                1 analogue output 4…20mA

Resolution                                  0.35mm at max.sensing range

Deviation of the characteristic

curve                                                 ±1% of full-scale value

Repeat accuracy                                 ±0.1% of full-scale value

Load impedance                                 0...300 Ohm

Temperature influence                        ±1.5% of full-scale value

Ambient conditions

Ambient temperature                         -25…70°C

Storage temperature                            -40…85°C

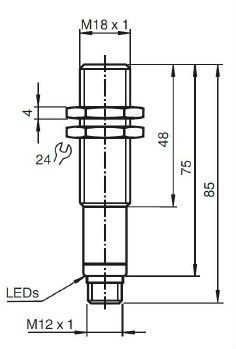

Mechanical specifications

Protection grade                                 IP67

Connection                                       Connector M12x1,4-PIN

Material

   Housing                                          brass,nickel-plated

Transducer                                       epoxy resin/hollow glass

                                          sphere mixture; Polyurethane foam
