Ultrasonic Transducer Ultrasonic Piezoelectric Transducer Ultrasonic Sensor Distance (FBELE)

Name: Ultrasonic Transducer Ultrasonic Piezoelectric Transducer Ultrasonic Sensor Distance (FBELE)
Brand: all-electronics-online.com
SKU: 776654265
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	US $ 0.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FBULS3040
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Detection Distance:	0.25~5m
Bandwidth:	6.0kHz
Usage:	Speed Sensor
Delivery Detail:	15days

Product Description

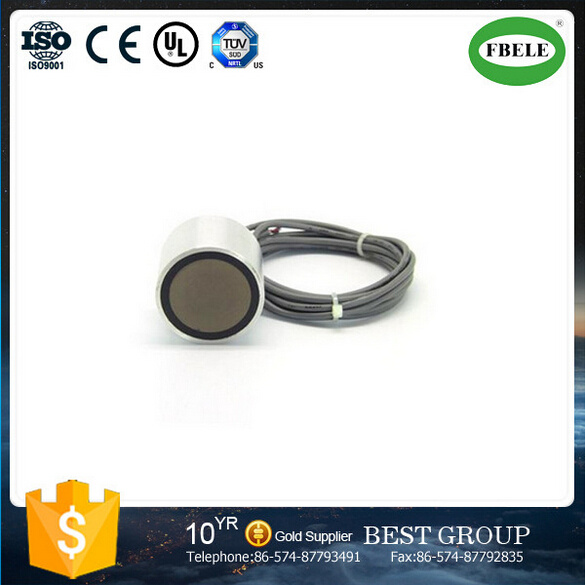

FBULS3040 ultrasonic transducer ultrasonic piezoelectric transducer ultrasonic sensor distance measuring module (FBELE)

Center resonant frequency (kHz)	80KHz±2.0Khz
Bandwidth	6.0Khz
Detection distance	0.25~5m
Blind spots	<0.25m
Launch angle beam (-6dB full angle)	40±2°
Sensitive	-60dB min
Electrostatic capacitance	1600PF±20%
Minimum parallel impedance	250Ω±30%
Maximum working voltage (Pulse - 2% duty cycle)	800Vp-p
Operating temperature	-20 ~80ºC
Storage temperature	-40 ~85ºC
Protection level	IP65
Size (diameter * height, mm)	Φ40x30
Installation	External cycle fixed
Case Material	Aluminum
Cable length	0.2m (can be customized)
Weight	80g

FBELE Company, (Ningbo Best Group Co., Ltd. ) are Chinese leading manufacturer and distributor in electronic components. We can offer quality products in very competitive price for electronics components, as well as best service, in time delivery, small order acceptable, etc.

Fast is our principle, our normal delivery time as below:

Sample delivery date is: 1-3days.

Production delivery time: 7-10days.

New product development: 15-20days

Our Company Advantage:

1, Reliability production

2, Famouse Brand "FBELE", Best Reputation

3, well experienced R&D engineer

4, Effective working Team

5, Aggressive Price

6, Constant New products

Don't hesitate, E-mail us immediately now.

You will get your best solution.
