| Prod Model: |
UMD-99 |
| Type: |
Magnetostrictive |

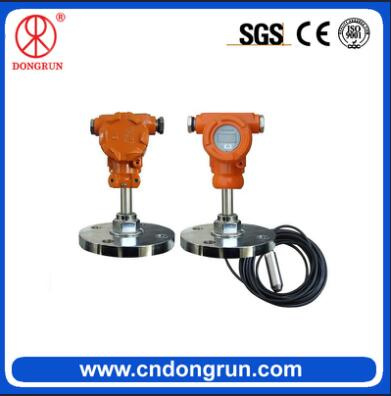

Product Description
Series UMD-99 static pressure transmitter can be divided into analog type and intelligent type. It is widely used in the liquid level measurement petroleum, chemical, electric power, metallurgy, environment protection, textile, water conservancy industries. The output signals can be used with many kinds of display instrument, DCS and PLC, etc. It can realize the remote display, regulation and alarm.
Key Features 1. High anti-overload and anti-strike capability, the overload can be up to 5 times of the measurement range.
2. High stability, better than 0.1% full range every year.
3.The temperature drift is small. Due to the cancellation of intermediary liquid in the measurement element, the sensor gets a high measurement accuracy. What's more, it is rarely affected by the temperature gradient: ±0.2% /10ºC.
4.Simple structure, small volume, light weight and easy to install and maintain.
5.Adopt ceramic and PTFE materials with anti-corrosion features. It can be used in most of the corrosive medium.
Technical Parameter
| Measurement range | A stainless steel lengthened rod type 0~5m
B cable type 0~200m
|
| Grade of System Accuracy | grade 0.2, grade 0.5 |
| Ambient Temperature | -20ºC~70ºC |
| Relative humidity | <95% |
| Operation Temperature | -20ºC~ +80ºC |
| Long-term Stability | <0.1%FS per year |
| Temperature Stability | <±0.1%/10ºC |
| Power Supply | 24VDC |
| Signal Output | two-wire 4~20mA |
| Density Range of the Medium | 0.5g/cm3~2.0g/cm3 |
| Overload Ability | 5 times of the standard measurement range |
| Protection Degree | Transmitter: IP65, sensor :IP68 |
| The Shell material of the transmitter | die-cast aluminum |
| The material of the sensor | the ordinary type: stainless steel
the corrosion-proof type: PTFE
|
| Connection Type | flange DN50PN0.6 or thread M48×2 |
| Explosion-proof Grade | ExiallCT4,intrinsically safe explosion-proof |
