Un38.3 12V 500ah LiFePO4 Solar Battery with Smart BMS

Name: Un38.3 12V 500ah LiFePO4 Solar Battery with Smart BMS
Brand: all-electronics-online.com
SKU: 791124825
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-12500
Certificates:	Ce,RoHS,UL,MSDS,Ice62133
Application:	Solar System,EV
Life Cycle:	Over 2000times
Battery Cell:	32650 3.2V 5ah LiFePO4 Battery Cell
Pack Tech:	Patent PCB Packed
Case:	Steel
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	500ah
Standard Voltage:	12V
Usage:	Solar System
Electrolyte:	LiFePO4

Product Description

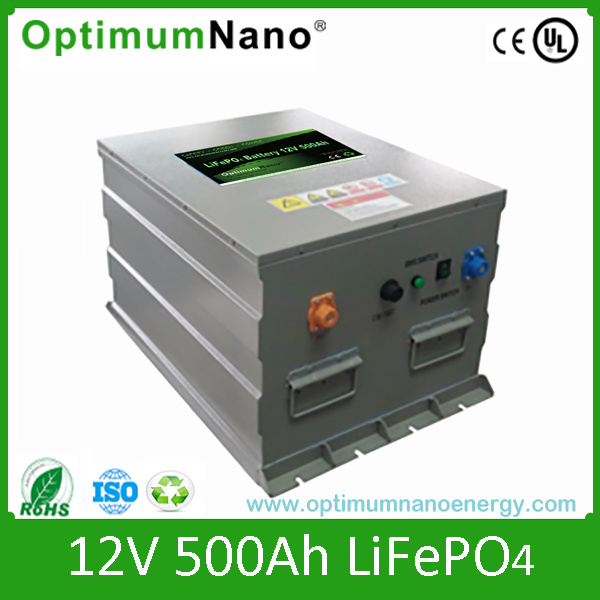

12v 500ah lifepo4 battery pack for solar power system

Specifiaction:

Electrical Charateristics

Nominal Voltage	12V
Nominal Capacity	500Ah(+- 5%)
Impedance (Max. at1000Hz)	≤50mΩ
Expected Cycle Life	2000 cycles

Mechanical Characteristics

Height	362±2mm
Width	440±2mm
Length	614±2mm
Weight	~72Kg

Operation Conditions

Charge Method	Constant Current/Constant Voltage (CC-CV)
Max. Charge Voltage	14.6V
Standard Charge Current	100A
Charge Temperature	0ºC~45ºC
Max. Continuous Discharge Current	200A
Peak Instant Discharge Current	300A,
Peak Instant Discharge Time	5 seconds
Discharge Cut-off Voltage	10.0V
Discharge Temperature	-20ºC~65ºC
Storage Temperature	-20ºC~45ºC

Advantages:

Attractive cycle life
Extended safety performance
Wide operating temperature range
Unrivalled high temperature performance
Green energy without metal contaminant
High capacity
Steady output voltage
Little self-discharge
Double safety protection
Withstanding very high level of vibrations and shocks

Safety Characteristics

Over-charge/Over-discharge Ability to withstand over-charge/withstand over-discharge, and there is no fire, no exploding and work well
Short circuit Ability to withstand short circuit, and there is no fire, no exploding
Acupuncture Ability to withstand nail puncturing, and there is no fire, no exploding
Thermal shock Ability to withstand thermal shock, and there is no fire, no exploding

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

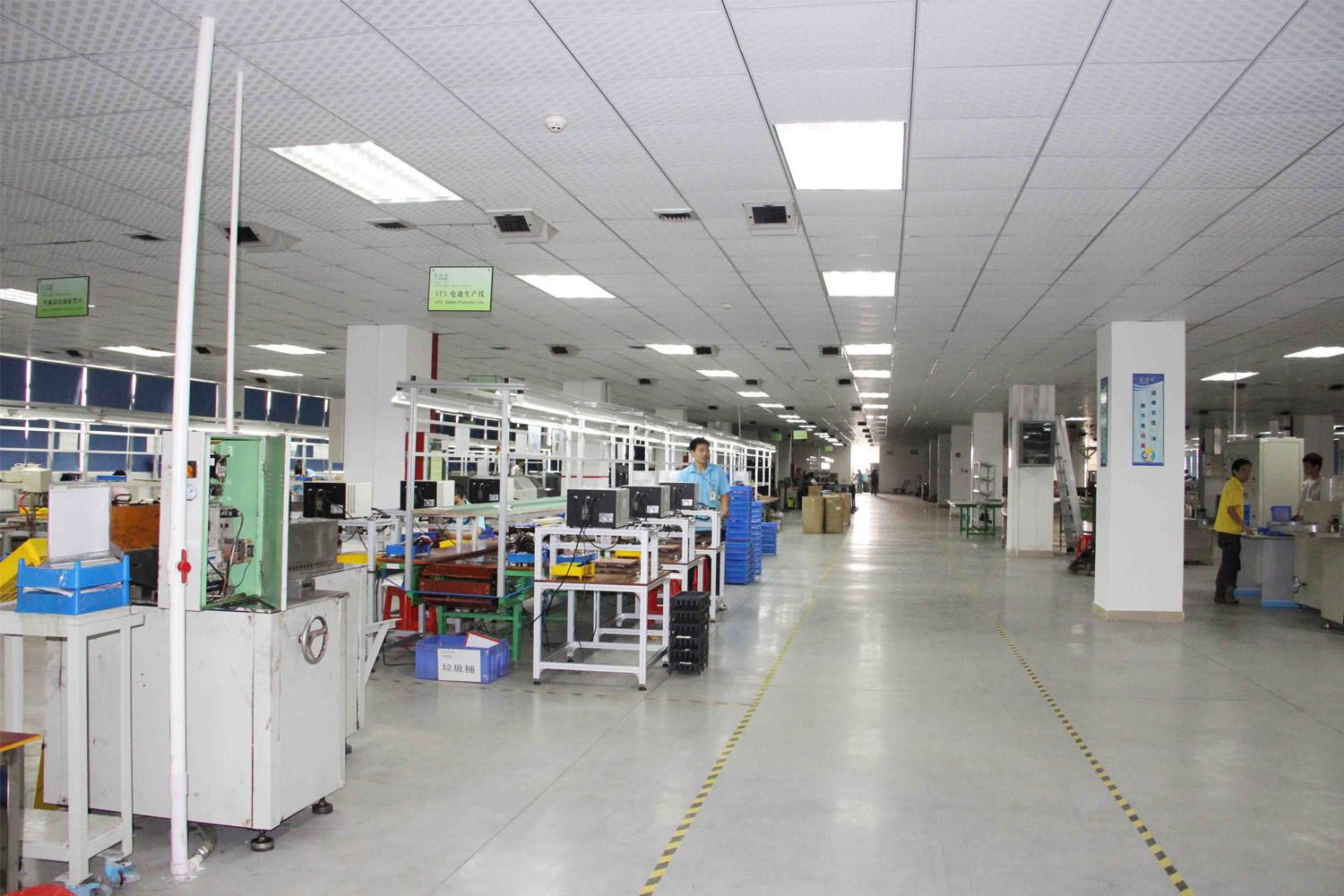

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
