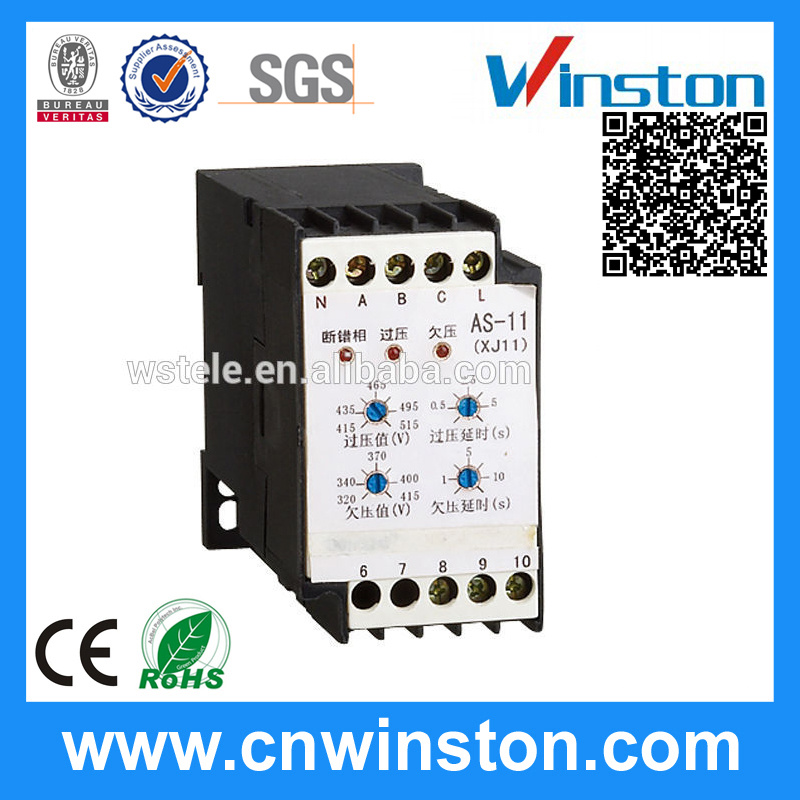

Under Voltage Failure Phase Sequence Protection Relay with CE

Under Voltage Failure Phase Sequence Protection Relay with CE
Price: US $ 9-12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: Xj3-D Xj11
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand: Winston
Protect Feature: Sealed
Contact Load: High Power
Contact Point: 1no+1nc
Contact Electrical Life: 10*10000times
Ambient Temp.: 10~40
Operating Voltage: Three Phase 380V 50Hz

Product Description


Specifications

XJ11(XJ3-D) Phase Failure and Phase Sequence Voltage Relay With overvoltage
1 Simple construction
2 Fast delive



Product Description
XJ11(XJ3-D) Phase Failure and Phase Sequence Voltage Relay With overvoltage and undervoltage protective functions


Technical parameters

Model XJ11 ,XJ3-D

Protection function 1.over voltage protection, 2.under voltage protection ,
3. phase failure protection, 4.phase sequence protection

Operation power 3-phase AC380v/220v, 50Hz/60 Hz

The range of voltage protection Under voltage protection: 300-380v

Over voltage protection: 380-460v

Delay time range actuating time of Under voltage protection: 2-9s

actuating time of Over voltage protection:1.5-4s

actuating time of phase failure and phase sequence
protection:2s/Max.

Reset Automatically reset

Contact capacity 5A AC380 v (resistance)

Power consumption ≤1w

Insulation resistance ≥100Mohm (20°C relative humidity 85% )

Contact resistance ≤0.03ohm
Electrical life 1×105 times

Ambient temperature -10C~+50C

Ambient humidity 85% (20±5
Dielectric strength No breakdown and flashover, under the condition of lasting to
operate power AC (50Hz )1500V for 1 minute.

Installation type 1. 35mm track mounting, 2. screw mounting on the back board

Model


XJ11 ,XJ3-D

Protection function


 1.over voltage protection,
 2.under voltage protection ,
 3. phase failure protection,
 4.phase sequence protection

Operation power
3-phase    AC380v/220v, 50Hz/60 Hz

The range of voltage protection


  Under voltage protection: 300-380v
  Over voltage protection: 380-460v

Delay time range

actuating time of Under voltage protection: 2-9s

 actuating time of Over voltage protection:1.5-4s

 actuating      time   of   phase    failure    and    phase     sequence
  protection:2s/Max.

Reset
  Automatically reset
Contact capacity                     5A    AC380   v   (resistance)
Power consumption                    ≤1w
Insulation resistance                ≥100Mohm (20°C relative humidity 85% )

Contact resistance


≤0.03ohm


Electrical life

 1×105 times

Ambient


temperature                  -10C~+50C
Ambient humidity              85%  (20±5

Dielectric strength

No    breakdown    and   flashover,  under   the  condition  of  lasting  to
             operate power AC  (50Hz )1500V for 1 minute.

Installation type

 1. 35mm track mounting, 2. screw mounting on the back board
