| Prod Model: |
S2305RF |
| Relay: |
Omron |
| Plastic: |
Flame Retardance ABS |
| Blacklight: |
Blue or Orange |
| Programmable: |
Non-Programmable |
Product Description

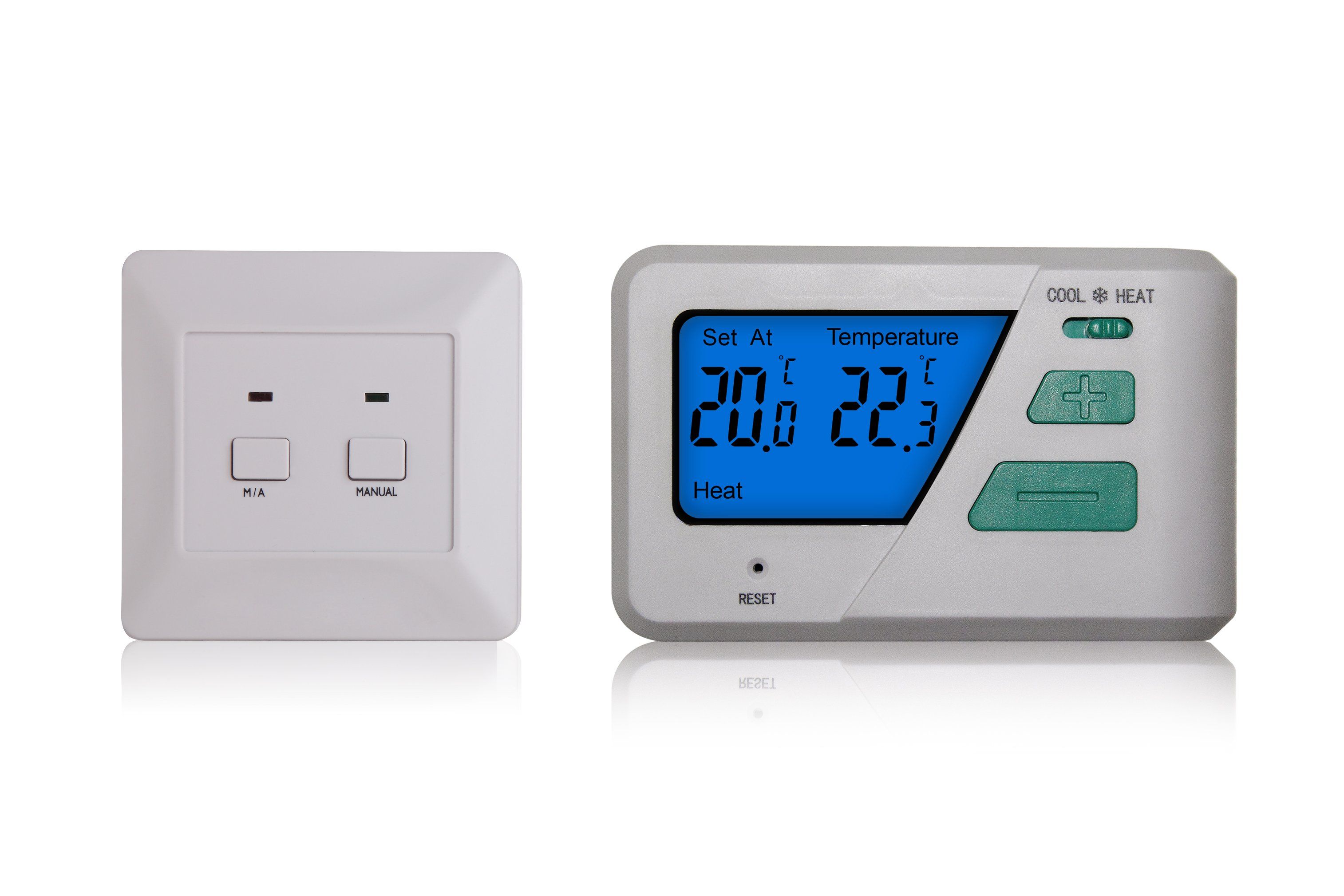

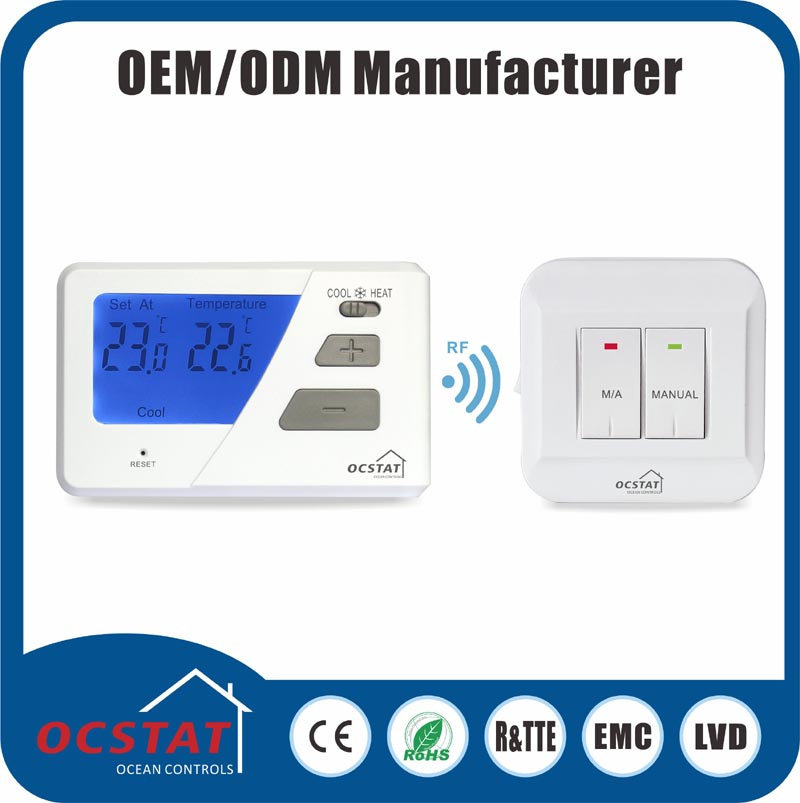

• Wireless Room Thermostat
Transmitter:
• 868Mhz with more stable communication
• Blue/green backlight
• HEAT (Heating) / COOL (Cooling) / OFF (Frost Protection)
• Wall mount or base mount
• Room Temperature Calibration adjustment (in -3~+3)
• Bat-low indicator
• Battery power supply
Receiver:
• AUTO/MANUAL Switch
• ON/OFF switch
• LED system indicator
• Power supply: 230V AC
• Contact rating:8(2)A 250VAC Max
| Model No.: | S2305 RF |
| Transmitter: | |
| Operating Frequency: | 868.35 MHz |
| Programmability: | Non-Programmable |
| Temperature Range (°C): | 0°C-40°C in 0.1°C |
| Control Temp.Range (°C): | 5°C-35°C in 0.5°C |
| Temp.Meas.Accuracy: | ±1°C (at 20°C) |
| Defrosting Temperature: | +7°C |
| Power Method: | 2 x AAA 1.5V Lithium batteries |
| Dimensions: | 118 x 80 x 26 mm
(without holder) |
| Receiver: | |
| Power Consumption: | 6W |
| Power Supply Voltage: | 230V AC, 50Hz |
| Switchable Current: | 6 A (2 A inductive load) |
| Transmission Distance: | approx. 50 m in open terrain |
| Dimensions: | 86 x 86 x 26 mm |
FAQ:
Q1. Can I get any discount?A1:The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, We offer you wholesale price. We also have promotions several times a year.Q2. How much are the shipping costs?A2:Shipping cost is charged by the package's weight and related to the shipping methods you choose and your destination.Q3. Do you offer samples?A3:You can buy 1pcs in first order to check the quality. then we send some other designs small cutting as samples with your order.Q4. How many styles for my select?A4:Many types for your choose or as per customized.Q5. I am a designer, Can you help me to produce the sample which we designed?A5:Many types for your choose or as per customized.Q6. Can you make OEM or ODM service?A6:Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our ODM products.Q7. Tell me your company's strength, because I want to place order to you.A7: Our company has a long-time experience in thermostats, also we have R&D team in thermostats,we have many famous clients around the world.Q8. Do you have some special policies for Brand company?A8:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year, so that we could support you the products in your market.
Ocean Controls Limited was founded by an industrial engineer with 10 years experience in the design and manufacturer of top-end electronic room thermostats.
We provide OEM/ODM services to worldwide customers, including manufacturing, design, engineering and tooling.
With many years of experience, our products feature unrivalled quality, reliability and durability. We export our products all over the world, especially to European and American markets. Currently our main products includ: Non-programmable/programmable thermostats, dial/push button/touchscreen thermostats, wired and wireless thermostats, we can also make timer, immersion/capillary thermostat and other related heating system control parts as per the customer's request. The products meet CE, R&TTE, FCC, UL and CSA approved quality standards.
Our factory has three sets of SMT, 10 sets of injection molding machine and advanced moulding equipments, Monthly capacity is more than 50, 000 PCS, and this can be expanded according to customer requirement.
We have a strong R&D team with more than 10 years experience in the thermostat field, They are seasoned in the design, develop and testing of electronic thermostats, HVAC controller and accessories. In addition, we have broad experience in RF remote control products like remote wireless thermostats. Based on the above, we can design/develop new models for you upon your technical specifications or samples.
As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.
