Underground 1.8KV 3KV XLPE Insulated Copper Tape Screen Electrical Cable

Name: Underground 1.8KV 3KV XLPE Insulated Copper Tape Screen Electrical Cable
Brand: all-electronics-online.com
SKU: 804086835
Availability: InStock
Rating: 4.4 (103 reviews)

Price:	US $ 0.01-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJV
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Application:	Power Supply
Range Of Application:	Power Supply
Brand:	Ronda

Product Description

Underground 1.8KV 3KV XLPE Insulated Copper Tape Screen Power Cable

1.Application.
For general purpose power distribution in dry or wet location.
Exposed in aerial, direct burial, conduit, open tray and underground duct installation.

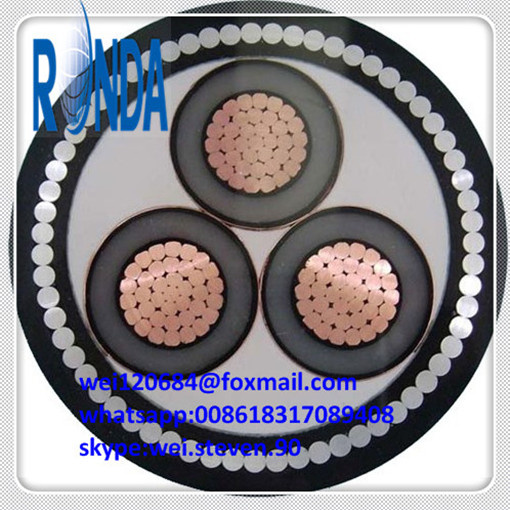

2.Construction:
1.Conductor:Circular Compact Stranded Annealed Copper
2.Cross-linked polyethene (XLPE) compound
3.Binding Tape: Polyester or spunbond tape.
4.Metallic Tape: Copper Tape
5.Binding Tape: Polyester Or Spunbond Tape
6.Sheath: Black Polyvinyl Chloride (PVC), (Optional PE)

Reference Standard:
IEC60502-1

Technical data
Temperature Range:
During Installation:-5 °C up to +70 °C
max. operating temp: +90 °C
at short circuit of max. 5 s:up to 250 °C
Minimal Inner Bending Radius: 15D

Established in the year of 1999, covering more than 100, 000 square meter, with total fixed assets of RMB 500 million, Shanghai Ronda Cable Group Co. Ltd is located in the Liantang Industrial Park, Qingpu District, Shanghai City, which is closed to Huqingping Highway, near to Hongqiao International Airport and is in the convenient and unique location.

Shanghai Ronda Cable Group Co., Ltd, the combination of R&D, trading, production and sale, is a large and comprehensive high-tech company including five wholly-owned subsidiaries as Ship Cable Company, High and Low Voltage Cable Company, Mining Cable Company, Prefabricated Branch Cable Company and Special Cable Company. It specializes in the R&D and production of power cable, control cable, rubber cable, ships and marine cable, solar energy photovoltaic cable, wind power cable, prefabricated branch cable, computer and compensation cable, and frequency cable, nuclear power plant cable etc.
