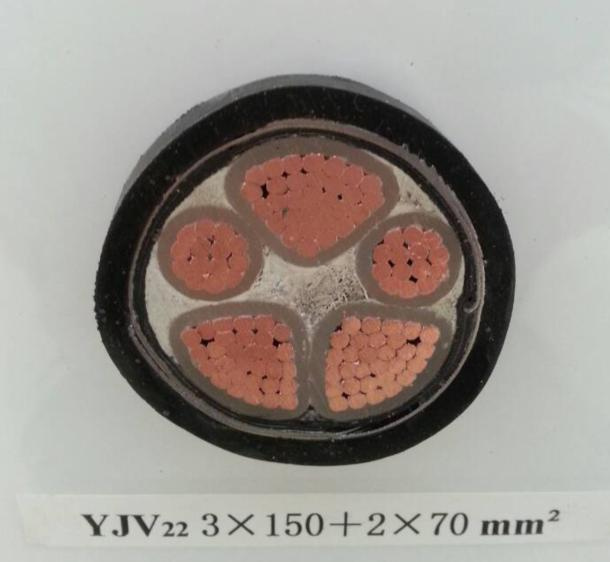

Underground Armored XLPE Insulated Copper Electrical Cable

Name: Underground Armored XLPE Insulated Copper Electrical Cable
Brand: all-electronics-online.com
SKU: 813671025
Availability: InStock
Rating: 4.3 (85 reviews)

Price:	US $ 0.75-50/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	yjv22
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CCC
Brand:	Yongkuntai

Product Description

1.Application
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, switching blocks, in electric power plants and industrial plants. To avoid the effects of external impact, the adhering semi-conductive layer extruded between conductor and insulation, along with concentric copper conductor, secures restriction of electric field and resistance to partial discharges.

Standards:
IEC60502-2

Construction
Conductor:Cu round conductor, multi wire stranded compacted (RM), class 2 acc. to IEC 60228
Inner Screen:extruded semi-conductive skin on conductor
Insulation:XLPE (cross-linked polyethylene, recent mark: PE-X)
External Screen:extruded semi-conductive skin on insulation, longitudinally spliced with insulation (+ tape of conductive material)
Concentric Conductor:in inner layer corrugated spirally wrapped copper wires, in external layer copper tape wrapped in counter-helix
Sepeating Tape Sheath:PVC compound
Sheath Colour: Black

Technical data
Temperature Range:
During Installation:-5 °C up to +70 °C
max. operating temp: +90 °C
at short circuit of max. 5 s:up to 250 °C
Minimal Inner Bending Radius: 15D
Max More
Sales Manager
Shenzhen Jixing Electric Wire&Cable Co.,Ltd
C: +86 152 6711 6231
T:+0755 2753 6065
F: +0755 2753 6067

W: www.jxdx.en.alibaba.com

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.

Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retardant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friengdly LSOH 28 varieties, more thatn 6400 specifications, products are sold to foreign markets, the majority of users praise.

Company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.

Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.

Set-Cable, set the staff for their hard work, set the quality of the excellent market reputation set, set of strict management, be able beachhead on the road to development, courage.
