Underwater 35mm2 Copper Electrical Cable
| Price: |
US $ 9.9-15.4/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
power cable |
| Product Name: |
Underwater 35mm2 Copper Electrical Cable |
| Type Of Comanpy: |
Manufacturer |
| Number Of Cores: |
1, 2, 3, 4, 5, 2+1, 3+2 |
| Related Voltage: |
0.6/1kv; 8.7/15kv; 12/20kv; 21/35kv; 26/35kv |
| Cable Type: |
with Armoring or Without Armoring |
| Product Model: |
VV, Vlv, Yjv, Yjlv, Yjv22, Yjlv22, Yjv32, Yjlv32.. |
| Standard: |
GB-T12706-2008; IEC 60502 |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Package: |
Wooden Drum, Steel Drum or as Your Requirement |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Wire Core Material: |
Aluminium |
| Brand: |
Rmjt |
Product Description
Underwater 35mm2 copper electrical cable
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.
Flame-retardant and non-flame-retardant XLPE cables can be manufactured by three kinds of technological processes: peroxidation, silanization and irradiation. The flame-retardant cable covers three classes of A, B, C and low-smoke low-halogen, low-smoke non-halogen cables.
Our XLPE cable are produced according to IEC 60502, IEC60332, and IEC 60754, even some of our indexes are superior to the above international IEC standards. Meanwhile, we can produce cables according to other standards and can design the XLPE cables with some certain special properties according to customers' requirements.
XLPE cable can be applied in high temperature for a long time and has bigger current capacity. In the same environment conditions, compared with paper insulated and PVC insulated cables, XLPE cable can lessen the cross section by 1 or 2 grades.
We can make it according to: IEC,BS,VDE,AS/NZS,ICEA,JIS and so on;
1)0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Diameter of Al Wires | Nominal Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| Cu Conductor | Al Conductor |
| AWA | AWA | UnAr | AWA | UnAr | AWA | UnAr | AWA | UnAr | AWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | - | - | 1.4 | - | 5.7 | - | 44 | - | - | - |
| 2.5 | 2.0 | 0.7 | - | - | 1.4 | - | 6.2 | - | 57 | - | - | - |
| 4 | 2.6 | 0.7 | - | - | 1.4 | - | 6.7 | - | 74 | - | - | - |
| 6 | 3.1 | 0.7 | - | - | 1.4 | - | 7.3 | - | 96 | - | - | - |
| 10 | 3.8 | 0.7 | 1.0 | 0.8 | 1.4 | 1.4 | 7.9 | 12.4 | 134 | 235 | 74 | 175 |
| 16 | 4.8 | 0.7 | 1.0 | 0.8 | 1.4 | 1.4 | 8.9 | 13.4 | 196 | 307 | 99 | 209 |
| 25 | 6.0 | 0.9 | 1.0 | 0.8 | 1.4 | 1.4 | 10.6 | 15.1 | 289 | 417 | 139 | 267 |
| 35 | 7.1 | 0.9 | 1.0 | 0.8 | 1.4 | 1.4 | 11.7 | 16.2 | 382 | 522 | 172 | 309 |
| 50 | 8.4 | 1.0 | 1.0 | 1.25 | 1.4 | 1.5 | 13.2 | 18.7 | 503 | 710 | 220 | 427 |
| 70 | 10.0 | 1.1 | 1.0 | 1.25 | 1.4 | 1.5 | 15.0 | 20.5 | 702 | 936 | 293 | 522 |
| 95 | 11.7 | 1.1 | 1.0 | 1.25 | 1.5 | 1.5 | 16.8 | 22.4 | 950 | 1209 | 384 | 638 |
| 120 | 13.3 | 1.2 | 1.0 | 1.6 | 1.5 | 1.6 | 18.6 | 25.1 | 1186 | 1531 | 469 | 806 |
| 150 | 14.5 | 1.4 | 1.0 | 1.6 | 1.5 | 1.6 | 20.4 | 26.7 | 1458 | 1820 | 567 | 923 |
| 185 | 16.4 | 1.6 | 1.0 | 1.6 | 1.5 | 1.7 | 22.7 | 29.2 | 1810 | 2219 | 698 | 1105 |
| 240 | 18.7 | 1.7 | 1.0 | 1.6 | 1.6 | 1.8 | 25.4 | 31.9 | 2348 | 2802 | 889 | 1335 |
| 300 | 20.4 | 1.8 | 1.0 | 1.6 | 1.7 | 1.8 | 27.4 | 33.7 | 2917 | 3393 | 1091 | 1568 |
| 400 | 23.2 | 2.0 | 1.2 | 2.0 | 1.8 | 2.0 | 30.9 | 38.5 | 3713 | 4377 | 1379 | 2043 |
| 500 | 26.4 | 2.2 | 1.2 | 2.0 | 1.9 | 2.1 | 34.7 | 42.3 | 4770 | 5512 | 1767 | 2510 |
| 630 | 30.0 | 2.4 | 1.2 | 2.0 | 2.1 | 2.2 | 39.1 | 46.5 | 6105 | 6914 | 2248 | 3058 |
| 800 | 34.0 | 2.6 | 1.4 | 2.5 | 2.2 | 2.4 | 43.6 | 52.6 | 7893 | 9008 | 2867 | 3981 |
| 1000 | 41.4 | 2.8 | 1.4 | 2.5 | 2.3 | 2.5 | 51.6 | 60.8 | 10189 | 11524 | 3690 | 5025 |
(2) 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 10.2 | 13.0 | 14.7 | 110 | 227 | 325 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.2 | 14.0 | 15.7 | 142 | 270 | 378 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.2 | 15.0 | 16.7 | 181 | 321 | 438 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 13.4 | 16.2 | 17.9 | 233 | 386 | 516 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.3 | 1.7 | 1.5 | 1.7 | 14.8 | 17.6 | 20.2 | 315 | 483 | 763 | 194 | 363 | 643 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.3 | 1.7 | 1.5 | 1.7 | 16.9 | 19.6 | 22.3 | 455 | 646 | 963 | 259 | 450 | 767 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 20.2 | 23.0 | 26.3 | 646 | 892 | 1413 | 363 | 591 | 1112 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 22.5 | 25.2 | 28.6 | 857 | 1110 | 1682 | 434 | 683 | 1242 |
| 50 | 8.4 | 1.0 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 25.6 | 28.3 | 31.7 | 1123 | 1411 | 2061 | 555 | 838 | 1474 |
| 70 | 10.0 | 1.1 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.9 | 22.7 | 25.6 | 29.1 | 1427 | 1692 | 2295 | 591 | 836 | 1382 |
| 95 | 11.7 | 1.1 | 1.2 | 1.2 | 0.2 | 2.0 | 1.9 | 1.7 | 2.0 | 25.8 | 28.6 | 33.3 | 1935 | 2222 | 3132 | 782 | 1050 | 1914 |
| 120 | 13.3 | 1.2 | 1.2 | 1.2 | 0.5 | 2.0 | 2.0 | 1.9 | 2.1 | 29.2 | 33.6 | 36.7 | 2431 | 3072 | 3777 | 971 | 1573 | 2226 |
| 150 | 14.5 | 1.4 | 1.3 | 1.2 | 0.5 | 2.0 | 2.1 | 2.0 | 2.2 | 31.9 | 36.5 | 39.3 | 2984 | 3696 | 4450 | 1171 | 1845 | 2545 |
| 185 | 16.4 | 1.6 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.1 | 2.4 | 36.5 | 41.2 | 45.4 | 3721 | 4545 | 5840 | 1461 | 2246 | 3442 |
| 240 | 18.7 | 1.7 | 1.4 | 1.4 | 0.5 | 2.5 | 2.4 | 2.2 | 2.5 | 41.3 | 46.0 | 50.3 | 4841 | 5770 | 7190 | 1924 | 2852 | 4272 |
| 300 | 20.4 | 1.8 | 1.5 | 1.5 | 0.5 | 2.5 | 2.5 | 2.4 | 2.6 | 44.7 | 49.6 | 53.8 | 6023 | 7041 | 8575 | 2363 | 3381 | 4915 |
(3)0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 10.7 | 13.5 | 15.2 | 130 | 253 | 355 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.7 | 14.5 | 16.2 | 173 | 308 | 420 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.9 | 15.7 | 17.4 | 227 | 374 | 500 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 14.1 | 16.9 | 18.6 | 297 | 458 | 596 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.7 | 18.4 | 21.1 | 413 | 591 | 886 | 236 | 414 | 709 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 17.9 | 20.7 | 23.3 | 609 | 811 | 1142 | 314 | 517 | 847 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 21.5 | 24.3 | 27.6 | 903 | 1145 | 1691 | 451 | 694 | 1240 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 23.9 | 26.7 | 30.0 | 1187 | 1456 | 2068 | 550 | 814 | 1413 |
| 50 | 8.4 | 1.0 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.8 | 27.3 | 30.2 | 33.6 | 1563 | 1881 | 2571 | 712 | 1025 | 1701 |
| 70 | 10.0 | 1.1 | 1.2 | 1.2 | 0.2 | 2.0 | 1.8 | 1.7 | 1.9 | 26.4 | 29.4 | 33.9 | 2097 | 2403 | 3321 | 849 | 1133 | 1981 |
| 95 | 11.7 | 1.1 | 1.2 | 1.2 | 0.5 | 2.0 | 1.9 | 2.0 | 2.2 | 29.8 | 34.6 | 37.6 | 2834 | 3517 | 4238 | 1111 | 1751 | 2420 |
| 120 | 13.3 | 1.2 | 1.3 | 1.4 | 0.5 | 2.5 | 2.0 | 2.0 | 2.3 | 33.2 | 38.2 | 42.4 | 3560 | 4332 | 5510 | 1377 | 2105 | 3226 |
| 150 | 14.5 | 1.4 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.0 | 2.4 | 37.9 | 42.5 | 46.9 | 4406 | 5247 | 6577 | 1693 | 2492 | 3762 |
| 185 | 16.4 | 1.6 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.2 | 2.5 | 42.9 | 47.8 | 52.1 | 5491 | 6476 | 7960 | 2109 | 3050 | 4473 |
| 240 | 18.7 | 1.7 | 1.5 | 1.5 | 0.5 | 2.5 | 2.4 | 2.4 | 2.6 | 48.0 | 53.1 | 57.4 | 7144 | 8261 | 9914 | 2707 | 3779 | 5368 |
| 300 | 20.4 | 1.8 | 1.5 | 1.5 | 0.5 | 2.5 | 2.6 | 2.5 | 2.8 | 52.5 | 57.5 | 61.8 | 8903 | 10119 | 11914 | 3337 | 4508 | 6235 |
(4)0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+E Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Cross Section of Earth Conductor | Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| mm2 | mm | mm | mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 1.5 | 1.6 | 0.7 | 1.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.5 | 14.3 | 16.0 | 156 | 288 | 398 | - | - | - |
| 2.5 | 2.0 | 0.7 | 2.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.7 | 15.4 | 17.2 | 211 | 355 | 478 | - | - | - |
| 4 | 2.6 | 0.7 | 4 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 13.9 | 16.7 | 19.3 | 279 | 438 | 704 | - | - | - |
| 6 | 3.1 | 0.7 | 6 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.4 | 18.1 | 20.8 | 370 | 544 | 831 | - | - | - |
| 10 | 3.8 | 0.7 | 10 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 17.1 | 19.8 | 22.5 | 527 | 720 | 1036 | 286 | 479 | 795 |
| 16 | 4.8 | 0.7 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 19.5 | 22.3 | 25.6 | 778 | 999 | 1509 | 386 | 607 | 1116 |
| 25 | 6.0 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 22.6 | 25.4 | 28.7 | 1064 | 1318 | 1890 | 514 | 769 | 1340 |
| 35 | 7.1 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 24.6 | 27.4 | 30.7 | 1340 | 1617 | 2241 | 610 | 883 | 1509 |
| 50 | 8.4 | 1.0 | 25 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.8 | 28.4 | 31.4 | 34.7 | 1808 | 2139 | 2870 | 807 | 1134 | 1851 |
| 70 | 10.0 | 1.1 | 35 | 1.2 | 1.2 | 0.2 | 2.0 | 1.8 | 1.7 | 2.0 | 29.7 | 32.6 | 37.3 | 2446 | 2789 | 3831 | 988 | 1309 | 2280 |
| 95 | 11.7 | 1.1 | 50 | 1.2 | 1.2 | 0.5 | 2.0 | 2.0 | 1.9 | 2.1 | 33.7 | 38.1 | 41.1 | 3313 | 4049 | 4865 | 1307 | 2000 | 2764 |
| 120 | 13.3 | 1.2 | 70 | 1.3 | 1.2 | 0.5 | 2.0 | 2.1 | 2.0 | 2.3 | 36.3 | 40.9 | 43.9 | 4223 | 5033 | 5913 | 1631 | 2396 | 3223 |
| 150 | 14.5 | 1.4 | 70 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.1 | 2.4 | 41.3 | 46.0 | 50.2 | 5061 | 5993 | 7415 | 1940 | 2826 | 4190 |
| 185 | 16.4 | 1.6 | 95 | 1.4 | 1.4 | 0.5 | 2.5 | 2.4 | 2.2 | 2.5 | 46.6 | 51.4 | 55.6 | 6400 | 7446 | 9076 | 2453 | 3454 | 4983 |
| 240 | 18.7 | 1.7 | 120 | 1.5 | 1.5 | 0.5 | 2.5 | 2.5 | 2.4 | 2.7 | 52.4 | 57.3 | 61.8 | 8291 | 9484 | 11337 | 3137 | 4284 | 6032 |
| 300 | 20.4 | 1.8 | 150 | 1.5 | 1.5 | 0.5 | 2.5 | 2.7 | 2.6 | 2.8 | 58.0 | 63.0 | 67.1 | 10322 | 11659 | 13632 | 3864 | 5155 | 7058 |
(5)0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable; | Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 11.5 | 14.3 | 16.0 | 156 | 288 | 398 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.7 | 15.4 | 17.2 | 211 | 355 | 478 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 13.9 | 16.7 | 19.3 | 279 | 438 | 704 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.4 | 18.1 | 20.8 | 370 | 544 | 831 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 17.1 | 19.8 | 22.5 | 527 | 720 | 1036 | 286 | 479 | 795 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 19.5 | 22.3 | 25.6 | 778 | 999 | 1509 | 386 | 607 | 1116 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 23.6 | 26.4 | 29.7 | 1161 | 1427 | 2025 | 559 | 825 | 1423 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.8 | 26.3 | 29.1 | 32.6 | 1533 | 1828 | 2519 | 690 | 981 | 1658 |
| 50 | 8.4 | 1.0 | 1.2 | 1.0 | 0.2 | 2.0 | 1.7 | 1.6 | 1.9 | 30.1 | 33.0 | 37.3 | 2029 | 2379 | 3410 | 890 | 1235 | 2243 |
| 70 | 10.0 | 1.1 | 1.2 | 1.2 | 0.5 | 2.0 | 1.8 | 1.7 | 2.1 | 30.7 | 35.2 | 38.5 | 2764 | 3443 | 4222 | 1104 | 1739 | 2467 |
| 95 | 11.7 | 1.1 | 1.2 | 1.2 | 0.5 | 2.0 | 1.9 | 2.0 | 2.2 | 35.3 | 40.1 | 43.1 | 3746 | 4551 | 5417 | 1454 | 2212 | 3026 |
| 120 | 13.3 | 1.2 | 1.3 | 1.4 | 0.5 | 2.5 | 2.0 | 2.0 | 2.4 | 38.0 | 43.0 | 47.4 | 4697 | 5578 | 6942 | 1790 | 2624 | 3890 |
| 150 | 14.5 | 1.4 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.0 | 2.4 | 43.8 | 48.4 | 52.9 | 5816 | 6785 | 8368 | 2203 | 3126 | 4609 |
| 185 | 16.4 | 1.6 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.2 | 2.6 | 48.2 | 53.1 | 57.5 | 7239 | 8342 | 10050 | 2734 | 3791 | 5395 |
| 240 | 18.7 | 1.7 | 1.5 | 1.5 | 0.5 | 2.5 | 2.4 | 2.4 | 2.8 | 53.9 | 59.0 | 63.6 | 9424 | 10676 | 12612 | 3514 | 4718 | 6545 |
| 300 | 20.4 | 1.8 | 1.5 | 1.5 | 0.5 | 2.5 | 2.5 | 2.5 | 3.0 | 61.5 | 66.6 | 71.2 | 11782 | 13205 | 15361 | 4366 | 5742 | 7824 |
(6)0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4C+E Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Cross Section of Earth Conductor | Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.3 | 15.1 | 16.8 | 182 | 324 | 444 | - | - | - |
| 2.5 | 2.0 | 0.7 | 2.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 13.7 | 16.4 | 18.2 | 249 | 404 | 537 | - | - | - |
| 4 | 2.6 | 0.7 | 4 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.1 | 17.9 | 20.5 | 334 | 506 | 784 | - | - | - |
| 6 | 3.1 | 0.7 | 6 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 16.7 | 19.5 | 22.1 | 446 | 635 | 944 | - | - | - |
| 10 | 3.8 | 0.7 | 10 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 18.6 | 21.3 | 24.0 | 636 | 846 | 1192 | 335 | 545 | 891 |
| 16 | 4.8 | 0.7 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 21.3 | 24.1 | 27.4 | 953 | 1194 | 1741 | 463 | 704 | 1251 |
| 25 | 6.0 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 24.9 | 27.7 | 31.0 | 1337 | 1618 | 2255 | 621 | 901 | 1539 |
| 35 | 7.1 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.8 | 27.4 | 30.4 | 33.7 | 1709 | 2028 | 2733 | 753 | 1068 | 1759 |
| 50 | 8.4 | 1.0 | 25 | 1.2 | 1.2 | 0.2 | 2.0 | 1.8 | 1.7 | 2.0 | 31.8 | 34.8 | 39.4 | 2313 | 2681 | 3808 | 1009 | 1372 | 2476 |
| 70 | 10.0 | 1.1 | 35 | 1.2 | 1.2 | 0.5 | 2.0 | 2.0 | 1.9 | 2.1 | 33.2 | 37.6 | 40.7 | 3129 | 3857 | 4653 | 1340 | 2127 | 3000 |
| 95 | 11.7 | 1.1 | 50 | 1.3 | 1.2 | 0.5 | 2.0 | 2.1 | 2.0 | 2.3 | 37.6 | 42.2 | 45.2 | 4226 | 5064 | 5975 | 1755 | 2658 | 3616 |
| 120 | 13.3 | 1.2 | 70 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.1 | 2.4 | 42.3 | 47.0 | 51.1 | 5402 | 6356 | 7786 | 2244 | 3291 | 4882 |
| 150 | 14.5 | 1.4 | 70 | 1.4 | 1.4 | 0.5 | 2.5 | 2.4 | 2.2 | 2.5 | 45.7 | 50.4 | 54.7 | 6489 | 7515 | 9080 | 2641 | 3779 | 5532 |
| 185 | 16.4 | 1.6 | 95 | 1.5 | 1.5 | 0.5 | 2.5 | 2.5 | 2.4 | 2.7 | 50.6 | 55.5 | 59.9 | 8171 | 9323 | 11084 | 3329 | 4625 | 6592 |
| 240 | 18.7 | 1.7 | 120 | 1.6 | 1.5 | 0.5 | 2.5 | 2.7 | 2.6 | 2.9 | 57.0 | 62.2 | 66.3 | 10599 | 11940 | 13888 | 4233 | 5738 | 7873 |
| 300 | 20.4 | 1.8 | 150 | 1.7 | 1.5 | 0.5 | 3.15 | 2.9 | 2.8 | 3.1 | 63.3 | 68.9 | 74.0 | 13205 | 14742 | 17671 | 5200 | 6914 | 10136 |
(7)0.6/ 1kV ,Five Cores ,Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;| Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.3 | 15.1 | 16.8 | 182 | 324 | 444 | - | - | - |
| 2.5 | 2.0 | 0.7 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 13.7 | 16.4 | 18.2 | 249 | 404 | 537 | - | - | - |
| 4 | 2.6 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.1 | 17.9 | 20.5 | 334 | 506 | 784 | - | - | - |
| 6 | 3.1 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 16.7 | 19.5 | 22.1 | 446 | 635 | 944 | - | - | - |
| 10 | 3.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 18.6 | 21.3 | 24.0 | 636 | 846 | 1192 | 335 | 545 | 891 |
| 16 | 4.8 | 0.7 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 21.3 | 24.1 | 27.4 | 953 | 1194 | 1741 | 463 | 704 | 1251 |
| 25 | 6.0 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 25.8 | 28.6 | 31.9 | 1411 | 1701 | 2366 | 658 | 949 | 1614 |
| 35 | 7.1 | 0.9 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.6 | 1.8 | 28.9 | 31.9 | 35.2 | 1889 | 2226 | 2954 | 832 | 1163 | 1878 |
| 50 | 8.4 | 1.0 | 1.2 | 1.2 | 0.2 | 2.0 | 1.9 | 1.8 | 2.0 | 33.4 | 36.4 | 40.9 | 2498 | 2883 | 4040 | 1110 | 1489 | 2623 |
| 70 | 10.0 | 1.1 | 1.2 | 1.2 | 0.5 | 2.0 | 2.0 | 1.9 | 2.2 | 36.6 | 41.1 | 44.3 | 3470 | 4271 | 5184 | 1471 | 2296 | 3211 |
| 95 | 11.7 | 1.1 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.0 | 2.3 | 41.3 | 45.9 | 50.1 | 4706 | 5621 | 7080 | 1940 | 2883 | 4353 |
| 120 | 13.3 | 1.2 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.2 | 2.4 | 45.9 | 50.8 | 54.9 | 5910 | 6962 | 8538 | 2426 | 3533 | 5179 |
| 150 | 14.5 | 1.4 | 1.5 | 1.4 | 0.5 | 2.5 | 2.4 | 2.3 | 2.6 | 51.5 | 56.4 | 60.5 | 7299 | 8476 | 10212 | 2948 | 4178 | 5981 |
| 185 | 16.4 | 1.6 | 1.5 | 1.5 | 0.5 | 2.5 | 2.6 | 2.5 | 2.8 | 56.5 | 61.6 | 65.9 | 9097 | 10407 | 12338 | 3685 | 5084 | 7136 |
| 240 | 18.7 | 1.7 | 1.6 | 1.5 | 0.5 | 2.5 | 2.8 | 2.7 | 3.0 | 63.8 | 69.2 | 73.2 | 11840 | 13363 | 15505 | 4704 | 6322 | 8574 |
| 300 | 20.4 | 1.8 | 1.7 | 1.7 | 0.5 | 3.15 | 3.0 | 2.9 | 3.2 | 70.7 | 76.3 | 81.7 | 14765 | 16474 | 19793 | 5783 | 7591 | 11067 |
(8)0.6/ 1kV ,3C+2E Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2E Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable; | Nominal Cross Section | Approx. Overall Diameter of Conductor | Nominal Thickness of XLPE Insulation | Nominal Cross Section of Earth Conductor | Nominal Thickness of PVC Inner Sheath | Thickness of Steel Tape or Diameter of Steel Wire | Thickness of PVC Outer Sheath | Approx.Overall Diameter | Approx. Weight Cable |
| Cu Conductor | Al Conductor |
| STA | SWA | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA | UnAr | STA | SWA |
| mm2 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | kg/km | kg/km | kg/km | kg/km |
| 1.5 | 1.6 | 0.7 | 1.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 12.3 | 15.1 | 16.8 | 182 | 324 | 444 | - | - | - |
| 2.5 | 2.0 | 0.7 | 2.5 | 1.2 | 1.0 | 0.2 | 0.8 | 1.7 | 1.5 | 1.7 | 13.7 | 16.4 | 18.2 | 249 | 404 | 537 | - | - | - |
| 4 | 2.6 | 0.7 | 4 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 15.1 | 17.9 | 20.5 | 334 | 506 | 784 | - | - | - |
| 6 | 3.1 | 0.7 | 6 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 16.7 | 19.5 | 22.1 | 446 | 635 | 944 | - | - | - |
| 10 | 3.8 | 0.7 | 10 | 1.2 | 1.0 | 0.2 | 1.25 | 1.7 | 1.5 | 1.7 | 18.6 | 21.3 | 24.0 | 636 | 846 | 1192 | 335 | 545 | 891 |
| 16 | 4.8 | 0.7 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 21.3 | 24.1 | 27.4 | 953 | 1194 | 1741 | 463 | 704 | 1251 |
| 25 | 6.0 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 24.0 | 26.8 | 30.1 | 1234 | 1505 | 2116 | 578 | 849 | 1460 |
| 35 | 7.1 | 0.9 | 16 | 1.2 | 1.0 | 0.2 | 1.6 | 1.7 | 1.5 | 1.7 | 25.9 | 28.7 | 32.0 | 1506 | 1797 | 2462 | 679 | 966 | 1617 |
| 50 | 8.4 | 1.0 | 25 | 1.2 | 1.0 | 0.2 | 1.6 | 1.8 | 1.7 | 1.9 | 30.4 | 33.3 | 36.6 | 2078 | 2429 | 3200 | 922 | 1269 | 2027 |
| 70 | 10.0 | 1.1 | 35 | 1.2 | 1.2 | 0.5 | 2.0 | 1.9 | 1.8 | 2.0 | 32.3 | 36.7 | 39.7 | 2817 | 3527 | 4307 | 1201 | 1950 | 2773 |
| 95 | 11.7 | 1.1 | 50 | 1.2 | 1.2 | 0.5 | 2.0 | 2.1 | 2.0 | 2.2 | 36.6 | 41.0 | 44.0 | 3813 | 4611 | 5487 | 1593 | 2436 | 3348 |
| 120 | 13.3 | 1.2 | 70 | 1.3 | 1.4 | 0.5 | 2.5 | 2.2 | 2.0 | 2.4 | 41.9 | 46.5 | 50.9 | 4967 | 5894 | 7365 | 2044 | 3027 | 4569 |
| 150 | 14.5 | 1.4 | 70 | 1.4 | 1.4 | 0.5 | 2.5 | 2.3 | 2.1 | 2.4 | 44.7 | 49.5 | 53.7 | 5764 | 6773 | 8305 | 2343 | 3418 | 5052 |
| 185 | 16.4 | 1.6 | 95 | 1.5 | 1.4 | 0.5 | 2.5 | 2.4 | 2.3 | 2.6 | 50.0 | 54.9 | 59.0 | 7353 | 8496 | 10216 | 2975 | 4199 | 6006 |
| 240 | 18.7 | 1.7 | 120 | 1.5 | 1.5 | 0.5 | 2.5 | 2.6 | 2.5 | 2.8 | 56.2 | 61.3 | 65.6 | 9461 | 10763 | 12700 | 3778 | 5171 | 7227 |
| 300 | 20.4 | 1.8 | 150 | 1.6 | 1.5 | 0.5 | 2.5 | 2.8 | 2.6 | 3.0 | 62.7 | 67.9 | 72.0 | 11766 | 13238 | 15382 | 4632 | 6193 | 8413 |
Australia Standard Cable
0.6/1KV CU/XLPE/PVC
AS/NZS 5000.1-2005 | Core | Size | Conductor | Insulation | Shealth | | Total Weight kg/km |
| Single Core | OD. | XLPE | PVC |
| No. | Dia. | Thick | OD. | Thick | OD. |
| 1 | 1.5 | 7 | 0.53 | 1.59 | 0.7 | 2.99 | 1.4 | 5.79 | 46 |
| 1 | 2.5 | 7 | 0.67 | 2.01 | 0.7 | 3.41 | 1.4 | 6.21 | 57 |
| 1 | 4 | 7 | 0.85 | 2.55 | 0.7 | 3.95 | 1.4 | 6.75 | 75 |
| 1 | 6 | 7 | 1.04 | 3.12 | 0.7 | 4.52 | 1.4 | 7.32 | 98 |
| 1 | 10 | 7 | 1.35 | 4.05 | 0.7 | 5.45 | 1.4 | 8.25 | 142 |
| 1 | 16 | 7 | 1.7 | 5.1 | 0.7 | 6.5 | 1.4 | 9.3 | 203 |
| 1 | 25 | 19 | 1.35 | 6.75 | 0.9 | 8.55 | 1.4 | 11.35 | 327 |
| 1 | 35 | 19 | 1.53 | 7.65 | 0.9 | 9.45 | 1.4 | 12.25 | 405 |
| 1 | 50 | 19 | 1.78 | 8.9 | 1.0 | 10.9 | 1.4 | 13.7 | 532 |
| 1 | 70 | 19 | 2.14 | 10.7 | 1.1 | 12.9 | 1.4 | 15.7 | 744 |
| 1 | 95 | 37 | 1.78 | 12.46 | 1.1 | 14.66 | 1.5 | 17.66 | 985 |
| 1 | 120 | 37 | 2.03 | 14.21 | 1.2 | 16.61 | 1.5 | 19.61 | 1260 |
| 1 | 150 | 37 | 2.25 | 15.75 | 1.4 | 18.55 | 1.6 | 21.75 | 1546 |
| 1 | 185 | 37 | 2.52 | 17.64 | 1.6 | 20.84 | 1.7 | 24.24 | 1932 |
| 1 | 240 | 61 | 2.25 | 20.25 | 1.7 | 23.65 | 1.8 | 27.25 | 2518 |
| 1 | 300 | 61 | 2.52 | 22.68 | 1.8 | 26.28 | 1.8 | 29.88 | 3120 |
| 1 | 400 | 61 | 2.85 | 25.65 | 2.0 | 29.65 | 2 | 33.65 | 3981 |
| 1 | 500 | 61 | 3.2 | 28.8 | 2.2 | 33.2 | 2.1 | 37.4 | 4990 |
| 1 | 630 | 127 | 2.52 | 32.76 | 2.4 | 37.56 | 2.2 | 41.96 | 6417 |

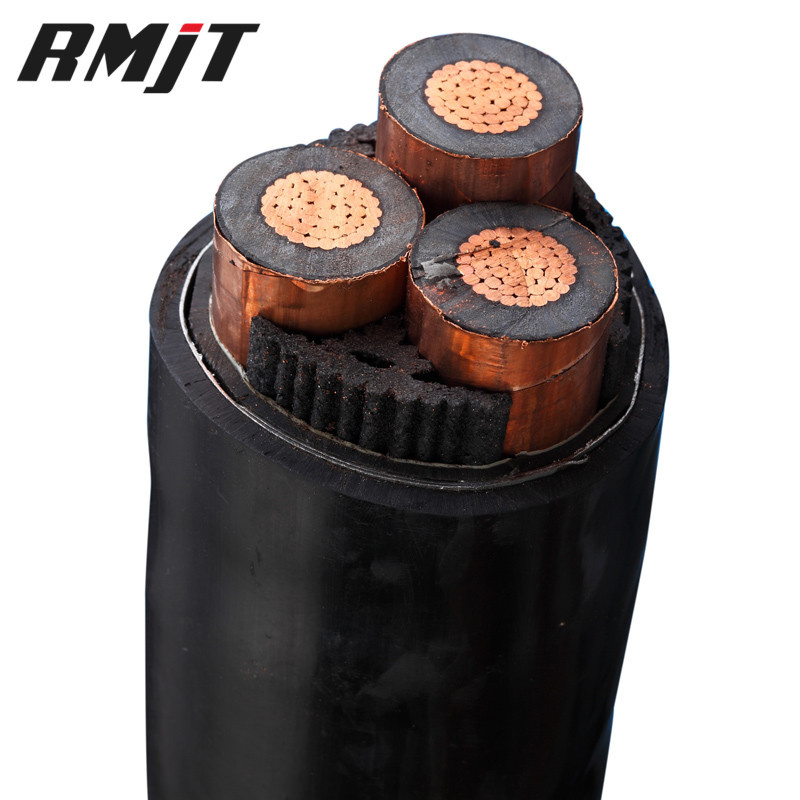

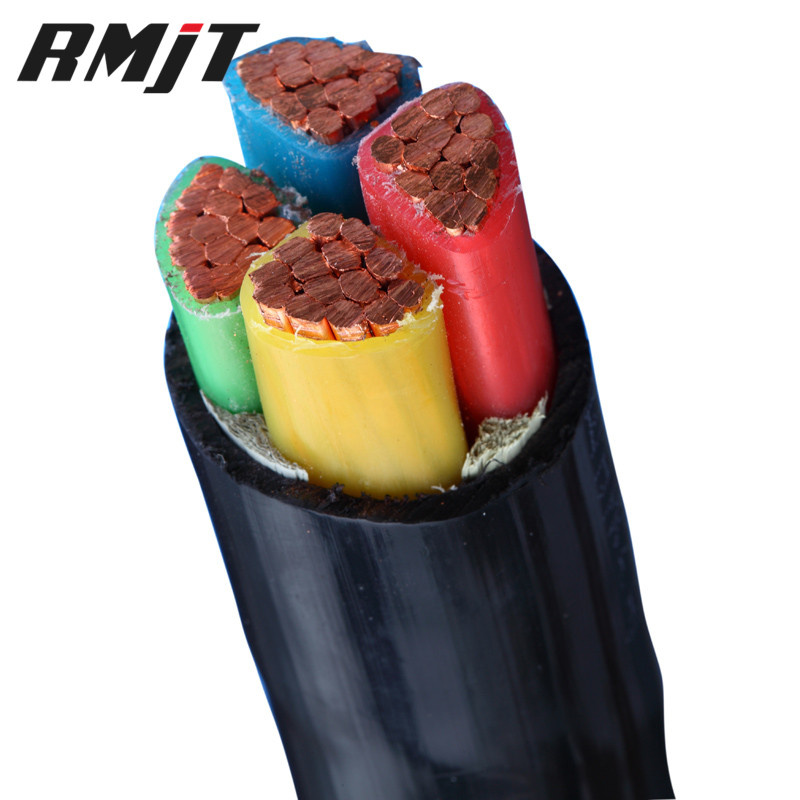

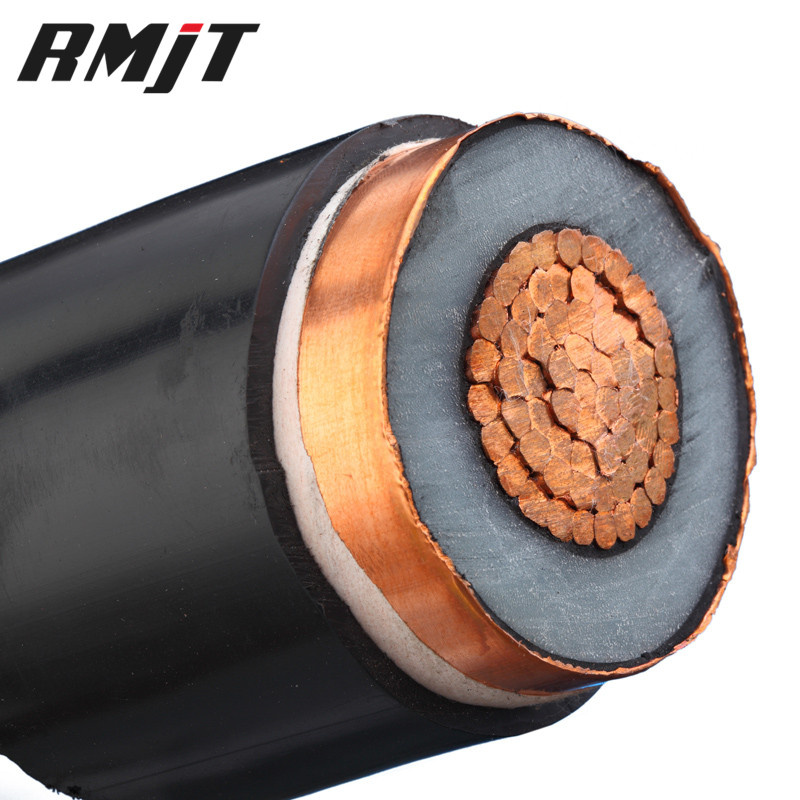

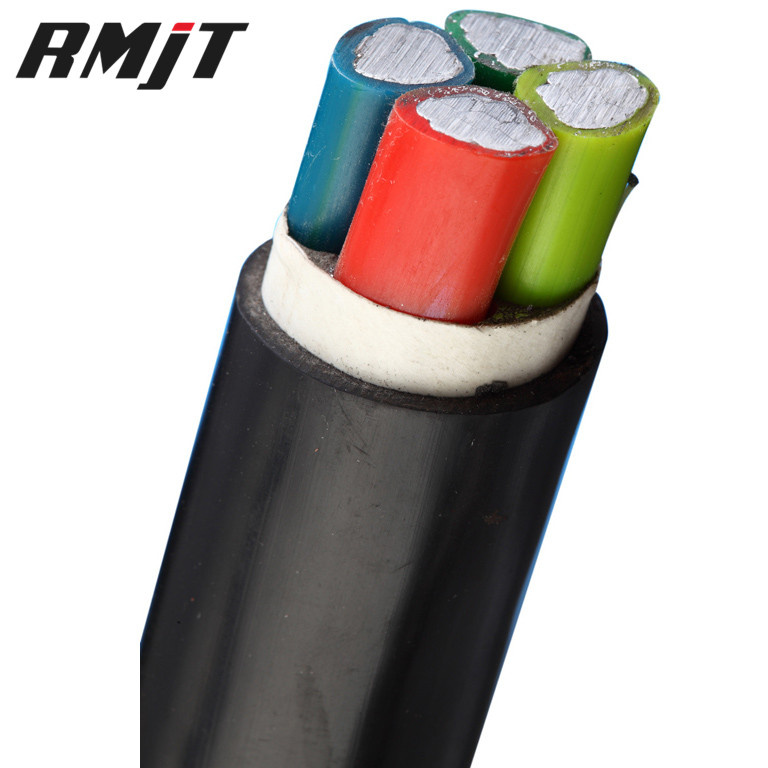

Product Pictures:
Packing and Delivery:

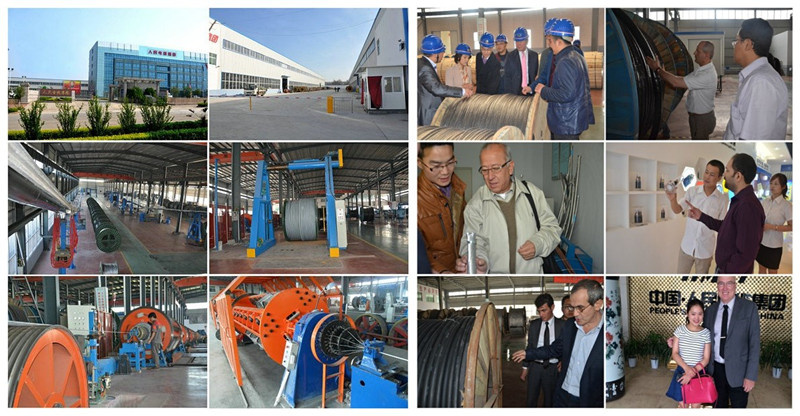

Our Company:
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
FAQ:
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2)How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3)How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
(4)What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Contact Information:
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjtcable.com
If you have any questions, please contact me, I will reply you as soon as possible.
Welcome your inquiry.
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
More >
Other Products with This Manufacturers
