Unitube Miner Light-Armored Optical Fiber Cable
Description

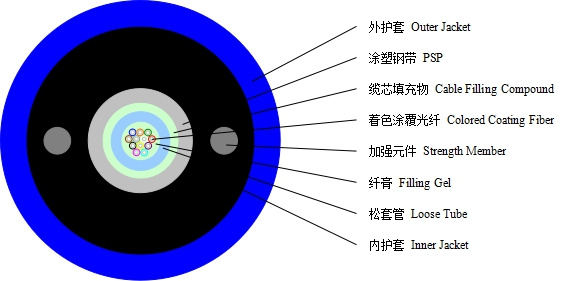

The structure of MGXTWV cable is fibers, are positioned in a loose tube made of a high modulus plastic. The tube are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with two sheaths, inner jacket is armored corrugated steel with the Flame retardant polyolefin, out jacket is Blue Polyvinylchloride.
Features:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Special designed compact fiber structure, effectively avoid the tube shrinked.
5. The following measures are taken to ensure the cable watertight:
Single steel wire used as the central strength member.
Loose tube filling compound.
Fiber cores are absolutely waterblocking dry structure.
Standards
MGTSV Cable complies with Standard of MT/T 386-2011, as well as YD/T 901-2009.
| No. | Items | Unit | Specification |
| G.652D |
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
Cable Parameter
| Items | Specifications |
| Fiber Count | 12 |
Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue\Orange\Green\Brown\
Gray\Natural\Red\Black\
Yellow\Purple\Pink\Aqua |
Loose Tube | Dimension | 2.4mm±0.1mm |
| Material | PBT |
| Color | Natural |
Strength Member | Diameter | 0.8mm |
| Material | Steel |
Iinner Jacket | Dimension | 7.6mm±0.2mm |
| Material | PE |
| Color | Black |
Outer Jacket | Dimension | 10.0mm±0.2mm |
| Material | PVC |
| Color | Blue |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | degree | -10~+50 |
| Operating Temperature | degree | -20~+60 |
| Storage Temperature | degree | -20~+60 |
