Unitube Non-Metallic Micro Cable Jet

Name: Unitube Non-Metallic Micro Cable Jet
Brand: all-electronics-online.com
SKU: 823231255
Availability: InStock
Rating: 4.9 (91 reviews)

Price:	US $ 0.228-2.28/Meter
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JET
Laying Method:	Aerial
Application:	Probe
Certification:	ISO9001
Type:	Sm/mm
Sheath Material:	PE

Product Description

Description

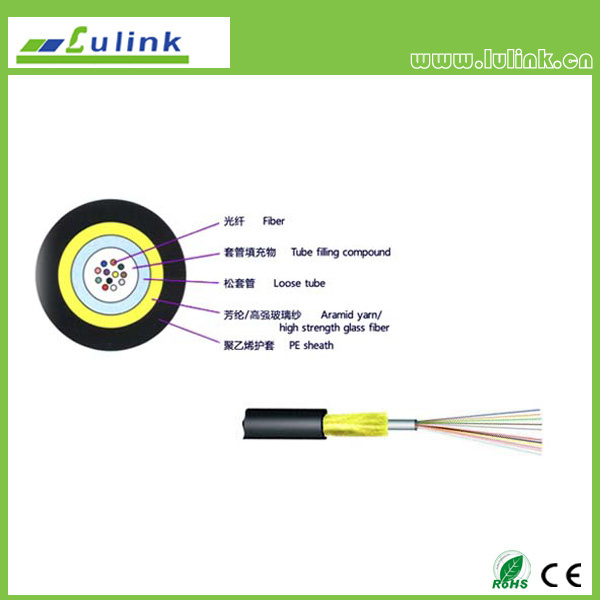

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

Characteristics
·Non-mental design can prevent the cable from radio interference and magnetic wave interference

·Specially designed compact structure is good at preventing loose tubes from shrinking

·Aramid yarn ensures good performance of tensile strength

·Loose tube filling compound ensure good moisture resistance performance

·Good flexibility

·High dense fiber packed, small diameter and light weight; it's the better option for blowing installation process
Application
Adopted to backbone network, access network and fiber to the home.
Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth(Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth(Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Dia mm	Cable Weight kg/km	Tensile Strength Long/Short Term	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic
JET 2~12	2~12	4.2±0.3	12	60/150N	300/1000	10D/20D
JET 14~24	14~24	4.6±0.3	15	60/150N	300/1000	10D/20D
JET 26~36	26~36	5.1±0.3	18	60/150N	300/1000	10D/20D
JET 38~48	38~48	5.6±0.3	22	60/150N	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
