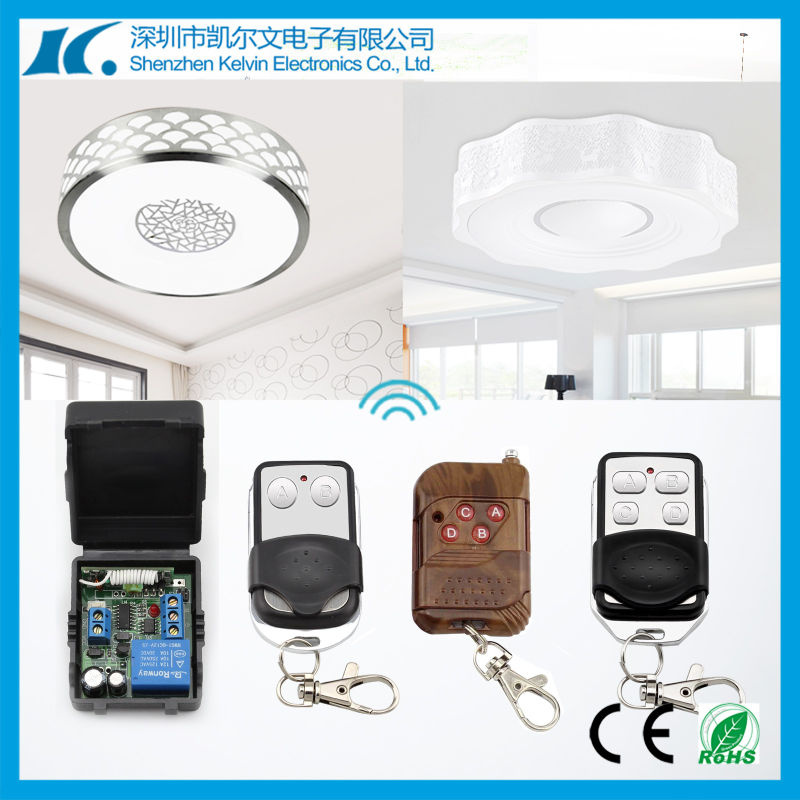

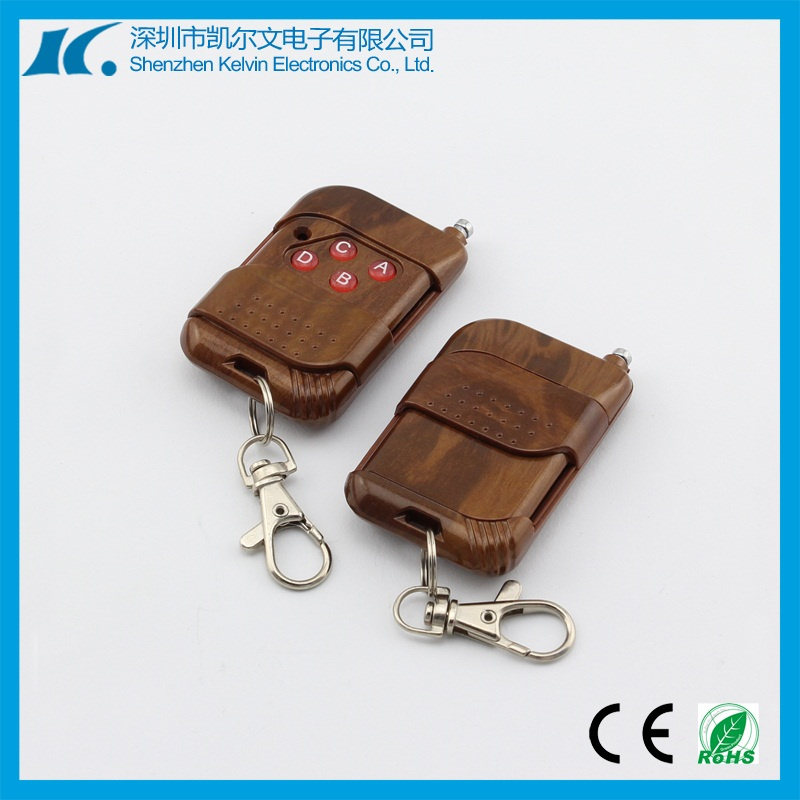

Universal 433MHz 4 buttons 100m RF wireless copy remote control KL300-4
Use range
Kelvin 4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers:
- Vehicle central locking systems
- Garage doors
- Electronic gates
- Electrical appliances
- Car sunroofs
- Heating systems
| Buttons | 1-4 |
| Operating voltage | DC12V |
| Operating current | 10MA |
| Operating frequency | 315Mhz, 433Mhz, 868.35Mhz, 869.85Mhz, 290Mhz - 480Mhz |
| Ambient temperature | -20 °C ---- +50 °C |
Advantages
Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
Works with the following remote control modules (please check your existing remote control before ordering): Your remotes also should be Fixed code or Learning code.
2260, 2262, FP1527, HT12D , HT12E , PT2240, S026-1 ,S026-2 ,S026-3 ,S026-4, SMC918.... etc
Please note this does not copy rolling code
Methods of operation

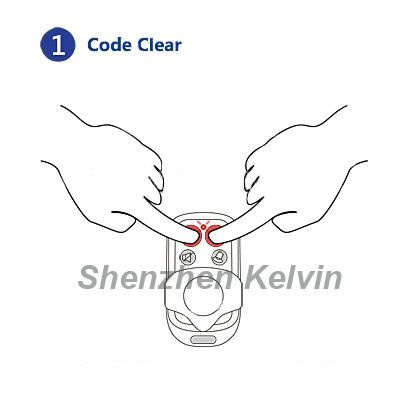

1, Clear out code:
To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out.

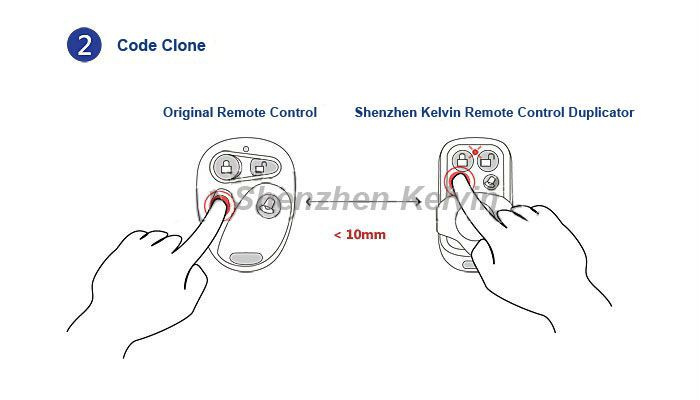

2, Duplicating (learning)
Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning.

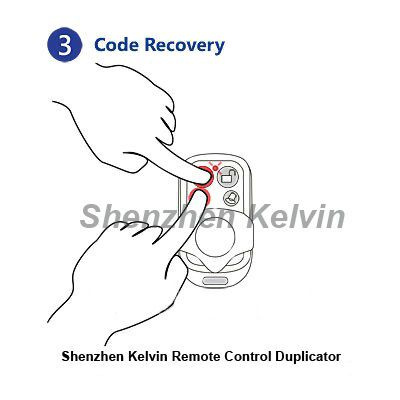

3, Recovery code
If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.
The other way, you can delete all and relearn them again.
5. Shipping
1) Express: DHL, FedEx, UPS, TNT, EMS, etc.
2) By air
3) By sea
4) By special line
Depends on buyer's requirement.
6.FAQ
1) What is your warranty period?
Generally, we provide 1 year warranty for all our products unless otherwise mentioned. (Some are 2 years.)
For DOA (Defective On Arrival) items, which will be replaced or refund, please inform us within 3 days of arrival, please also keep all components and original packaging as further checking maybe required, faulty items must be returned for repair or exchange.
2) If i don't know how to use the products, what can i do?
Pls contact us whenever you need our help, even we are not online.
You can write email to us, or contact us byTrademanager, Skype, and other IM tools.
We are all very glad to answer your questions.
3) What certifications do you have?
Most of our products are approved with CE certification, some are with FCC.
If you have any other requriements with certifications, we also would like to help you.
7. Our Service
1. Accept OEM, ODM &silk-screen printing you logo on the shell.
2. Response in 10 hours.
3. Experienced R&D staff.
4. Professional SMT equipments.
5. Accept payment via T/T, Paypal, Western Union, Escrow, and so on.
6. Delivery by DHL,UPS,EMS or by sea as your requirments.
8. For order
1).Accept OEM.
2).Print logo on the case and pakage
3).Payment Details :30% deposite,70% balance before shipment. Payment accept T/T, Western union, PayPal, optional)
4).Minimum Order:100 pcs (accept trial order)
5).Delivery Details: within 3-5 days depends on order quantity.
