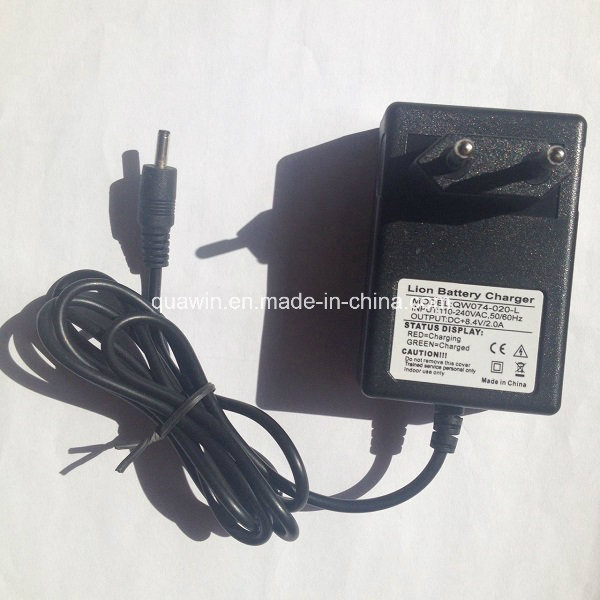

Universal 8.4V 2A AC DC Lithium Battery Charger

Name: Universal 8.4V 2A AC DC Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 779814595
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW084-020-L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Battery Type:	18650 Battery
Input Voltage:	AC100-240V 50/60Hz
Voltage:	8.4V
Plug-in Type:	Yes
Package:	Antistatic Bag /White Box and Standard Export Cart
Delivery Date:	15days
Warranty:	One Year
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	8.4V

Product Description

8.4V 2A Lithium Battery Charger for 7.4V li-ion battery pack

Oupt power range	8.4V1.5A 8.4V2A (also have those models for selection)
The size	854832mm
The weight	100g/pcs
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	8.4V± 5% (option)
DC Output Current	2A (option)
DC Output Power	16.8w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w
DC connector	5.52.110mm (optional)
DC cable	1.5m 2464UL 22AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Certificates	CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
