| Prod Model: |
LLT-TY8006Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
1.6g MHz |
| Main Chip Model: |
Rk3188t 4-Core Processor |
| Operating System: |
Android 5.1 |
| Resolution: |
800*480(Selection by Resistor) |
| Operating Voltage: |
9-12V |
| Tracking Sensitivity: |
~161dBm |
| Positioning Accuracy: |
3.0m Cep |
| GPS Antenna: |
3V Active Antenna |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
7" |
| Brand: |
Lsailt |

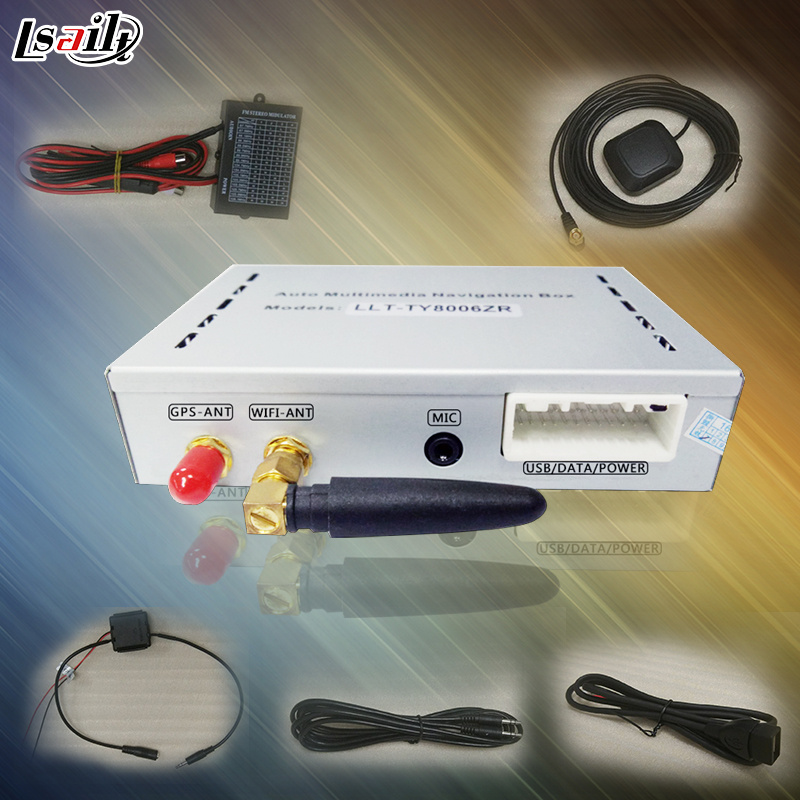

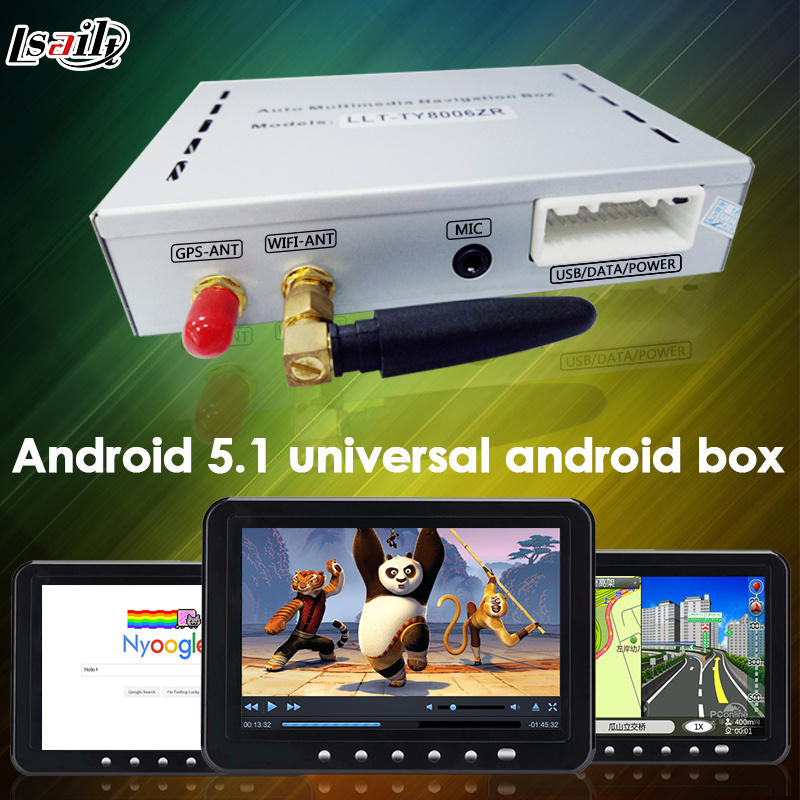

Product Description
Universal Android Navigation Box Support APP Download
Specifications :
Master processor : RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3),basic frequency is 1.6G.Memory capacity: 2G DD RIII optional .Flash memory: 8G E MMC Flash, maximum 64G .OS: Android 5.1.GPS receive:support AGPS functionGPS antenna: 3V active antennaGPS antenna protection : prevent the antenna short circuitWiFi module : RTL8188/RTL8723. WiFi module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.A2DP,Bluetooth telephone.Support USB 3G dongle, WiFi can be as a hot spot output. Support USB camera which support DVR.Synchronizing signal: composite synchronizing signal. Separate sync signal
Video output format:simulate RGB and CVBS composite synchronizing signal output , one of them optional.Functions:1. Apps download supported . Youtube , Facebook, Gmail, Google play etc .
2. Mobile phone Android/IOS mirrorlink built-in .
3. Real-time traffics information .
4. WIFI network built-in.
5. Multi-language
6. worldwide IGO online/offline maps .
7. Touch control
8. USB HD 1080P multimedia playback
9. Plug and play for easy installation
Upgrade System
There are many ways to upgrade :1, The way without enter into system : Write the update.img file to the SD card by SD Card Tool, make a boot disk. Insert the card and power on , system will copy to flash from SD card.2) Put update. Img file into U disk, put down the sleep din before the 10S sleep in boot process . Upgrade system from U disk When have not detected SD.3) If have not inserted the U disk and SD card which with update. img .Put down the sleep din before the 10S sleep in boot process ,the system will come into Recovery mode automatically .Move into the Recovery mode.2. After come into system , if insert the SD card or U disk which with update. Img , upgrade modal dialog box pops up, within the 5S No operating automatically enters upgrade mode. Specifications of System : | Chip | BCM4752 |
| Frequency | 1575.42± 1 .023 MHz |
| Number of channels | 66 channel |
| Tracking sensitivity | -1 61dBm |
| Positioning accuracy | 3.0m CEP |
| Rate | 0.1 m/s |
| Data update rate | 1HZ |
| Re-capture time | <1S |
| Hot start time | 1S |
| Warm start time | 32S |
| Cold start time | 35S |
| Maximum positioning height | 18000m |
| Maximum rate | 515m/s |
| GPS Antenna | Active ceramic antenna |
| Antenna gain | 27dB |
| Antenna noise factor | <2dB |
| VSWR | 1 .5 |
| Antenna voltage | 3V± 5% |
| Antenna current | 1 5mA |
The maximum rated operating parameters table| Operating voltage | 9-12V |
| Operating current | 300mA |
| Maximum power consumption | 2.5W |
| Shutdown current | 1 mA |
| Off Power | 30mW |
| Operating ambient temperature | -10ºC-- +80ºC |
| Storage temperature | -50ºC-- +90ºC |
