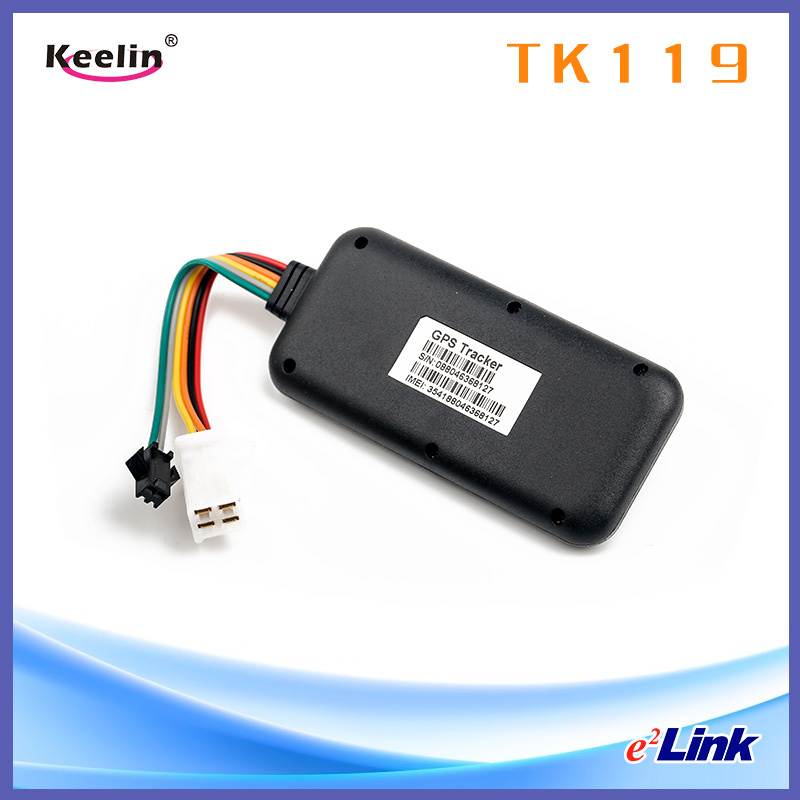

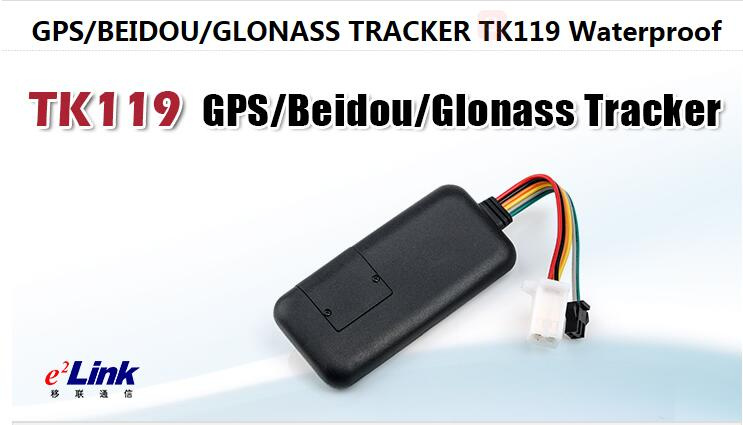

Universal Car GPS Tracker GSM/GPRS/GPS Quad Band Tracking Device

Prod Model:	TK119
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	50g
Working Voltage:	9-72VDC
Dimension(mm):	87(L)X41.6(W)X 12(H)
GSM Frequency:	850/900/1800/1900MHz
Battery Capacity:	70mAh
GPS Accuracy:	5-15m
Lbs Accuracy:	200m
Working Temperature:	-20c~70c
Work Humidity:	20%~80%Rh
Waterproof Level:	IP67

Product Description

TK119 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful, wide voltage 9-72V, cutting oil, can be trackered on the platfrom through computer & smart phone.If you are finding GPS Tracker for Car with Serial Port, Best Waterproof Activity Tracker, Waterproof Tracker, GPS Tracker Car Hidden, TK119 is your best choice.


PLATFORM/APP:
Collision / Falling Alarm
Speed Alarm
Geo-fence Alarm
Power Disconnect Alarm
Low Battery Alarm
Real-time Tracking
Route Play Back
Cut Oil (Need Relay)
Vibration Alarm
Typical application areas : logistics enterprises, fleet management, bus management, insurance, power, oil, telecommunications, taxi, car sales, car rental, vehicle maintenance, technology researchers.

PRODUCT FEATURES:
Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Super Wide Input Voltage:9-72V DC.
Support GPS / Beidou / Glonass precise positioning system, support A-GPS
GPS data uploaded by GPRS regularly, Web browser platform, Smart phone app platform and SMS query.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in G-sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Use relay to remotely cut the oil
Extend I/O port to add extension function
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
Water proof level IP67
MODLE TYPE:
TK119 : GPS
TK119-BD :GPS + BEIDOU
TK119-GN :GPS + GLONASS

Base Specification
Voltage	9-72VDC
Work Current	<30mA@12V
Standby Current	<10mA@12V
GPS positioning accuracy	15m
GSM positioning accuracy	100m
GPS Frequency	1575MHz
GSM Frequency	850/900/1800/1900MHz
Hot/warm/cold start time	<3s,<15s,<60s
Operating temperature	-20ºC~70ºC
Operating humidity	20%~80%RH
Dimensions (mm)	87(L)X41.6(W)X 12(H
Net Weight	50 g
