| Prod Model: |
CA10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ca10-20/Ca10-25/Ca10-32/Ca10-63/Ca10-125/Ca10-160 |
| Certification: |
CE |
| Usage: |
Machinery |
| Standard: |
Standard |
| Condition: |
New |

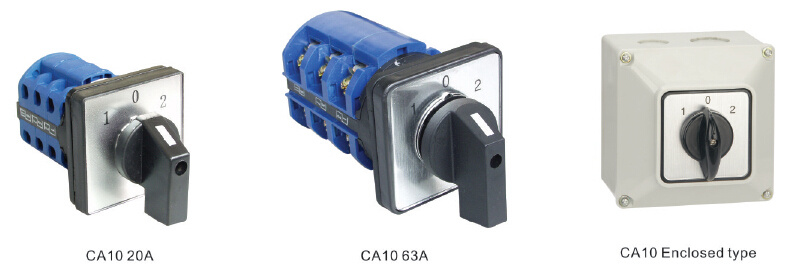

Product Description
Specification| Type | CA10-20 | CA10-25 | CA10-32 | CA10-63 | CA10-125 | CA10-160 |
| Rated insulation voltage ui(V) | 690 | 690 | 690 | 690 | 690 | 690 |
| Conventional heating current ith(A) Ac 10<=40° | 20 | 25 | 32 | 63 | 125 | 160 |
| Rated working voltage ue(V) | 120 240 440 | 120 240 440 | 120 240 440 | 240 440 | 240 440 | 220 440 |
| Rated working current le(A) | AC-21A AC-22A | 20 20 | 25 25 | 25 32 32 | 63 63 | 100 100 | 150 150 |
| AC-23A | 15 15 | 22 22 | 22 30 30 | 57 57 | 90 90 | 135 135 |
| AC-2 | 15 15 | 22 22 | 22 30 30 | 57 57 | 90 90 | 135 135 |
| AC-3 | 11 11 | 15 15 | 15 22 22 | 36 36 | 75 75 | 95 95 |
| AC-4 | 3.5 3.5 | 6.5 6.5 | 6.5 11 11 | 15 15 | 30 30 | 55 55 |
| AC-15 | 5 4 | 8 5 | 5 14 6 |
|
|
|
| AC-13 | 5 1 | 9 1.5 | 25 11 |
|
|
|
| Rated control power(KW) | AC-23A | 3.7/2.5 7.5*3.7 | 5.5/3
11/5.5 | 7.5/4 15/7.5 | 15/10 30/18.5 | 30/15 45/22 | 37/22 75/37 |
| AC-2 | 4 7.5 | 5.5 11 | 7.5 15 | 18.5 30 | 30 45 | 37 55 |
| AC-3 | 3/2.2 5.5/3 | 4/3 7.5/3.7 | 5.5/4 11/5.5 | 11/6 18.5/11 | 15/7.5 30/13 | 22/11 37/18.5 |
| AC-4 | 0.55/0.751 1.5/1.5 | 1.5/1.1 3/2.2 | 3.7/15 5.5/3 | 5.5/2.4 7.5/4 | 6/3 12/5.5 | 10/4 15/7.5 |
| Mechanical life | 60 x 10^4 |
| Electrical life | AC-15 20 x 10^4 DC-13 60 x 10^4 |

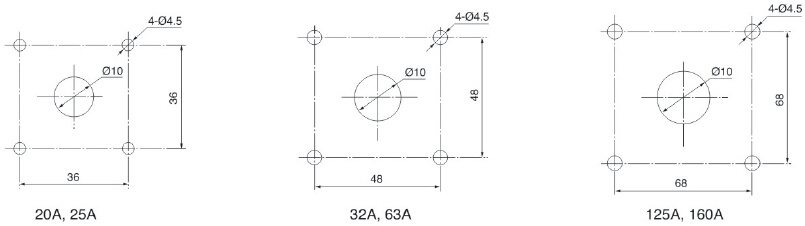

Dimension
