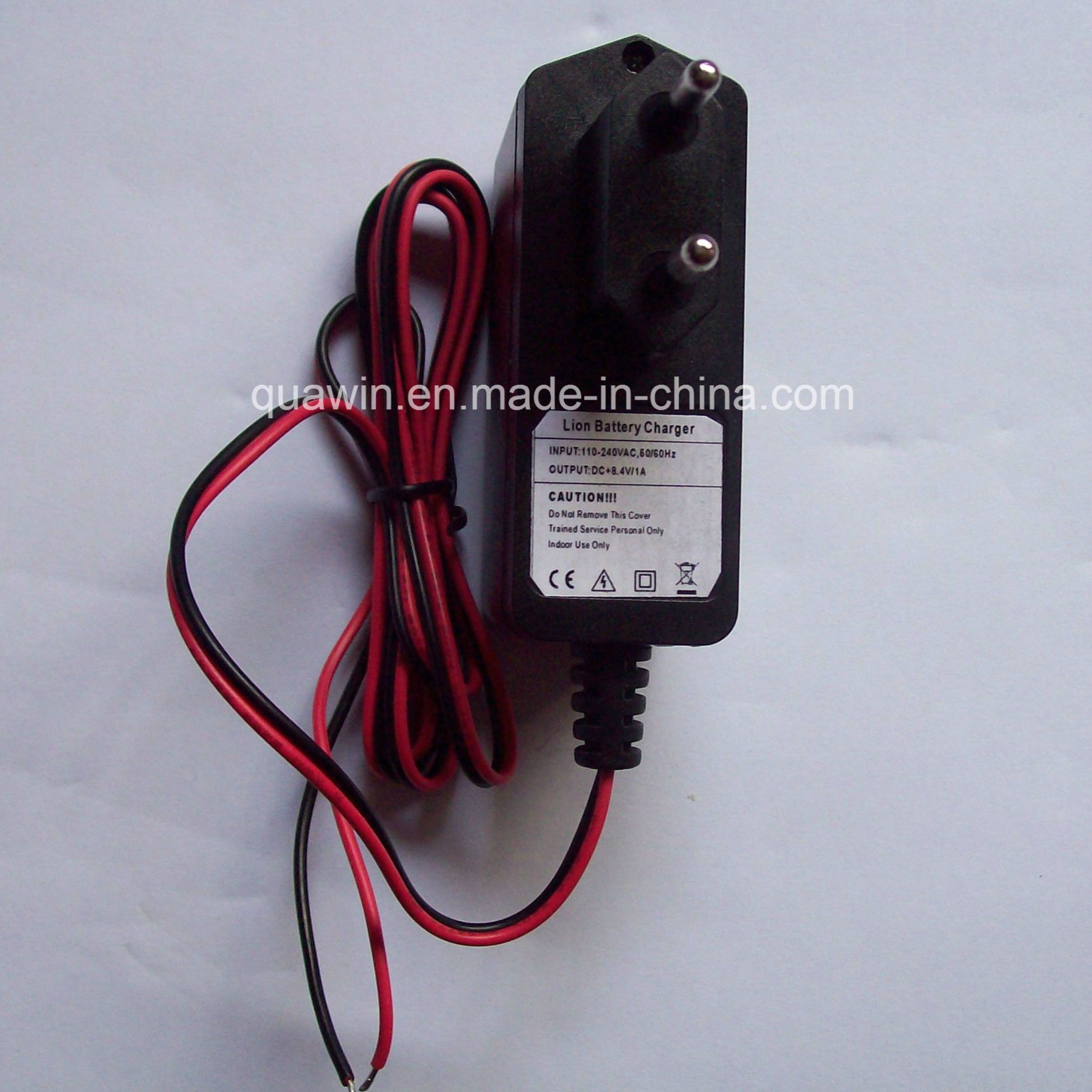

Universal Charger 8.4V 1A for 7.4V Lithium Battery

Name: Universal Charger 8.4V 1A for 7.4V Lithium Battery
Brand: all-electronics-online.com
SKU: 812510885
Availability: InStock
Rating: 4.9 (23 reviews)

Price:	US $ 1.99/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW084-010-L
Input Voltage:	AC100-240V 50/60Hz
Voltage:	8.4V
Current:	1A
Plug-in Type:	Yes
Delivery Date:	20days
Warranty:	One Year
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	8.4V
Socket Type:	EU Us UK Jp Au

Product Description

EU US UK JP AU plugs 8.4v 1a li-ion charger

Product Descriptions:

Model	Li-ion Battery Charger
Input	100-240Vac 50/60Hz
Input plug(power cords)	EU--US--UK--AUS--South Korea--South African--Brazil Plugs
Battery voltage	3.7V/cell
Output	2S 8.4v1.2a li-ion battery charger
Our Max Power of Charger	600watts(12v40a 24v20a 36v15a 48v10a)
Highest Charging Voltage	Top Charging Voltage: 4.2V/cell 4.2V for 1S 3.7V Li-ion Battery pack: 4.2v150ma 500ma 800ma 1a 8.4V for 2S 7.4V Li-ion Battery pack: 8.4v500ma 1.2a 2a 3a 12.6V for 3S 11.1V Li-ion Battery pack: 12.6v1a 2a 3a 4a 10a 16.8V for 4S 14.8V Li-ion Battery pack: 16.8v500ma 1a 2a 3a 21V for 5S 18.5V Li-ion Battery pack: 21v500ma 1a 2a 25.2V for 6S 22.2V Li-ion Battery pack: 25.2v2a 3a 5a 29.4V for 7S 24V Li-ion Battery pack: 29.4v500ma 1a 2a 3a 5a 10a 33.6V for 8S 24V Li-ion Battery pack: 33.6v1a 42V for 12S 36V Li-ion Battery pack: 42v1.5a 2a 3a 5a 54.6V for 13S 48V Li-ion Battery pack: 54.6v1.5a 2a 3a 5a
Charge mode	2-stage Mode: CC---CV
Led Indicator(Dual Color)	Red---in Charging; Green--Finish charge/ no load
Led Switch current	12-15% of charge current
Safe Protection	Over-load protection Over-current protection
Safe Protection	Short circuit protection Polarity Reverse Protection

Efficiency	>80%
DC Jack	5.52.1 5.52.5 3.51.35 2.50.7 4.0*1.7
Power Consumption	≤0.5W at Rated Voltage(adapter at no load)
Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
Leakage Current	0.5mA(max) at input 240V AC
Drop Test	0.75m drop test, 6 times
Burn-In Test	100% load, 5hours
MTBF	50,000 hours@ 25°C
Application	Headlamp, Torch, Ebike, Scooter, UPS, Solar Systems. etc.

Our company is professional manufactory of kinds of battery chargers&adapter. Our company combines R&D, manufacture and marketing together and some of our chargers meet with UL, CE, SAA, and PSE standards.
Main products:
1.Lithium battery smart charger.
2.lead acid battery charger.
3.LiFePO4 battery smart charger.
4.Ni-MH/Ni-Cd battery pack smart charger.
5.car charger.
6.power bank.

Apply to:
Hair clipper
Camping lights
Nightlight
Children toys
Electric vehicle
Electric Scooter
Electric golf cart
Electric mower
Electric Bicycle
Electric Motorcycle
Wheelchair
Electric forklift
Generator
Electric lifts
Electric Tour sightseeing cars
Floor cleaning machine
Most of power tool

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
