| Prod Model: |

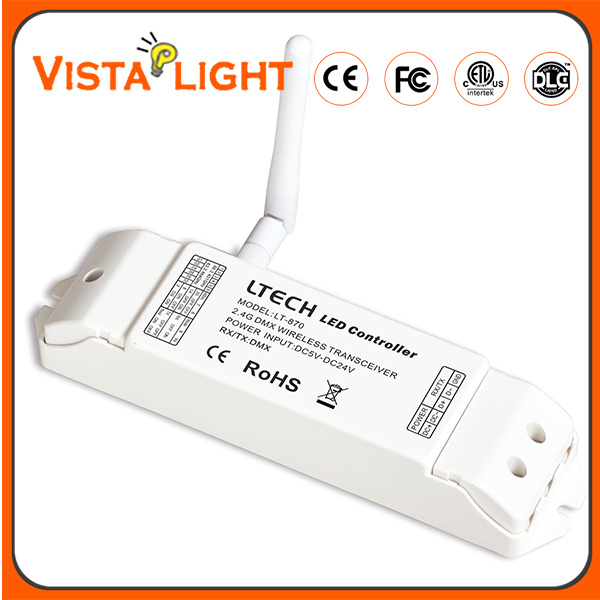

Wireless DMX512 Transceiver LT-870 |
| Product Name: |
Wireless DMX512 Transceiver Lt-870 |
| Product Size: |
L175*W44*H30mm |
| Package Size: |
L178*W53*H33mm |
| Working Voltage: |
DC5V-DC24V |
| Weight(G.W): |
125g |
| Input Signal: |
DMX512 |
| Working Frequency: |
2.4GHz ISM 64 Channels |
| Max Transmitted Power: |
20dBm |
| Communication Distance: |
350 |
| Receiver Sensitivity: |
-96dBm |
| Application: |
LED Products |
| Signal Transmission: |
Radio Waves |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Transmission Distance: |
350m |
| Voltage: |
DC5V-24V |
Product Description
Universal DC5V-DC24V dmx controller wireless transceiver for led products
LT-870 wireless DMX512 transceiver transfers the standard DMX512 protocol data wirelessly.

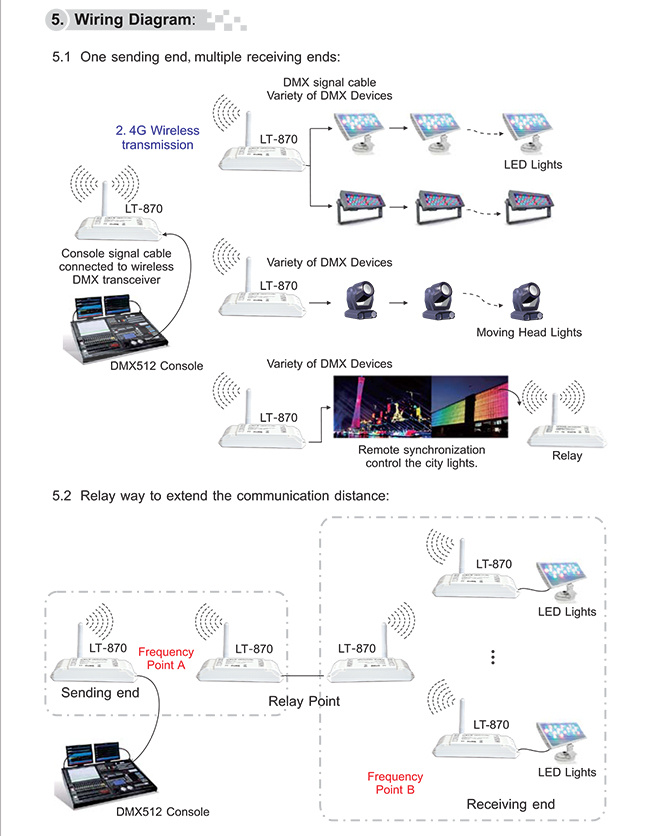

One emitter matches one or multiple receivers if using the same frequency. (Supporting point-to-point, point to multi-point communication),
LT-870 is used for data transmission between DMX console and lights, or between lights and
lights, which replace the wired transmission. The data will not be delayed, will be true and
reliable during transmission process.
Adopt 2.4GHz global open ISM frequency channel, 64 groups wireless network can be chosen independently to avoid interference.

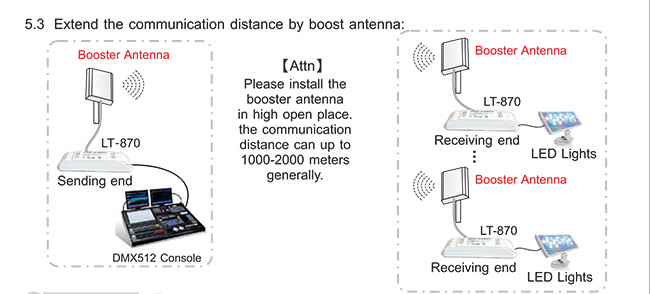

Use relay settings or connect to booster antenna to further the communication distanceProduct Paramet| Wireless DMX512 Transceiver LT-870 |
| Input Signal | DMX512 |
| Input voltage | DC5V-DC24V |
| Working Frequency | 2.4GHZ ISM 64 channels |
| Max Transmitted Power | 20dBm |
| Communication Distance | 350m |
| Receiver Sensitivity | -96dBm |
| Working Temperature | -20°C~55°C |

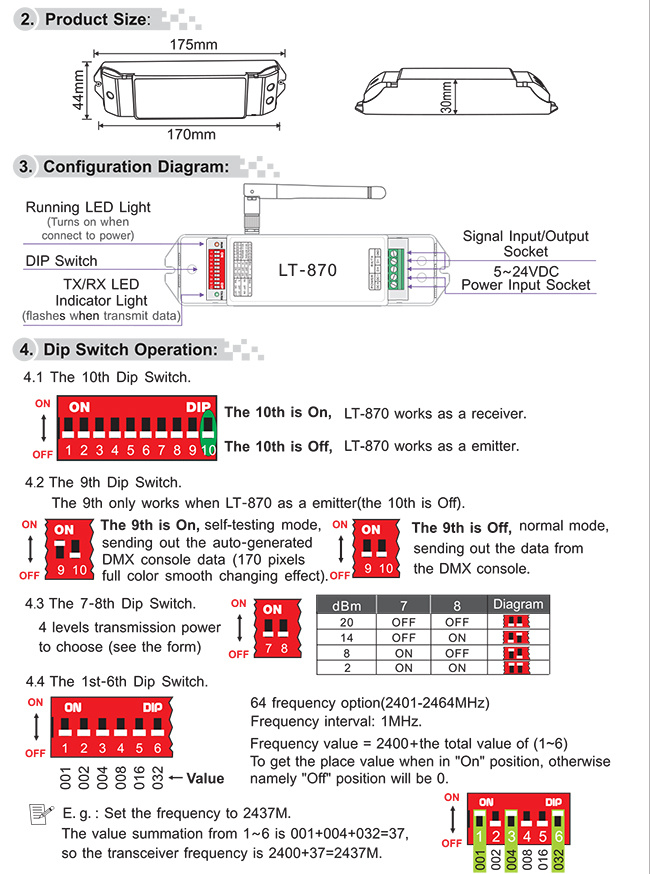

| Product Dimensions | L175×W44×H30mm |
| Package Dimensions | L178×W56×H33mm |
| Weight(G.W) | 125g |
Product Details
Product Attention1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Product Warranty Agreement
1. We provide lifelong technical assistance with this product:
(1) A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers manufacturing faults only.
(2) For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2. Warranty exclusions below:
(1) Any man-made damages caused from improper operation, or connecting to excess voltage and overloading.
(2) The product appears to have excessive physical damage.
(3) Damage due to natural disasters and force majeure.
(4) Warranty label, fragile label and unique barcode label have been damaged
(5) The product has been replaced by a brand new product.
3. Repair or replacement as provided under this warranty is the exclusive remedy to the customer. Ltech shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.
4. Any amendment or adjustment to this warranty must be approved in writing by Ltech only.
Our company
We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

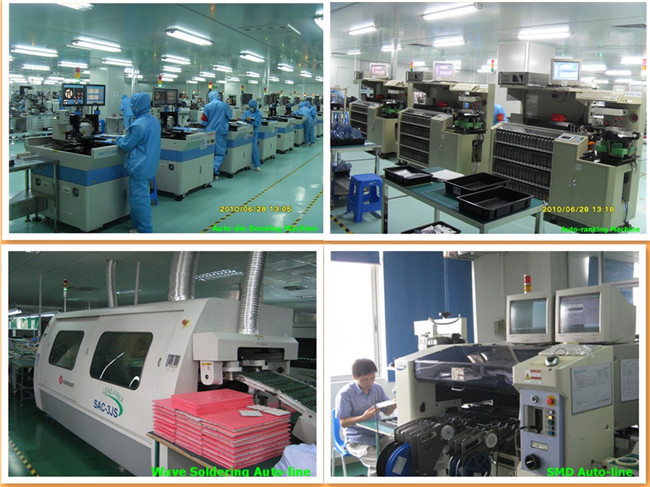

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
