Universal Duplicator 315/433/868MHz Remote Control Garage Door

Prod Model:	ZD-T022
Frequency:	433.92 MHz
Dimensions:	30 ×55 × 12 mm
Guarantee:	1 Year
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Metal
Battery Type:	27A 12V Battery

Product Description

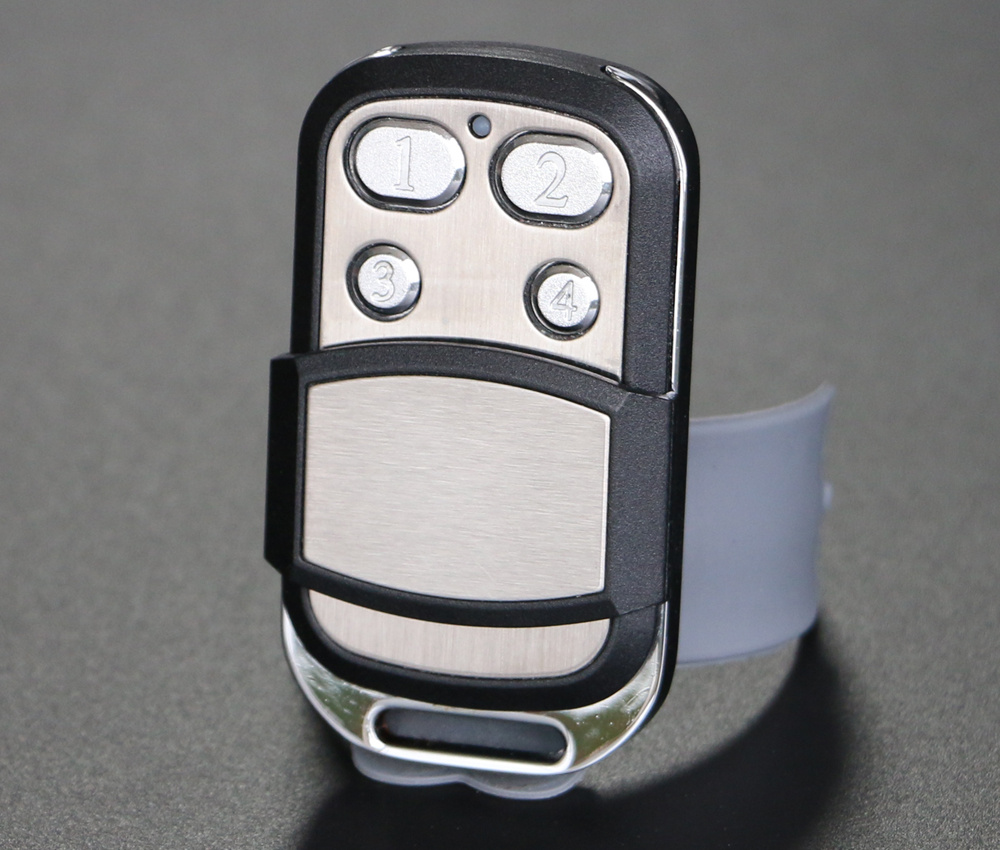

Universal  Duplicate Remote / Cloning Remote 315/433/868Mhz for Key Fob

Description:
The 4-Channel Wireless Remote Control Duplicator for Cars, Garage Doors, Gate Doors, Alarm Systems etc. This is a fixed frequency remote cloner (433.92mhz) for copying 99.99% common fixed and learning code remote controls. Clone up to 4 remote signals from 4 different remotes!

Specification:
100% Brand-new and High Quality.
Operating frequency: 433.92MHz
Size: 55mm x 33mm x 15mm
Remote control range: Up to 100 meters.
With this replacement remote key you can clone all 433.92MHz fixed code key fobs based on supported IC.Universal duplicate: can copy 99% fix code and learning code.
Widely used on market.
Super duplicate: can copy 99% fix code, learning code and parts of rolling code.
Frequency: 433.92 Mhz
Voltage: 12V / 27A battery
Operating temperature: -20°C ÷ +55°C
Weight: 35g
Dimensions: 34 ×54 × 13 mm
Power consumption: 12 mA
Range:50 - 100 m
Guarantee: 1 Year

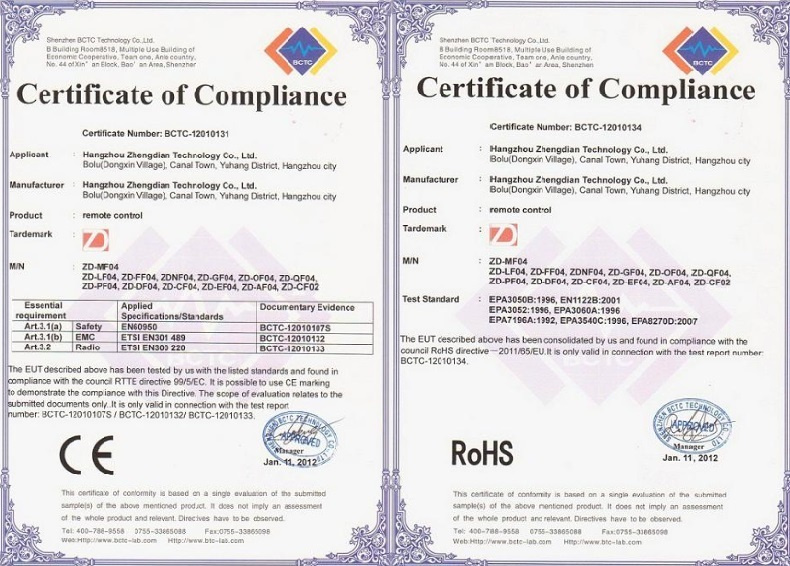

Certificate:ISO9001,CE,ROHS


Characteristics:

1.Various designs for your choice

2.Materail:Metal and PVC

3.Encoding type: Fixed code/learning code /rolling code(optional)

4.High stability :Adopting imported SMT component SAW and super high frequency audion



Detail code:

Fixed Code:SC2260;SC2262,HS2260,HS2262;PT2264 all manufacturer

Learning code:HS1527,HS2240,HT6P20B,HT6P20D all manufacturer

Rollinghopping code:HCS301,HCS300,HCS101,HCS200\HCS201(Parts of code)  super duplicator

Singlechip: partial

Usage: garage door openers, motorcar alarm system, security device
Operation: Copy face to face


Notice: We strongly suggest you to check the IC CODE of your original remote key. The replacement remote key may not work properly if you copy the code from an unsupported IC.


How to Program:
1. Simultaneously press the two top buttons(A & B) for about 3 seconds until the red light flashes quickly (Pls finish this step before you going on the next).
2. Place the replacement remote key and the original one as close as possible.
3. Simultaneously press a button on your original remote key and one of the buttons on the replacement and hold them until the red light on the replacement flashes steadily. (The red light will first flash 3 times quick, then stops for a second, and then flashes steadily when cloned successfully). Programming is now successful! If you want to program more buttons, simply repeat steps 2
4. To reset the remote simply start again with step 1.
5. If you reset your replacement remote key incautiously, just press the two bottom buttons(C & D) for about 3 seconds until the red light flashes quickly.

Package and shipping :

Package: 1pc/color box , 500pcs/carton. carton size:42*39*20cm, .W:18kgs

Shipping: By sea or by  , for your option.

\

Factory:

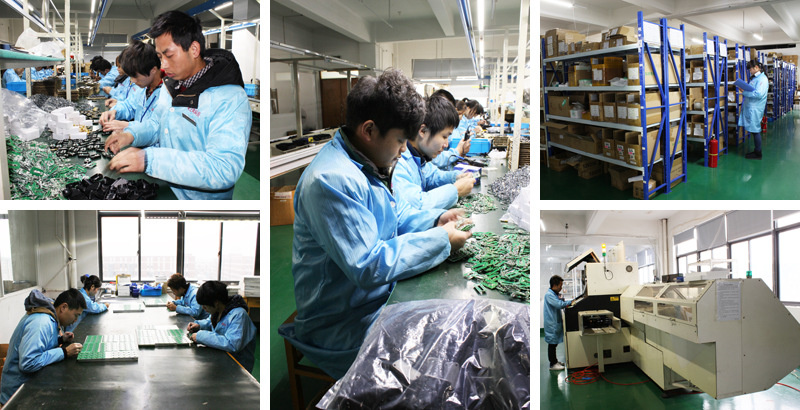

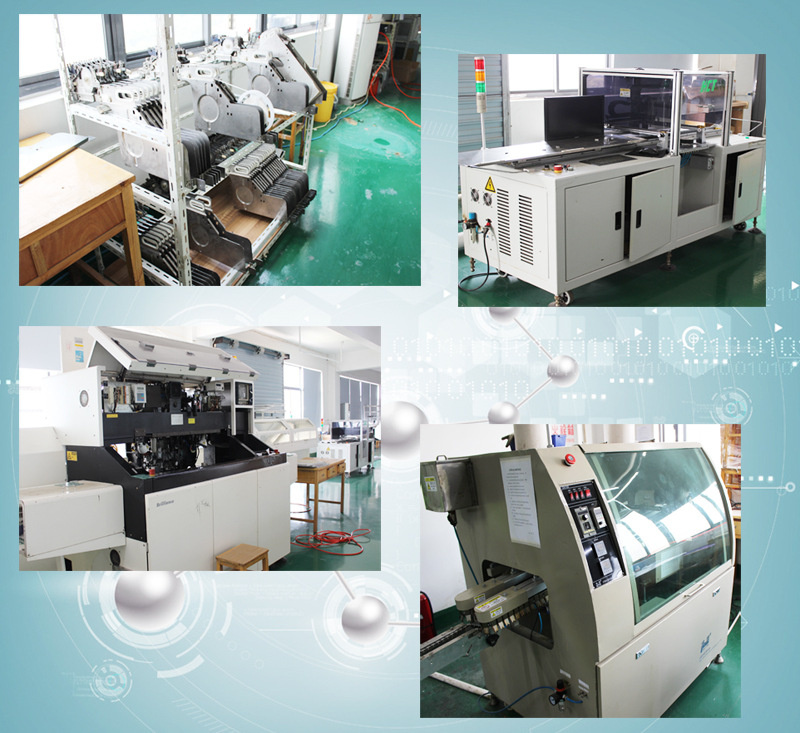

We Hangzhou Zhengdian Technology Co.,Ltd was established in 2008,we are a high-tech enterprise which is specialized in wireless remote control system ,including RF remote control and IR remote control system.Our production is semi-automatic ,like we've got 2 SMT Machines ,1 SMT Reflow Oven ,3 production lines and 2 shield rooms for testing.Our annul turnover is over 10 million RMB which makes us one of the most capable factory of remote control products in China.
