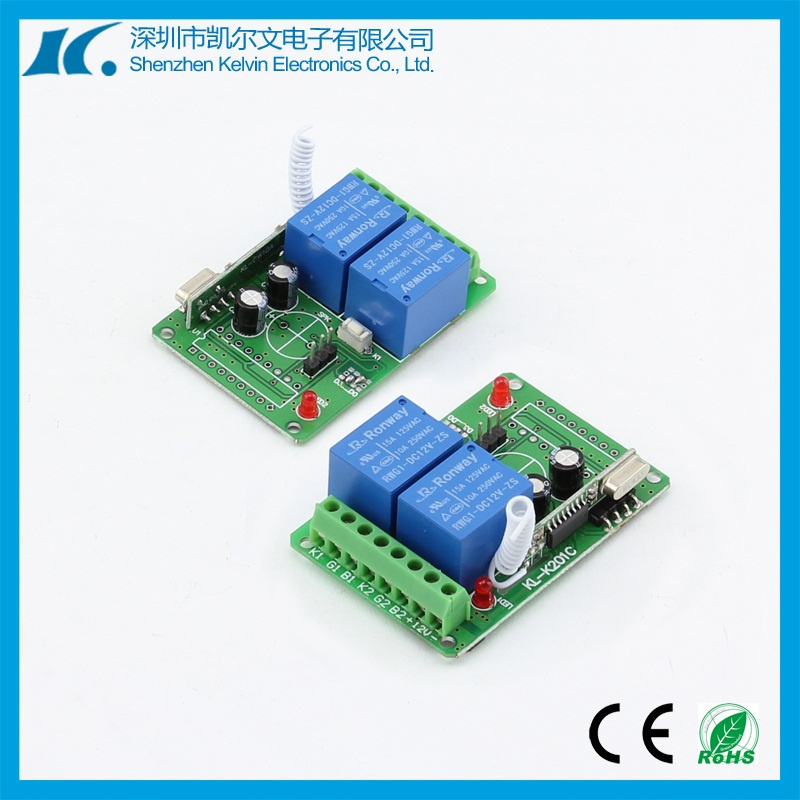

Universal Electric Remote Control on off Switch with 433MHz Kl-K201c

Name: Universal Electric Remote Control on off Switch with 433MHz Kl-K201c
Brand: all-electronics-online.com
SKU: 819508235
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 2.5-3/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL-K201C
Channels:	2
Frequency:	433MHz, 315MHz, 868MHz, Customized
Sensitivity:	-103dBm, Customized
Voltage:	DC12V/24V, Optional
Working Mode:	Momentary, Latching, Toggle
Output:	Switching on/off
Max Load:	7A(Relay Contact)

Product Description

Universal Electric Remote Control on off Switch with 433MHz KL-K201C
Operation Method:

1. Match code:
Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator flashes 3 times, matching is done. Maximum 20 remote controls can be matched.

2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.

3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary

Tech Data:

DC 12V 2-Channel Remote Control Switch KL-K201C

Input	DC 12V (DC9V, 24V can be customized)
Channels	2
Working Current	8mA
Working Frequency	433MHz / 315MHz, Optional
Receiving Sensitivity	-103dBm
Decoding Type	Leaning Code(EV1527) / Fixed Code(PT2262)
Working Mode	Momentary / Toggle / Latching
Output Mode	Switching Signal (Dry Contact)
Max Load	5A (Relay Contact)
Dimension	584015mm

Working Mode:

1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.

2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.

3. Latching: Press remote button A, the relay A is on, B is off; press button B, the relay B is on, A is off.

Wiring Way & Diagram:

B=Normally Closed, K=Normally Open, G=Common.

Please refer to below picture as wiring diagram:
