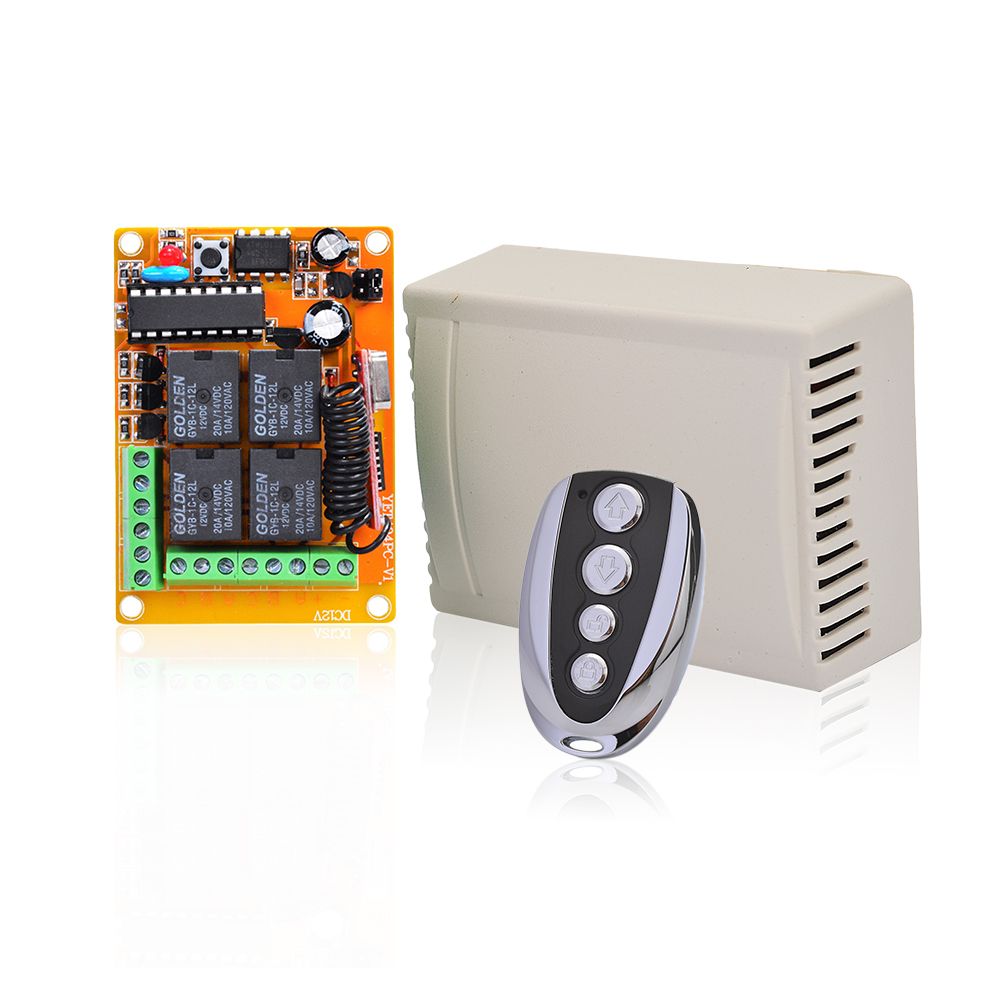

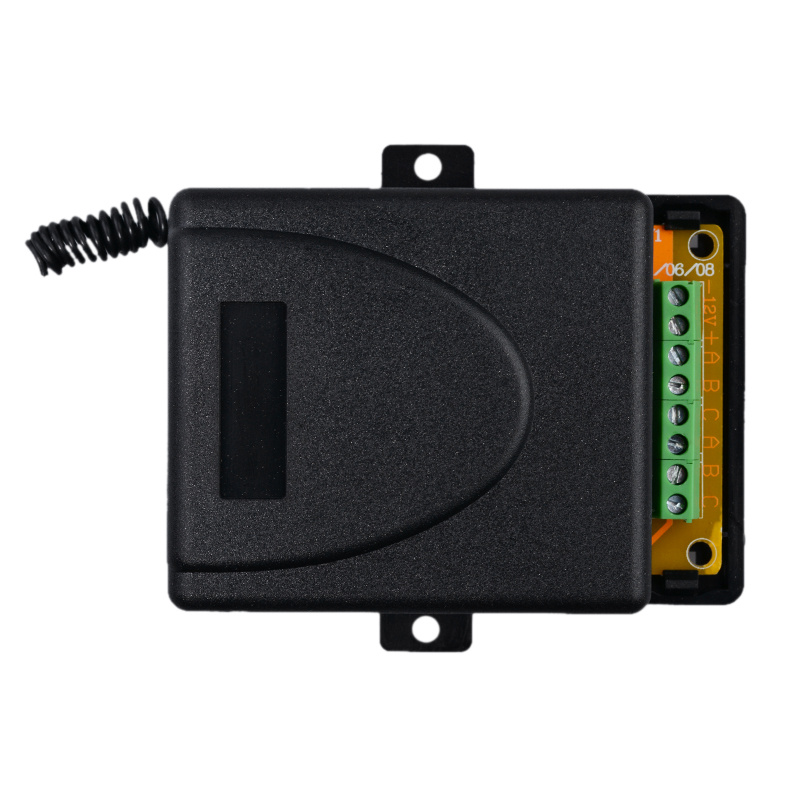

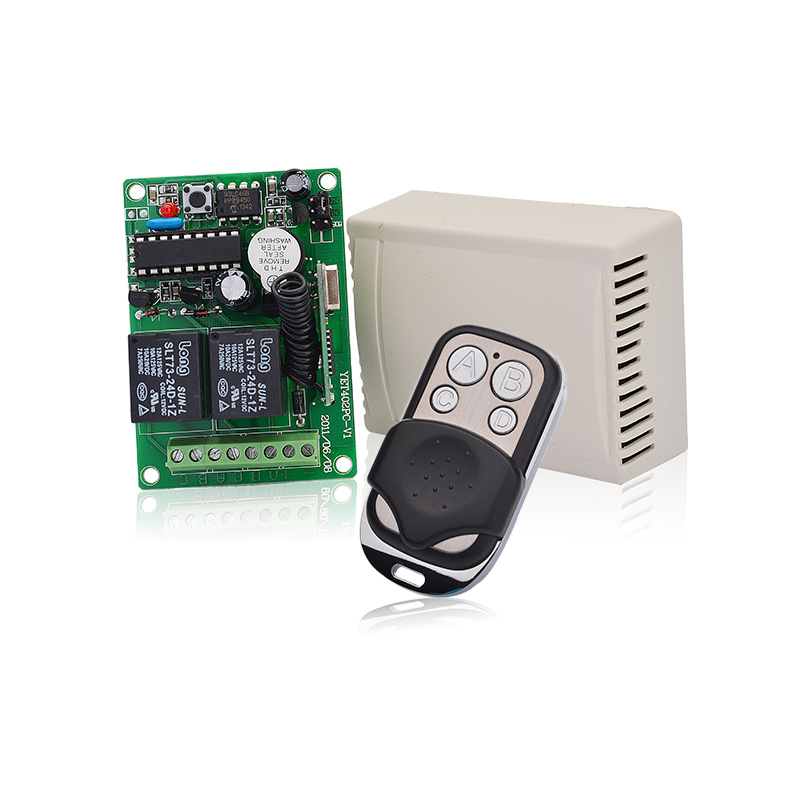

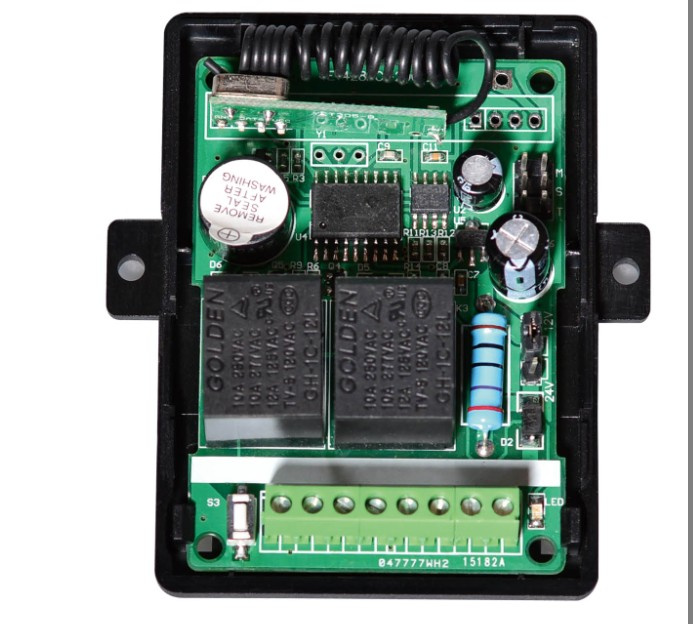

Universal Indoor Outdoor Wireless Remote Controll Transmitter Receiver Switch

Name: Universal Indoor Outdoor Wireless Remote Controll Transmitter Receiver Switch
Brand: all-electronics-online.com
SKU: 837309415
Availability: InStock
Rating: 4.4 (138 reviews)

Price:	US $ 3.55-5/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YET428
Ransmitting Frequency:	315m/433.92m/Oters
For:	Universal Indoor Outdoor Wireless Remote Controll
Remote Controlcapacity:	400
Receiving Sensitivity:≥:	-112dBm
Working Temperature:	-40°c - +80°c
Control Voltage:	AC/DC 12V/24V
Use Range:	Industrial ,Car,Motorcycle,Door Opener,Windows Con
Sensitivity:	≥-105dBm
Oscillation Resistance:	Under Your Requests
Channels:	2 Channel
Application:	Alarm
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Material:	Plastic
Voltage:	12V/24V
Battery Type:	No Battery

Product Description

universal indoor outdoor wireless remote controll transmitter receiver switch

The way of output
A. Keeps 8 seconds-- "1" connect
B. Self-lock control -- "2" connect
C. Interlock -- "3" connect
D. Inching control--disconnect
(check the Circuit diagram for details)

2. Main Technique Data

Working voltage	DC12V/ 24V (optional)
Static working current	≤7mA
Working temperature	-40ºC to +80ºC
Receiving sensitive	≥-105dBm
Working frequency	315MHz,433MHz (optional)
Contact current	≤10A
Relay capacity	10A 250VAC or 10A 30VDC
Receive the type of encoding	a. encode learning code and fixed code b. encode rolling code alone (optional "a" or "b")
Maximum storage for transmitter	30pcs of learning or fixed code; 6pcs of rolling code
Size	62mm43.5mm30mm
