Universal RF 12V/24V 2 Channel Gate/Garage Door Remote Control Receiver
| Price: |
US $ 8-12/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
JH-RX03-TX41 |
| Product Name: |
Universal RF Remote Control Receiver |
| Frequency: |
433.92MHz (315MHz Optional) |
| Encoder Model: |
Fixed Code and Rolling Code |
| Mode: |
Bistable and Monostable Is Optional |
| Memory: |
140 Codes |
| Working Current: |
50-200mA |
| Sensitivity: |
-107dBm |
| Working Voltage: |
12V-24VDC |
| Channel: |
2 (1 CH Optional) |
| Range: |
60-150m in Unobstructed Area |
| Application: |
Remote Control Receiver |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Voltage: |
12V Remote Control Receiver |
| Battery Type: |
27A Remote Control Receiver |
Product Description

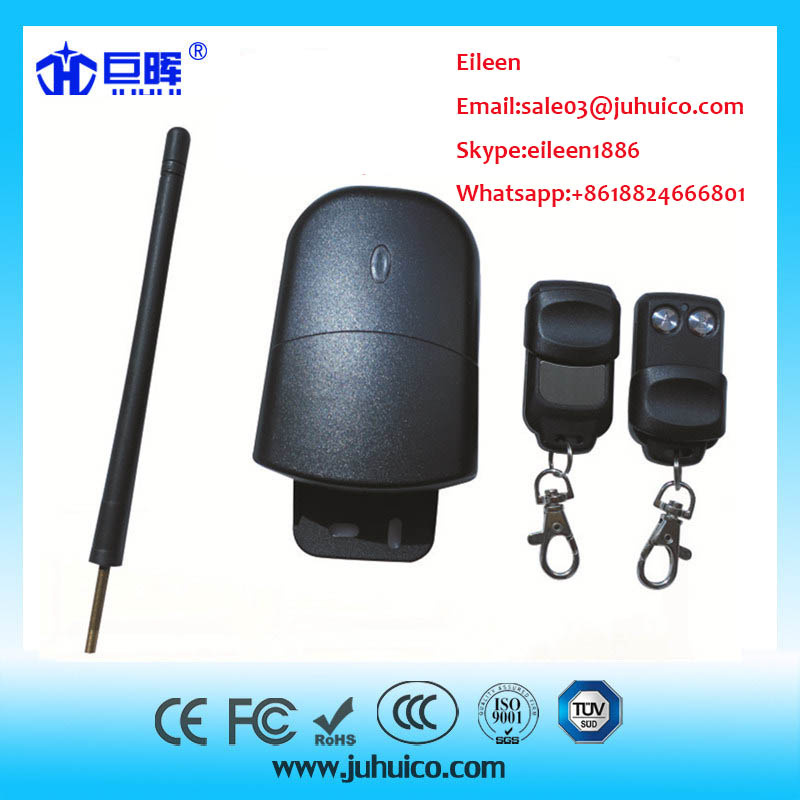

Universal RF 12V/24V 2 Channel Gate/Garage Door Remote Control Receiver with Hcs301 Code
Specification:
| Product name | Receiver |
| Model No. | JH-RX03-TX41,with the remote control TX41 |
| Working voltage | 12V-24VDC |
| Frequency | 433.92MHz (315MHz optional) |
| Channel | 2-CH(1CH optional) |
| Receiver mode | Superheterodyne |
| Encode | fixed code and rolling code |
| Static current | 5mA±2 |
| Working current | 50-200mA |
| Range | 60-150m in unobstructed area |
| Memory capacity | 140 remotes controls |
| Wire connect | Terminal block |
|
| Control mode | Continuous output (bistable) or momentary output(monostable). |
|
| Receive sensitivity | -113dBm (max) |
| Dimensions(L x W x T) | 125*75*35mm |
|
| Net weight | 96g |
| Certification | ISO9001:2000,SGS,D&B,BUREAU, CE, RoHS and Intertek |
| Output mode | Dry contact (+12V or -12V optional) |
Usage:
The remote controller can be made with different decode and frequency and channels as your request. They are widely used in garage door remote controller, rolling door remote controller, sliding gate, remote controller electric vehicle alarm remote controller, motorcycle alarm remote controller, ceiling fan remote controller etc.
A. Feature
1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friend. We can produce them with different code remote control as your request .the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver etc.
B. Function
LED:
1. When electrified, LED lights 1 second, it's ready to work.
2. LEARNING CODE: Press P1 (1 second at least), LED lights (1 second) and goes off( 1 second) and lights again, now press any button of the remote, if the code is learnt LED will go off. Then release the button of the remote. If the remote cannot read the signal, LED will light for 10 seconds and finish learning status.
3. PROGRAMMING METHOD:
A. Press P1 one time, LED flashes one time and the first channel (monostable) activates.
B. Press P1 twice, LED flashes twice and the second channel (monostable) activates.
C. Press P1 three times, LED flashes three times and the first channel (bistable) activates.
D. Press P1 four times, LED flashes four times and the second channel (bistable) activates.
Each channel can learn 140 codes at least.
It supports all the codes including fixed code and rolling code.
4. DELETING FUNCTION:
A. Delete one code: Press P2 for about 1 second and release, LED lights, press the button that you want to delete the code. Then it's ok.
B. Delete all the codes: Long press P2 for 8 seconds, LED lights, release your hand and LED goes off, now all the codes are deleted.
5. NOTICE:
A. Since the data of rolling code is relatively bigger, it'll take you a little more time to operate remote with rolling code than that with fixed code.
B. If you learning same code for more than one time, only the last code is memorized.
Packaging &Shipping:| Package | 500PCS/Ctn |
| Ctn Dimension | 53.5*22.5*35 cm |
| Shipment | by air, by sea, DHL, TNT etc. |
Transaction Terms: | Payment terms | Advanced T/T:30% as deposit,the balance before shipment Paypal, Western union. |
| Trade terms | FOB or EXW |
| Lead time | 1-5 days for samples 15-20 days for order |
Company Information:
Quanzhou Juhui Electronic Co., Ltd is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( key fob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator). We have been manufacturing electronic product for 10 years . Our professional R&D staff can meet your different request . We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.FAQ:1.What frequency do you need?
433.92 Mhz or 315 Mhz
2.What encode do you need?
rolling code : HCS301, HCS300, HCS200 etc.
learning code: PT2240, EV1527 etc.
fixed code :SC2260 , SC2262, etc.
3. How can i pay for products?
Payment: T/T ,Paypal ,Western Union.
4. Do your products carry warranty?
Yes, 6 month or more and permanent service.
5. How do i purchase more than 1 remote?
Please contact with me,we offer samples to test before ordering.
Quanzhou Juhui Electronic Co., Ltd...Is a high-tech company that specializes in designing, manufacturing and selling Alarm system (motorcycle alarm system, electric vehicles), motorcycle power lock, wireless RF receiver (remote controller), RF Remote control ( keyfob and transmitter), RF module (wireless transmitter Module and Receiver Module), Remote Control Duplicator( face to face copying duplicator and machine copy duplicator),
Our alarm systems are widely used in every brand motorcycle and electric vehicles. There are many alarm models in different prices for your choices. Our high quality RF wireless remote control, remote control duplicator and receiver are widely used as advanced accessory in garage door, rolling door, sliding gate, motorcycle alarm etc.
Our company professional R&D staff can meet your different request. We provide different kinds of products with high quality and favorable price. We are still developing and designing new products according to market demand.
We stick to management principle: Quality first, service first, continuous improvement and innovation. Our quality objective is "zero defect, zero complaint". We hope to promote mutual benefit and build long term business with customers all over the world by joint efforts.
