Universal RF Wireless 433MHz Remote Control Switch Kl-K110X

Name: Universal RF Wireless 433MHz Remote Control Switch Kl-K110X
Brand: all-electronics-online.com
SKU: 826696045
Availability: InStock
Rating: 5 (124 reviews)

Price:	US $ 12-15/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KL-K111X
Ambient Temperature:	-20c -- +50c
Maximum Current:	3A
Operating Voltage:	AC220V, Customized 110V
Frequency:	315MHz, 433MHz, Optional
Modulation Way:	Ask/Ook
Receiver Sensitivity:	Learning Code EV1527
Output Way:	on/off Switch or Output Power
Dimension:	954025mm
Weight:	50g (Case)
Work Mode:	Momentary, Latched, Toggle
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	50-100m
Voltage:	12V
Material:	Plastic
Battery Type:	Button Battery

Product Description

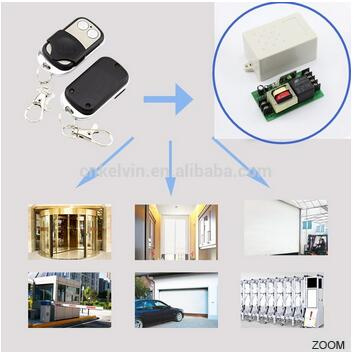

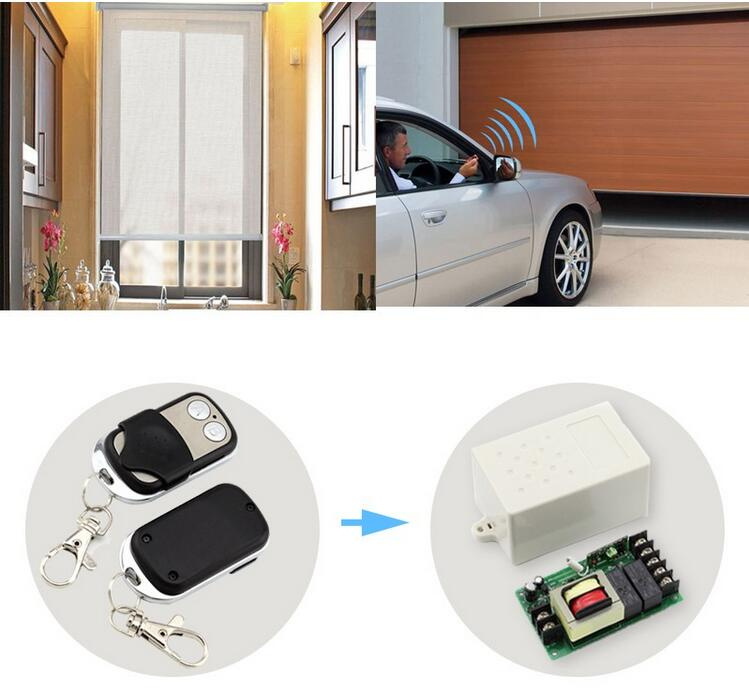

Universal RF wireless 433mhz remote control switch KL-K111X

Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press any buttons of remote control, if indicator lights flashes 3 times, match code successfully.
Maximum 20 remote controls can be matched.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.
3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggle
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary

Tech Data:

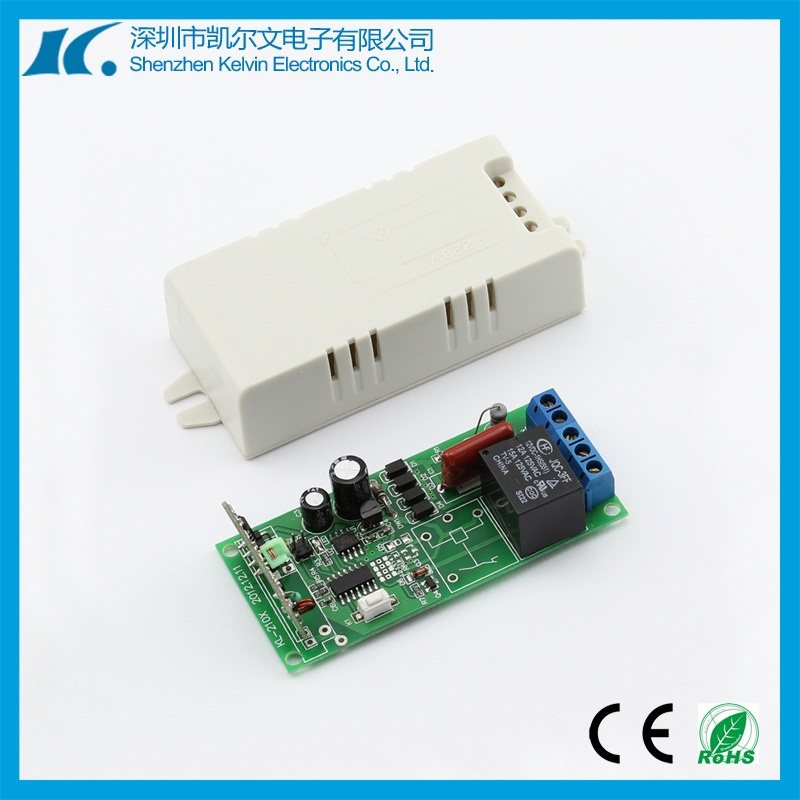

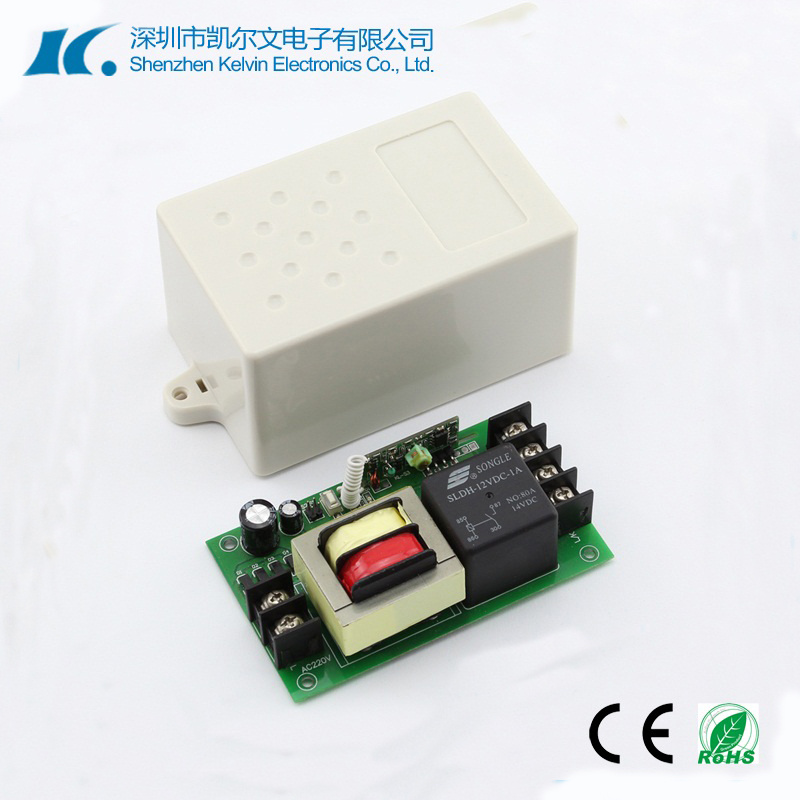

AC 220V 1-Ch Remote Control Switch KL-K111X

Input	AC 220V (AC110V is customized)
Channels	1
Quiescent Current	12mA
Working Frequency	433MHz / 315MHz, Optional
Receiving Sensitivity	-103dBm
Decoding Type	Learning Code(EV1527) / Fixed Code(PT2262)
Working Mode	Momentary / Toggle / Latching
Output	Switching Signal (Dry Contact) / Active Switching Signal (Wet Contact)
Max Load	50A (Relay Contact)
Dimension	1006550mm

Working Mode:
1. Non-lock/Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Self-lock/Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Inter lock/Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.

Wiring Way & Diagram:
B=Normally Closed, K=Normally Open, G=Common.
Please refer to below diagram as wiring for 2 different output modes:
