| Prod Model: |
KL200-4K |
| Buttons Sum: |
2 or 4 |
| Operating Voltage: |
DC 12V |
| Operating Current: |
10mA |
| Operating Frequency: |
315MHz / 433MHz / Customized |
| Application: |
Cars, Garage Doors , Gates Doors, Alarm Systems |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
Product Description

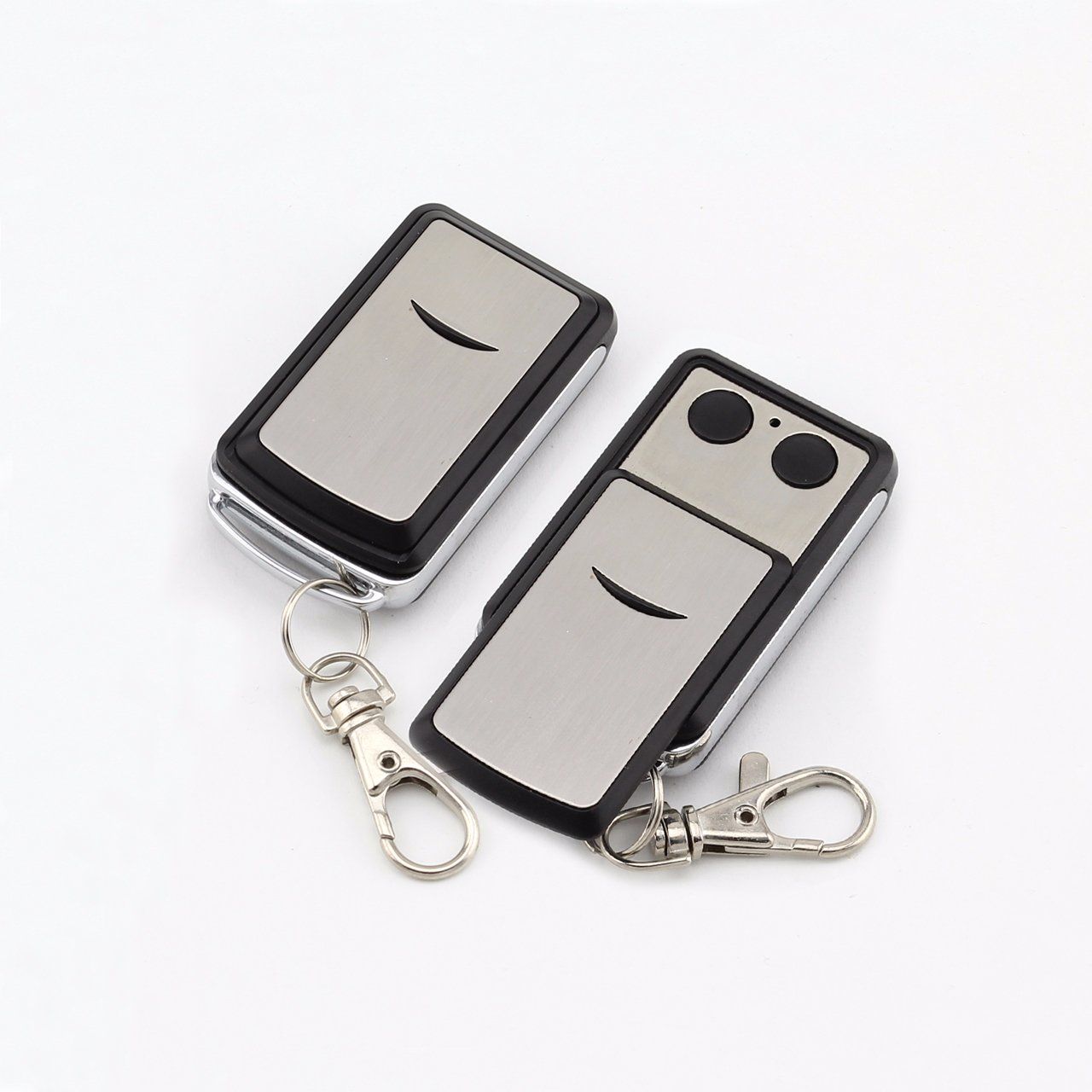

Universal use remote control Keyfob for face to face copy
Use range
Kelvin 4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors , Gates doors, Alarm systems etc. Fixed frequency (433.92mhz or 315mhz) for copying 99.99% common fixed and learning code remote controls.
Face to face copy the functions of your original remote by this 4-channel RF remote control duplicator with code learning functions and you'll always have a back up.
Duplicate Your Existing Remote Controllers:
Vehicle central locking systems
Garage doors
Electronic gates
Electrical appliances
Car sunroofs
Heating systems
| Technical Parameters |
| Model name | KL200-4K |
| Buttons Sum | 2 or 4 |
| Operating Voltage | DC 12V |
| Operating Current | 11mA |
| Operating Frequency | 315MHz / 433.92MHz / Customized |
| Transmitting Distance | 100m |
| Battery | 27A 12V |
| Modulation way | ASK |
| Ambient Temperature | -20ºC ~ +50ºC |
| Color | Metal frame black |
| Use | Cars, garage doors , gates doors, alarm systems etc |
| Dimension | 58*39*14mm |
| Weight | 40g |
Advantages
Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage.
Works with the following remote control modules (please check your existing remote control before ordering): Your remotes also should be Fixed code or Learning code.
2260, 2262, FP527, HT12D , HT12E , PT2240, S026-1 ,S026-2 ,S026-3 ,S026-4, SMC918.... etc
Please note this does not copy rolling code
Methods of operation
1, Clear out code:
Press A and B at the same time, two seconds later, LED flashes three times, followed by a continuous fast blinking. Indicates that the remote control code stored was deleted.
2, Duplicating (learning)
Right Hands press original remote control A, and left hand press remote control duplicator A', 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A',B-B') three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. That's mean successfully copied.
3, Recovery code
Press A and C at same time , 3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored.
The other way, you can delete all and relearn them again.
Key features
Prevents loss and replaces your old remote controls
Self learning remote control
Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more
Copies most radio frequency fixed code remote controls
Learning face to face in secon
Encoder IC compatibility list
PT2240 / PT2242
2260 / 2262 / 2264
EV1527 / FP527
HT12D / HT12E
HT600 / HT640 / HT680
HT6010 / HT6012 / HT6013 / HT6014 / HT6207
AX5026-1 / AX5026-2 / AX5026-3 / AX5026-4
AX5326-3 / AX5326-4
SMC918 / MC145026
NOTICE: Please check your existing remote control with our compatibility list before ordering.
Applications
Wireless home security system
Car anti-theft alarm system
Car keyless entry system
Car sunroof remote control
Vehicle central locking system
Wireless call system
Home appliance / industrial automation
Electronic garage door / gate opener
Remote toy control
Remote fan / lighting control
Wireless motor-driven curtain
Heating systems
Wire elimination project
Datasheet
Antenna type: Internal
frequency available for volume order
Frequency synthesizer: SAW resonator for fixed frequency model, with stability better than 75KHz from the center frequency
Learning mode: Original code is learned automatically, notifying the result through the LED built-in
Channels: 4
Color: Black with metallic frame
Material: ABS / Metallic ABS
Button number: 4
Power and battery
Battery type: 12V 27A Alkaline Battery
Battery life: 1 year (typical)
Environmental requirements
Operating temperature: -4° to 122° F (-20° to 50° C)
Relative humidity: 5% to 95% noncondensing
