up to 200m Control Distance Radio Remote Control (C-E1Q)
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
C-E1Q |
| Product Name: |
Industrial Wireless Radio Remote Control |
| Unique Code: |
Over 4.3billon Unique ID Codes |
| Temperature Range: |
-35ºC-----------+80ºC |
| Model No: |
F21-C-E1q |
| Application: |
Lifting Equipment |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Voltage: |
3V |
| Battery Type: |
AA Battery |
| Transmission Distance: |
>200m |
| Material: |
Glass Fiber |
Product Description
Product Description

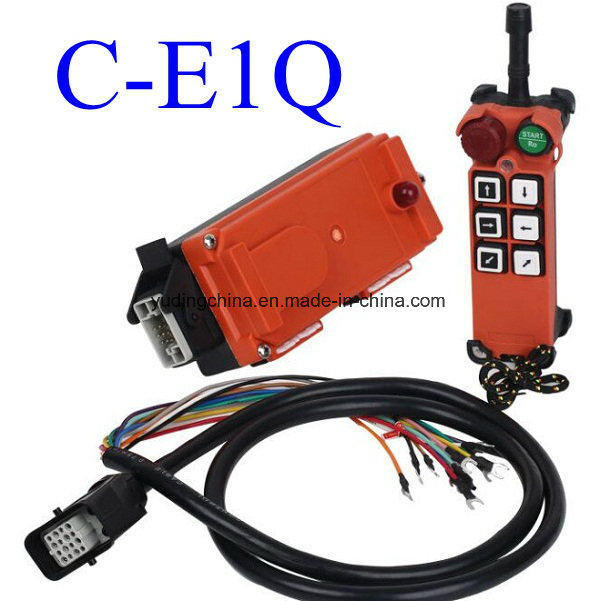

200m Control Distance Radio Remote Control (C-E1Q)
Applications of Crane Remote Control:
single hook electric cable hoist,monorails, single speed electric hoist or electric single speed hoist crane,and used for the industrial remote control which are under 6 connection
Features of Remote Control:
· Control points up to 6.
· With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
· Set the internal functions by computer Interface.
· with the Rotate key switch to guarantee the safety.
· UP/DOWN,EAST/WEST,SOUTH/NORTH push buttons can be set ordinary,jump strokes,mutural inhibition or not.
· START button can be set start,inching,jump strokes,ordinary etc.Company Information:HeNan dirk Electronic Co., Ltd is an industrial radio remote control manufacturer in china .established in August, 2010,With more than 10 years experience on this business area. headquartered in Zhengzhou, Henan province.
Dirk has so many experts in the area to assure workers safety and productivity , Yuding are becoming one of the leading companies in this industry in china. Our main products is :F21 Series ,F23 series ,F24-60 Dual Joystick .all these remote controls are easy to operate to keep workers safety and productivity.All These products are CE & FCC Certificate . Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operate according to ISO9001:2008 & international quality control system to guarantee the products quality.competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 provinces.we also have built long-term business relationship with the foreign customers.
Technical Specifications:
200m Control Distance Radio Remote Control (C-E1Q)
Unique I.D.Code | over 4.3 billion |
| Numbers of Buttons | 6 Single Step buttons,1 START button,1 MUSHROOM button |
| Button Marking | arrow tip |
| Transmitter Power Supply | four 1.5v Batteries(AA size) ( up to 3 months usage) |
| Receiver Power Supply | AC380V/220V/110V/48V/36V/24V/12V OR DC12V |
| Relays | 6 Relays control Functions,1 relay control EMS and 1 relay reserve |
| Output relays | 5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse) |
| Operating Frequency | 425.5925-446.725MHz(VHF) |
| Channel Spacing | 0.2675MHz |
| Working Temperature | -45ºC~ +80ºC |
| Protection Degree | IP65 |
| Channel | 80CH |
| Interface | Aviation Plug Cable Output |
Standard Configuration:
One Transmitter(with strap),
One Reiceiver
Receiver with 1m Cable,
One Operation and maintain manual
Our Products Advantages:
All the products have got CE,FCC,ISO certificate.
All operate process according to ISO9001:2008 and international quality control system.
Easy to operate to keep workers safety.
One year warranty.
OEM orders can be acceptable.Certificates:CE,FCC,ISO9001:2008
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
