| Prod Model: |
JYMU-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
5230g |
| Output Voltage: |
110V, 220V, 230V, 240V |
| Output Frequency: |
50/60Hz |
| Warranty: |
18 Months |
| Nominal Efficiency: |
>80% |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Electric Razor |
| Brand: |
Jyins |
Product Description

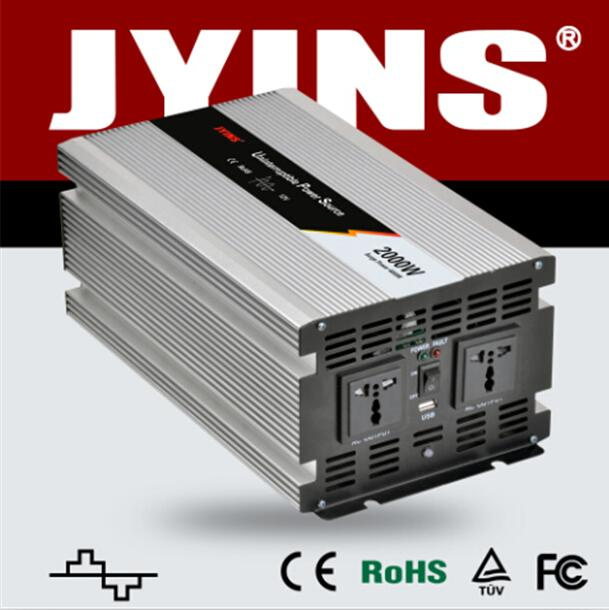

Ups 2000w modified sine wave power inverter
Products Description:
JYINS UPS series inverter with charger acts as a charger, an inverter and an off-line UPS at the same time. Enhanced by transit technology will ensure your appliances operating continuously while going out of household power supply. It can select DC or AC input fully automatically. Short s less 10 millisecond transfer time between two inputs specially protect your system from possiblity of data lost.
Products Function:
· Ultra-Fast Transfer Relay: Reduce transfer time between bypass mode and inverter mode, reduce possiblity of voltage drop.
· L. I. T: Low interference technology
· Universal protection circuit: Over load, long life for battery, earth fault, short circuit, over temperature, soft start
· Turbo cooling: Keep the inverter surface cool and higher efficiency
· High Efficiet: Wide-range high efficient circuit maximize the operating time and more energy saving
· Automatic 3 stage internal battery charger
· U. P. S: Uninterrupitable Power Source
· Decide your own AC backup time by choosing different batteries!
· USB port: 5V 500mA
Protection Functions:
· Low voltage alarm & Shutdown
· Over voltage protection
· Overload protection
· Over temperature protection
· Short circuit protection
· Reverse Polarity protection
· Soft start
· Auto. Reset after being in protected
· Earth leakage protection
| Model | JYMU2K-121 | JYMU2K-122 | JYMU2K-241 | JYMU2K-242 |
| Rated Power | 2000W |
| Peak Power | 4000W |
| Output Waveform | Modified Sine Wave |
| Inverter | Input voltage | 12V | 24V |
| Output Voltage | 110V | 230V | 110V | 230V |
| Charger | Input voltage | AC 80-150V | AC 195-265V |
| Output Voltage | 12V | 24V |
| Max.Current | 10A | 5A |
| Transfer Time | <15ms |
| USB Port | 5V,500mA(Optional) |
| Protection Function | Bat.Low Voltage Alarm&Shut Down,Overload,Over Temperature,Overvoltage,ShortCircuit,Reverse Polarity,Overcharge etc. |
| Dimension | 295x180x130mm(L×W×H) |
| N.W./unit | 5230g |
| QTY/Ctn | 4Pcs |
| Packing | Gift box |
| Meas./Ctn | 51*41*42cm |
| Warranty | 18Months |
