| Prod Model: |
AGM Battery CS12-200D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AGM Battery 12V |
| Capacity: |
200ah AGM Battery |
| Weight: |
56kg / AGM Battery |
| Delivery Time: |
7days |
| Export Markets: |
Global |
| Warranty: |
3 Years |
| Expected Cycle Time: |
10-12 Years |
| Brand: |
Cspower/OEM |
| Size: |
L*W*H=522*240*216mm |
| Terminal Type: |
AGM Battery T11 |
| Type: |
Lead-Acid Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Rechargeable: |
Chargeable |
| Shape: |
AGM Battery |
Product Description

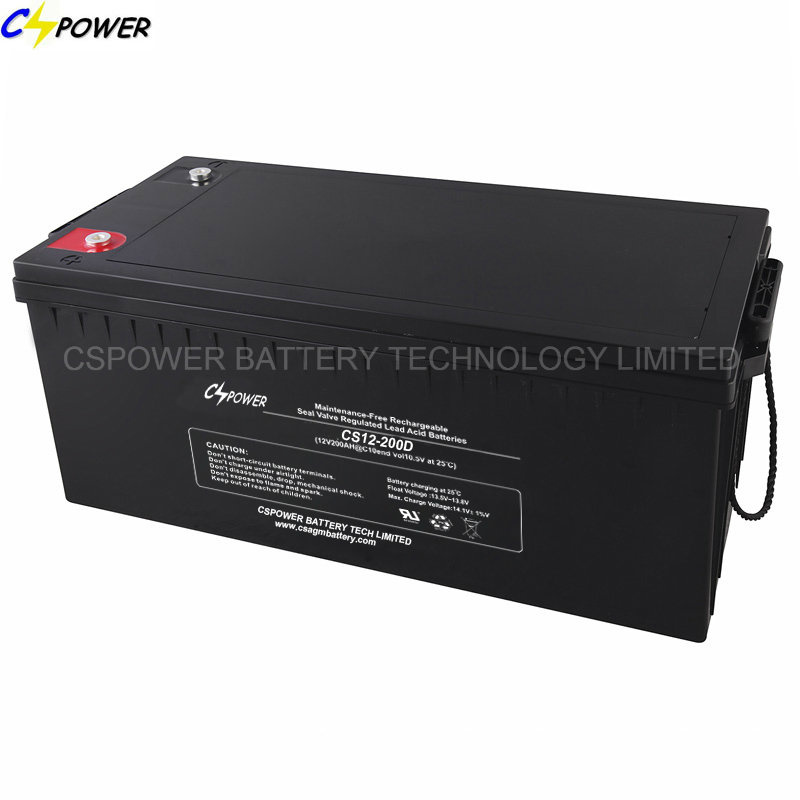

UPS Battery 12V200ah /AGM Battery / 12V Battery CS120-12
Sealed free maintenance lead acid battery, AGM Battery, Valve regulated battery up to 12V300Ah.Deep Cycle batteries12V100ah,12V150ah,12V180ah,12V200ah,12V230h,
12V250ah,12V300ah Solar accumulator solar gel battery 12V300Ah/2V3000Ah.
1.Solar storage battery deep cycle solar battery
2.AGM batteries 12v200ah for wind and solar system
3.Water proof, Non Spillable
4.Long service life 15years,3years warranty
5.sealed free maintenance for solar&wind power
UPS Battery 12V200ah /AGM Battery / 12V Battery Features
· Sealed and maintenance free operation
· Non-Spillable construction design.
· Safety valve installation for explosion proof.
· High quality and high reliability.
· Exceptional deep discharge recovery performance.
· Low self discharge characteristic.
· Flexibility design for multiple install positions
· The operating ambient temperature -40 °C to +65 °C
12V200ah Deep Cycle AGM Battery with 3years warranty Main Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.
Terms Details
Payment Terms: T/T
Minimum Order: 10 Units
FOB Port: Guangzhou/Shenzhen/Hongkong
Lead Time: 5 - 7 days
Product Certificate: CE, ISO, UL, IEC
Notice
- Matrix series batteries have acid in the case and are fully charged before leaving factory. Do not attempt to dismantle the battery, if accidental skin/eye contact is made with electrolyte, seek medical advice immediately.
- Do not use a new battery with an old one.
- Do not use the battery in sealed container.
- Each battery should have detailed record including the ex-factory date, installing date and using record.
- Check the connection of wire in a fixed interval (once a year). If there is any looseness should tighten the wire.
- Wipe the surface of the battery with soft cloth in a fixed interval (once three months) and always keep the battery clean.
- Avoid using any kind of organic solvents for cleaning the surface of the battery.
Why choose us
1. Door to door service.
2. Low cost raw material with high quality. we have own plates factory, can manufacture plates by ourselves.
3. Independent designer with more than 10 years design experience.
4. Chief engineers with more than 20years experience in battery field.
5. Product with the international market step.
6. We focus on quality, never use faulse gel and recycle lead.
7. All production lines in our factory are automatic and imported from Germany.
8. Our products are exported to Middle East, Europe, France, Canada, Japan, Korea and else.
9. We would like stand with you in same line to open market with long term business.
Our goal
Creative.
Excellent quality.
Top service.
Stand same line with customer.
Long term business.
Welcome to ask me for price reference on specific models and quantity of batteries at any time.
We are sure any your question will get our prompt reply in 24 hours:)
| Model NO. | Nominal
Voltage
(V) | Rated Capacity(AH) 10hrs/25 | Approx. Weight | Dimensions(mm) | Terminal Type |
| kg | lbs | Length | Width | Height | Total Height |
| mm | inch | mm | inch | mm | inch | mm | inch |
| CS12-7D | 12 | 7 | 2.2 | 4.84 | 151 | 5.94 | 65 | 2.56 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-12D | 12 | 12 | 3.65 | 8.03 | 151 | 5.94 | 98 | 3.86 | 94 | 3.70 | 100 | 3.94 | T2 |
| CS12-18D | 12 | 18 | 5.5 | 12.1 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-20D | 12 | 20 | 5.8 | 12.76 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3 |
| CS12-22D | 12 | 22 | 6.5 | 14.3 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | T3/T12 |
| CS12-24D | 12 | 24 | 8.1 | 17.82 | 166 | 6.54 | 126 | 4.96 | 174 | 6.5 | 181 | 7.13 | T32 |
| CS12-28D | 12 | 28 | 8.9 | 19.58 | 175 | 6.89 | 166 | 6.54 | 125 | 4.92 | 125 | 4.92 | T4 |
| CS12-33D | 12 | 33 | 10.2 | 22.44 | 196 | 7.7 | 131 | 5.16 | 155 | 6.10 | 180 | 7.09 | T16 |
| CS12-35D | 12 | 35 | 10.4 | 22.88 | 197 | 7.76 | 130 | 5.12 | 163 | 6.42 | 180 | 7.09 | T6/T16 |
| CS12-40D | 12 | 40 | 13.5 | 29.7 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T12 |
| CS12-45D | 12 | 45 | 14.5 | 31.9 | 197 | 7.73 | 166 | 6.54 | 174 | 6.85 | 181 | 7.13 | T5 |
| CS12-55D | 12 | 55 | 16.2 | 35.64 | 230 | 9.06 | 138 | 5.43 | 211 | 8.30 | 229 | 9.01 | T9/16 |
| CS12-65D | 12 | 65 | 20.5 | 45.10 | 350 | 13.8 | 166 | 6.54 | 179 | 7.05 | 179 | 7.05 | T9 |
| CS12-70D | 12 | 70 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.3 | 215 | 8.46 | T14 |
| CS12-80D | 12 | 80 | 23.4 | 51.5 | 260 | 10.2 | 169 | 6.65 | 211 | 8.30 | 229 | 8.46 | T14 |
| CS12-90D | 12 | 90 | 27 | 59.40 | 307 | 12.1 | 169 | 6.65 | 211 | 8.30 | 215 | 8.46 | T16 |
| CS12-100D | 12 | 100 | 31.1 | 68.42 | 331 | 13.03 | 173 | 6.81 | 213 | 8.39 | 233 | 9.17 | T10 |
| CS12-120D | 12 | 120 | 36.5 | 80.3 | 407 | 16 | 174 | 6.85 | 209 | 8.23 | 233 | 9.17 | T11 |
| CS12-134D | 12 | 134 | 41 | 90.20 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | T9/T20 |
| CS12-150D | 12 | 150 | 45 | 99.00 | 484 | 19.1 | 171 | 6.73 | 241 | 9.49 | 241 | 9.49 | T11 |
| CS12-180D | 12 | 180 | 56.5 | 124.3 | 522 | 20.6 | 240 | 9.45 | 216 | 8.5 | 240 | 9.45 | T9 |
| CS12-200D | 12 | 200 | 60 | 132 | 522 | 20.6 | 240 | 9.45 | 216 | 8.50 | 240 | 9.45 | T11 |
| CS12-230D | 12 | 230 | 64 | 140.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 240 | 9.45 | T9 |
| CS12-250D | 12 | 250 | 69 | 151.8 | 520 | 20.5 | 268 | 10.55 | 220 | 8.66 | 243 | 9.57 | T11 |
| CS6-100D | 6 | 100 | 17 | 37.4 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-105D | 6 | 105 | 18.5 | 40.70 | 280 | 11.02 | 128 | 5.03 | 203 | 7.99 | 203 | 7.99 | T16 |
| CS6-120D | 6 | 120 | 19 | 41.80 | 195 | 7.67 | 170 | 6.69 | 206 | 8.11 | 211 | 8.31 | T16 |
| CS6-150D | 6 | 150 | 27 | 59.40 | 260 | 10.2 | 180 | 7.09 | 247 | 9.22 | 252 | 9.92 | T16 |
| CS6-180D | 6 | 180 | 28 | 63.80 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 252 | 9.92 | T16 |
| CS6-200D | 6 | 200 | 29 | 61.60 | 306 | 12.04 | 169 | 6.63 | 223 | 8.77 | 228 | 8.97 | T16 |
| CS6-225D | 6 | 225 | 34.5 | 75.90 | 243 | 9.57 | 188 | 7.4 | 275 | 10.83 | 275 | 10.83 | T16 |
| CL2-300 | 2 | 300 | 18.8 | 41.4 | 171 | 6.7 | 151 | 5.9 | 330 | 13.0 | 366 | 14.4 | T20 |
| CL2-350 | 2 | 350 | 24.5 | 53.90 | 211 | 8.31 | 176 | 6.92 | 331 | 13 | 356 | 14 | T20 |
| CL2-400 | 2 | 400 | 26.7 | 58.7 | 210 | 8.27 | 176 | 6.93 | 329 | 13.0 | 366 | 14.4 | T20 |
| CL2-500 | 2 | 500 | 31 | 68.20 | 242 | 9.5 | 172 | 6.8 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-600 | 2 | 600 | 38 | 83.80 | 301 | 11.9 | 175 | 6.89 | 331 | 13.0 | 366 | 14.4 | T20 |
| CL2-800 | 2 | 800 | 53 | 116.60 | 410 | 16.1 | 175 | 6.89 | 330 | 13.3 | 365 | 14.4 | T20 |
| CL2-1000 | 2 | 1000 | 63 | 138.60 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 356 | 14.02 | T20 |
| CL2-1500 | 2 | 1500 | 101 | 223 | 401 | 15.8 | 351 | 13.8 | 342 | 13.5 | 369 | 14.5 | T20 |
| CL2-2000 | 2 | 2000 | 132 | 290. | 491 | 19.3 | 351 | 13.8 | 343 | 13.5 | 369 | 14.5 | T20 |
| CL2-3000 | 2 | 3000 | 195 | 430 | 710 | 28.0 | 352 | 13.9 | 342 | 13.5 | 369 | 14.5 | 20
|
