| Prod Model: |
GN60 |
| Type: |
Ni-CD Battery |
| Usage: |
Railway, Substation |
| Nominal Voltage: |
1.2V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
HengMing ---Specialized in NiCd Batteries
The HengMing Cell range meet, exceed the requirement of IEC60623 standard. There are low, medium, high, ultra high rate discharge types.
KPL=GN Type(Low Discharge Rate Cells)
KPL Series Low rate nickel-cadmium battery is made of pocket plate. The battery is designed for general purpose and stand-by applicatons such as railway signaling, Alarms, Telecommunication, UPS and operation of circuit breaker,etc.
Specifications
The data sheet of GN60 as follow:
1.cell type:GN60=KPL60 (low rate dicharge battery with long discharge time)
2.rated capacity:60AH
3.nominal voltage:1.2V
4.dimension: 1)135*53*370mm, container PP; 2)141*71*295mm,container PP.
5.container :ABS,PP
6.delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)

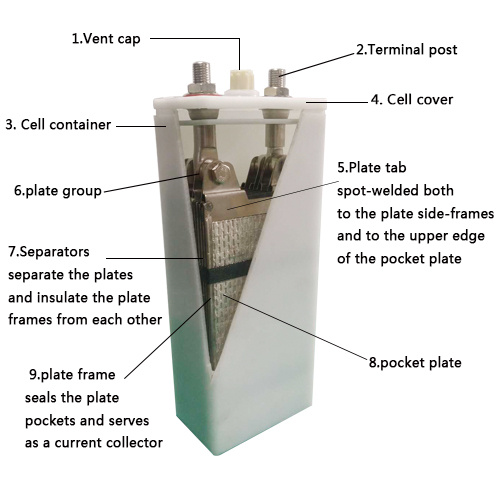

Cell Construction Features
The advantage of HENGMING battery
1.have packing room,welding room,assembling room,heating room,production room etc
2.wide operating temperature range from -25 °C to 45°C
3.long service life more than 20 years
4.Excellent charging efficiency and smooth discharge voltage
5.high resistance to mechanical and electrical abuse
6.plastic maerial is produced by our own factory
7.Low maintenance cost and replacement cost.
8.excellent sales man and engineers
9.fastest delivery time
10.30 years Ni-Cd manufacture experience
12.top three sales in China Ni-Cd battery field
Cell Capacity and Dimensions
| KPL=GN(Low Rate Type) Pocket----Pocket |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GN10 | 1.2 | 10 | 85 | 39 | 150 | M8 | 1 | 0.2 | ABS /PP |
| 82 | 33 | 245 | M10*1.5 | 0.95 | 0.2 | ABS |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10*1.5 | 2 | 0.6 | ABS |
| 82 | 43 | 258 | M10*1.5 | 1.3 | 0.3 | ABS /PP |
| 135 | 54 | 265 | M10*1.5 | 1.8 | 0.6 | ABS / PP |
| GN30 | 1.2 | 30 | 114 | 52 | 266 | M10*1.5 | 2.2 | 0.5 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.2 | 0.6 | ABS / PP |
| GN40 | 1.2 | 40 | 114 | 52 | 266 | M10*1.5 | 2.3 | 0.4 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.5 | 0.6 | ABS / PP |
| 141 | 66 | 226 | M10*1.5 | 2.6 | 0.5 | PP |
| 138 | 61 | 266 | M10*1.5 | 2.9 | 0.7 | ABS / PP |
| GN45 | 1.2 | 45 | 138 | 61 | 266 | M10*1.5 | 3 | 0.9 | ABS |
| 141 | 66 | 226 | M10*1.5 | 3 | 0.8 | PP |
| GN50 | 1.2 | 50 | 138 | 61 | 266 | M10*1.5 | 3.2 | 0.7 | ABS / PP |
| 141 | 71 | 295 | M10*1.5 | 3.5 | 0.9 | PP |
| GN60 | 1.2 | 60 | 135 | 53 | 370 | M10*1.5 | 3.9 | 1.0 | PP |
| 141 | 71 | 295 | M10*1.5 | 4 | 1.1 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.3 | 1.1 | ABS |
| 138 | 61 | 266 | M10*1.5 | 3.8 | 0.8 | ABS / PP |
| GN70 | 1.2 | 70 | 139 | 79 | 295 | M10*1.5 | 4.4 | 1.0 | ABS |
| 141 | 71 | 295 | M10*1.5 | 4 | 0.9 | PP |
| 2GN70 | 2.4 | 70 | 195 | 79 | 331 | M8 | 8.3 | 2.5 | PP |
| GN75 | 1.2 | 75 | 139 | 79 | 291 | M10 | 4.6 | 1.1 | ABS |
| GN80 | 1.2 | 80 | 141 | 71 | 295 | M10*1.5 | 4.6 | 0.9 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.6 | 1.1 | ABS |
| GN90 | 1.2 | 90 | 139 | 79 | 362 | M10*1.5 | 5.9 | 1.4 | ABS / PP |
| GN100 | 1.2 | 100 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN110 | 1.2 | 110 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN120 | 1.2 | 120 | 139 | 79 | 362 | M10*1.5 | 6.2 | 1.3 | ABS/PP |
| GN130 | 1.2 | 130 | 164 | 104 | 345 | M20×1.5 | 9 | 1.9 | ABS / PP |
| GN150 | 1.2 | 150 | 167 | 162 | 345 | M20×1.5 | 12 | 3.0 | ABS / PP |
| 164 | 104 | 345 | M20×1.5 | 9.3 | 2.0 | ABS / PP |
| GN180 | 1.2 | 180 | 167 | 162 | 345 | M20×1.5 | 13 | 3.3 | ABS / PP |
| 165 | 105 | 345 | M20×1.5 | 9.4 | 1.8 | ABS / PP |
| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20×1.5 | 14 | 3.3 | ABS / PP |
| 1.2 | 200 | 164 | 104 | 345 | M20×1.5 | 10 | 1.8 | ABS / PP |
| GN230 | 1.2 | 230 | 167 | 162 | 345 | M20×1.5 | 13.7 | 3.3 | ABS / PP |
| GN250 | 1.2 | 250 | 167 | 162 | 345 | M20×1.5 | 14 | 3.4 | ABS / PP |
| 277 | 145 | 420 | M16 | 15.7 | 2.6 | PP |
| GN300 | 1.2 | 300 | 282 | 170 | 348 | M20×1.5 | 22.5 | 5.0 | ABS |
| 176 | 161 | 540 | M16/20 | 20.5 | 4.7 | ABS |
| 277 | 145 | 450 | M16 | 21 | 6.0 | PP |
| GN400 | 1.2 | 400 | 282 | 170 | 348 | M20×1.5 | 25 | 5.0 | ABS |
| 277 | 145 | 450 | M16 | 22.6 | 6.0 | PP |
| 232 | 172 | 410 | M16 | 24.5 | 6.0 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20×1.5 | 33.6 | 7.8 | ABS |
| 277 | 145 | 490 | M20×1.5 | 22.6 | 6.0 | PP |
| GN600 | 1.2 | 600 | 285 | 172 | 490 | M20×1.5 | 34 | 7.5 | ABS |
| GN700 | 1.2 | 700 | 285 | 172 | 490 | M20×1.5 | 39 | 8.4 | ABS |
| GN800 | 1.2 | 800 | 395 | 185 | 560 | M20×1.5 | 57.5 | 15.5 | ABS |
| GN900 | 1.2 | 900 | 395 | 185 | 560 | M20×1.5 | 59 | 15.0 | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20×1.5 | 60 | 14.0 | ABS |
| GN1100 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 12.0 | ABS |
| GN1200 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 11.3 | ABS |
Application areas of Hengming batteries
GNC=KPX series:AGV; starting power; operating power of electrical system; etc.
GNG=KPH series:Staring power; UPS; etc.
GNZ=KPM series:Starting power; operating power of electric system; UPS etc.
GN=KPL series:Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc.
Revelant Photos
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
