| Prod Model: |
GN200 |
| Container Material: |
White PP |
| Certification: |
Ce/IEC60623/Crcc/ISO/Intertek/SGS |
| Type: |
Ni-CD Battery |
| Usage: |
Railway, Substation |
| Nominal Voltage: |
1.2V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
HengMing ---Specialized in NiCd Batteries
The data sheet of GN200 as follow:
1.cell item:GN200
2.type: ni-cd rechargeable batttery
3.capacity:200ah
4.nominal voltage:1.2v
5.long cycle life more than 20 years
6.free maintenance battery
7.low resistance
8.wide temperature range
KPL=GN Type(Low Discharge Rate Cells)
KPL Series Low rate nickel-cadmium battery is made of pocket plate. The battery is designed for general purpose and stand-by applicatons such as railway signaling, Alarms, Telecommunication, UPS and operation of circuit breaker,etc.

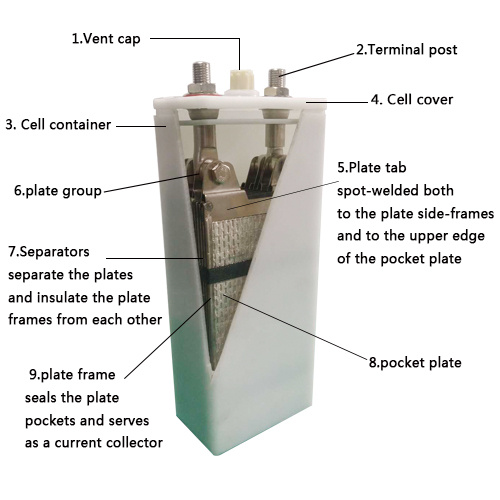

Cell Construction Features
Cell Capacity and Dimensions
| KPL=GN(Low Rate Type) Pocket----Pocket |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GN10 | 1.2 | 10 | 85 | 39 | 150 | M8 | 1 | 0.2 | ABS /PP |
| 82 | 33 | 245 | M10*1.5 | 0.95 | 0.2 | ABS |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10*1.5 | 2 | 0.6 | ABS |
| 82 | 43 | 258 | M10*1.5 | 1.3 | 0.3 | ABS /PP |
| 135 | 54 | 265 | M10*1.5 | 1.8 | 0.6 | ABS / PP |
| GN30 | 1.2 | 30 | 114 | 52 | 266 | M10*1.5 | 2.2 | 0.5 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.2 | 0.6 | ABS / PP |
| GN40 | 1.2 | 40 | 114 | 52 | 266 | M10*1.5 | 2.3 | 0.4 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.5 | 0.6 | ABS / PP |
| 141 | 66 | 226 | M10*1.5 | 2.6 | 0.5 | PP |
| 138 | 61 | 266 | M10*1.5 | 2.9 | 0.7 | ABS / PP |
| GN45 | 1.2 | 45 | 138 | 61 | 266 | M10*1.5 | 3 | 0.9 | ABS |
| 141 | 66 | 226 | M10*1.5 | 3 | 0.8 | PP |
| GN50 | 1.2 | 50 | 138 | 61 | 266 | M10*1.5 | 3.2 | 0.7 | ABS / PP |
| 141 | 71 | 295 | M10*1.5 | 3.5 | 0.9 | PP |
| GN60 | 1.2 | 60 | 135 | 53 | 370 | M10*1.5 | 3.9 | 1.0 | PP |
| 141 | 71 | 295 | M10*1.5 | 4 | 1.1 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.3 | 1.1 | ABS |
| 138 | 61 | 266 | M10*1.5 | 3.8 | 0.8 | ABS / PP |
| GN70 | 1.2 | 70 | 139 | 79 | 295 | M10*1.5 | 4.4 | 1.0 | ABS |
| 141 | 71 | 295 | M10*1.5 | 4 | 0.9 | PP |
| 2GN70 | 2.4 | 70 | 195 | 79 | 331 | M8 | 8.3 | 2.5 | PP |
| GN75 | 1.2 | 75 | 139 | 79 | 291 | M10 | 4.6 | 1.1 | ABS |
| GN80 | 1.2 | 80 | 141 | 71 | 295 | M10*1.5 | 4.6 | 0.9 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.6 | 1.1 | ABS |
| GN90 | 1.2 | 90 | 139 | 79 | 362 | M10*1.5 | 5.9 | 1.4 | ABS / PP |
| GN100 | 1.2 | 100 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN110 | 1.2 | 110 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN120 | 1.2 | 120 | 139 | 79 | 362 | M10*1.5 | 6.2 | 1.3 | ABS/PP |
| GN130 | 1.2 | 130 | 164 | 104 | 345 | M20×1.5 | 9 | 1.9 | ABS / PP |
| GN150 | 1.2 | 150 | 167 | 162 | 345 | M20×1.5 | 12 | 3.0 | ABS / PP |
| 164 | 104 | 345 | M20×1.5 | 9.3 | 2.0 | ABS / PP |
| GN180 | 1.2 | 180 | 167 | 162 | 345 | M20×1.5 | 13 | 3.3 | ABS / PP |
| 165 | 105 | 345 | M20×1.5 | 9.4 | 1.8 | ABS / PP |
| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20×1.5 | 14 | 3.3 | ABS / PP |
| 1.2 | 200 | 164 | 104 | 345 | M20×1.5 | 10 | 1.8 | ABS / PP |
| GN230 | 1.2 | 230 | 167 | 162 | 345 | M20×1.5 | 13.7 | 3.3 | ABS / PP |
| GN250 | 1.2 | 250 | 167 | 162 | 345 | M20×1.5 | 14 | 3.4 | ABS / PP |
| 277 | 145 | 420 | M16 | 15.7 | 2.6 | PP |
| GN300 | 1.2 | 300 | 282 | 170 | 348 | M20×1.5 | 22.5 | 5.0 | ABS |
| 176 | 161 | 540 | M16/20 | 20.5 | 4.7 | ABS |
| 277 | 145 | 450 | M16 | 21 | 6.0 | PP |
| GN400 | 1.2 | 400 | 282 | 170 | 348 | M20×1.5 | 25 | 5.0 | ABS |
| 277 | 145 | 450 | M16 | 22.6 | 6.0 | PP |
| 232 | 172 | 410 | M16 | 24.5 | 6.0 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20×1.5 | 33.6 | 7.8 | ABS |
| 277 | 145 | 490 | M20×1.5 | 22.6 | 6.0 | PP |
| GN600 | 1.2 | 600 | 285 | 172 | 490 | M20×1.5 | 34 | 7.5 | ABS |
| GN700 | 1.2 | 700 | 285 | 172 | 490 | M20×1.5 | 39 | 8.4 | ABS |
| GN800 | 1.2 | 800 | 395 | 185 | 560 | M20×1.5 | 57.5 | 15.5 | ABS |
| GN900 | 1.2 | 900 | 395 | 185 | 560 | M20×1.5 | 59 | 15.0 | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20×1.5 | 60 | 14.0 | ABS |
| GN1100 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 12.0 | ABS |
| GN1200 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 11.3 | ABS |
Application areas of Hengming batteries
GNC=KPX series:AGV; starting power; operating power of electrical system; etc.
GNG=KPH series:Staring power; UPS; etc.
GNZ=KPM series:Starting power; operating power of electric system; UPS etc.
GN=KPL series:Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc.

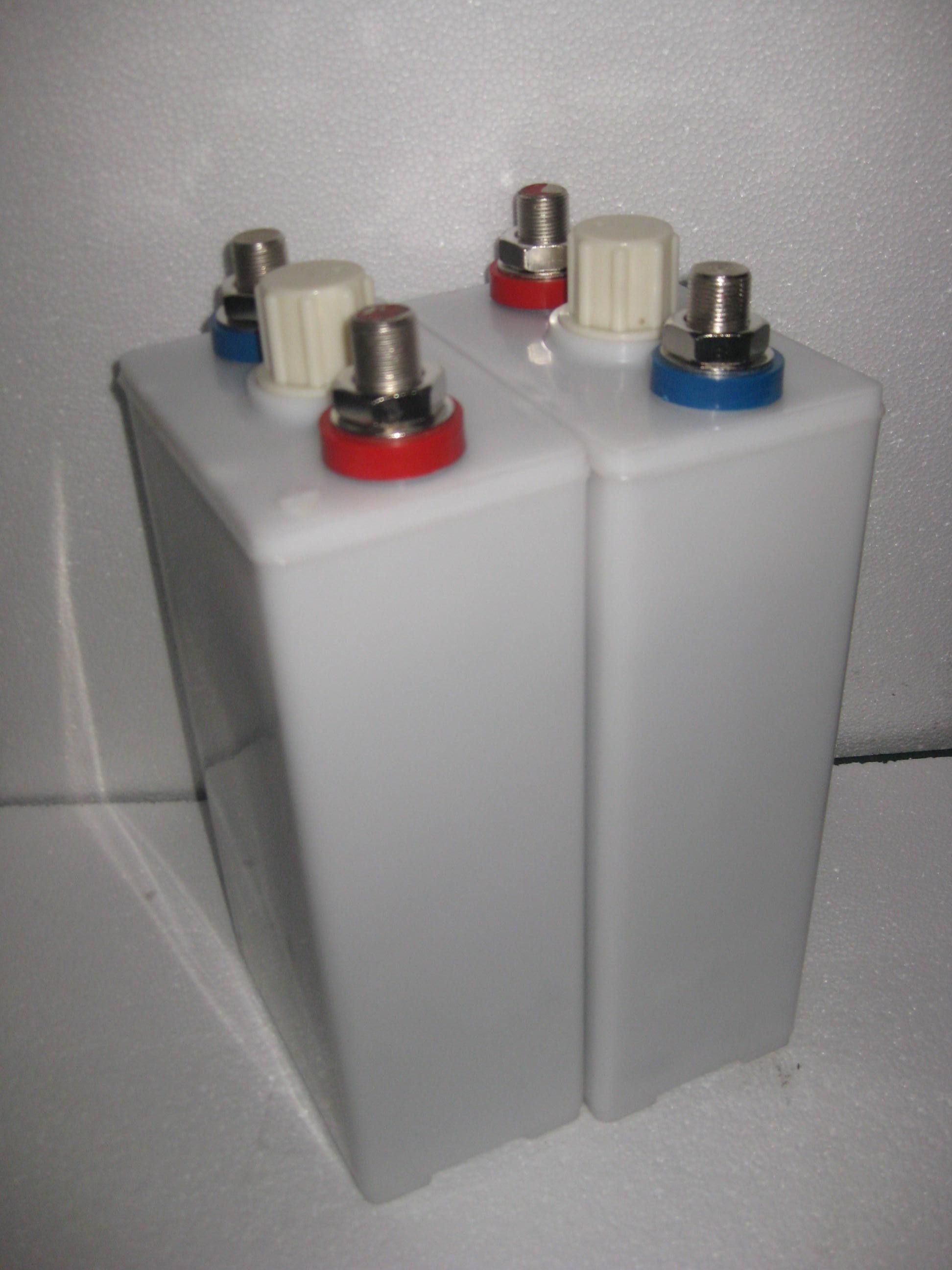

Photos
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
