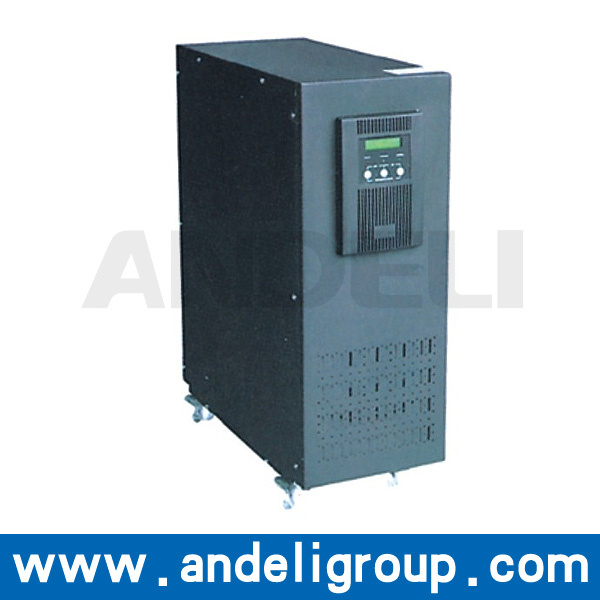

UPS for PC Uninterruptable Power Supply (3G10KNS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
3G10KNS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Voltage: |
220VAC/230VAC/240VAC |
| Type: |
On-line |
| Phase: |
1, 3 |
| Protection: |
Over-Voltage/Overcurrent/Overbatterise/Feed |
Product Description
1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
|
Product |
On Line UPS Parallel Redundancy (10~20kVA 3Ph/1Ph) |
|
Type |
3G10KNS |
3G15KNS |
3G20KNS |
|
Rated power |
VA/W |
10kVA/7kW |
15kVA/10.5kW |
20kVA/14kW |
|
Input |
Nominal voltage |
380VAC |
|
Voltage range |
304~478VAC |
|
Frequency range |
46~54Hz |
|
Phase |
Three Pahse (4 Wires+Ground) |
|
Power factor |
0.95 |
|
Connection |
Hardwired |
|
Output |
Voltage |
220VAC ± 1%, Single phase |
|
Frequency |
50Hz ± 0.1%(Battery mode) |
|
Wave form |
Sine wave |
|
Power factor |
0.7 |
|
Voltage distortion |
≤ 2% under liner load |
|
Overload capability |
105%~130% for 10min,≥ 130% for 1s. |
|
Current crest ratio |
3:1 max |
|
Connections |
Hardwired |
|
Battery |
Type |
Sealed,Maintenance free, Lead-Acid |
|
Quantity |
Depends on the requested back-up time |
|
Nominal voltage |
240 VDC |
|
Back-up time(full load) |
Depends on the capacity of the external battery bank |
|
Recharge time |
Depends on the capacity of the external battery bank |
|
Connection |
External battery socket |
Hardwired |
|
Transfer time |
|
0 ms |
|
Maintenance bypass switch |
|
Yes |
|
LED indicators |
Status |
Load level/Battery level, Battery,Utility power,Inverter, Bypass,Overload.Fault |
|
Audible alarm |
Bypass |
Alarm beeps every two minutes |
|
Battery discharge Overload |
Alarm beeps every four seconds, Every second if battery low Alarm beeps two for every second |
|
Fault |
Alarm beeps continuously |
|
Acoustic noise |
At 1 meter distance |
≤ 55 dB |
≤ 60 dB |
|
Communication |
DB-9 port |
RS232 serial interface |
|
Intelligent slot |
Options: SNMP Card, AS400 Card or Winpower CMC/(USB-Port) |
|
Parallel port |
|
Up to three units in parallel for power redundancy and load sharing |
|
Environmental |
Operating temperature |
0~40 o C |
|
Operating humidity |
20~90% non-condensing |
|
Weight |
Net(kg) |
38.5 |
55 |
|
Dismensions |
W × L × H (mm) |
260 × 570 ×717 |
Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
