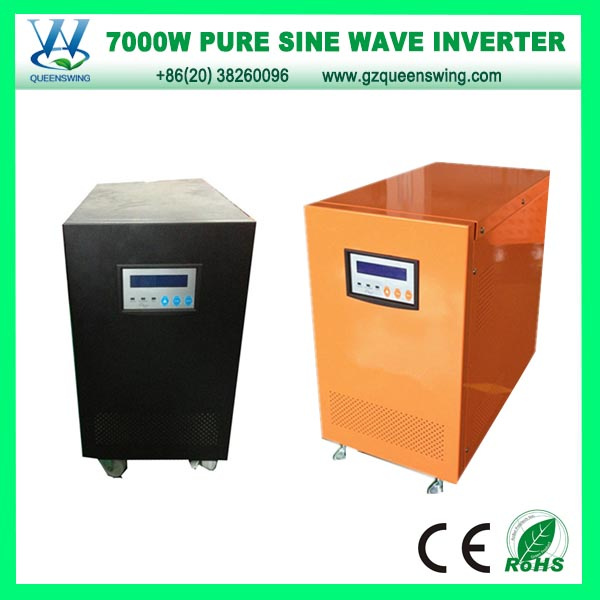

UPS Low Frequency Converter 7000W DC192V Power Inverter (QW-LF7000192)

Prod Model:	QW-LF7000192
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waveform:	Pure Sine Wave Inverter
Grid Type:	off-Grid Inverter
Frequency Type:	Low Frequency Inverter
Rated Power:	7kw
Commercial Power Range(VAC):	220VAC
Battery DC Voltage:	192V
Display:	LCD&LED
Output Transfer Time:	Typical 5ms
Housing Color:	Black/Orange(Option)
Size:	547*345*538mm/47kg
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Solar Power
Output Power:	7kVA
Certification:	SGS
Brand:	Queenswing

Product Description

UPS Low Frequency Inverter 7000W DC192V Power Converter (QW-LF7000192)

QUEENSWING Low Frequency UPS on-line Series Power Inverter includes:
1.300W~1000W 12V Inverter
2.600W~3000W 24V Inverter
3.1500W~5000W 48V Inverter
4.3000W~10000W 96V Inverter
5.5000W~10000W 192V Inverter

Features: 1. Pure Sine Wave output
2. CPU control technology; SCM control
3. Strong ability of impact resistance
4. Wide input voltage range: 145V-280V; Four step AVR ( two step boost, one step reduction voltage)
5. Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc
6. Anti reverse connection protection and high-low voltage protection(option)
7. Special overload protection: When it is overload, it will lock the unit automatically, when it restores, it will restart the unit automatically again
8. Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refregerator, motor, etc.
9. Powerful charge current: 500W can up to 15A, 1KW-4KW can up to 25A
10. LED or LCD display
11. Meet the need of different power supply
12. Use MOSFET and IGBT

Application: Intelligent battery management; Provide the battery overcharge, discharge protection exten battery life. Apply to television, refrigerator, battery furnace, fan, microwave oven, air conditioning and other household devices.

Model: QW-LF300 ~ QW-LF10000192

300W

350W

500W

600W

700W

1000W

1500W

2000W

3000W

4000W

5000W

6000W

7000W

8000W

9000W

10000W

Input

Rated capacity(W)

300W

350W

500W

600W

700W

1000W

1500W

2000W

3000W

4000W

5000W

6000W

7000W

8000W

9000W

10000W

Input

100/110/120/127/220/230 ( +25% , -35% )

100/110/120/127/220/230 ( ±20% )

Commercial Power range(VAC)

Battery

() DC Voltage

12/24VDC

24/48VDC

48/96VDC

96/192VDC

Output

AVR voltage range ( VAC )

100/110/120/127/220/230±10% ( Auto-sensing )

( No Auto-sensing ) 100/110/120/127/220/230

Transfer time

Typical:5ms(Including detection time)

Output

Waveform

Pure sine wave

Frequency

Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5

\ Appearsnce

External Size(mm)           (L*W*H)

320*150*210

380*195*310

470*260*500

550*260*650

Gross Size(mm) (L*W*H)

494*420*345 ( 2PCS )

532*468*335 ( 1PCS )

547*345*538 ( 1PCS )

710*440*795 ( 1PCS )

Net weight(kg)

7

8

9

10

11.5

13

21

25

36.5

39

42

43

45

82

82

83

Gross weight(kg)

16

18

20

22

23

28

22

26

38

42

44

45

47

84

84

85

protection

overload

IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load.

Battery

TYPE

Sealed, maintenance-free lead acid

Recharge current

15A( Maximum)

20A( Maximum)

Battery protection

Automatic self-test, discharge protection, over-charge protection, smart management system.

Above technical data only for reference, if any modified, please see the real object as standard.
