UPS Model, Unique UPS, High Frequency LCD UPS (1K-3kVA)

Name: UPS Model, Unique UPS, High Frequency LCD UPS (1K-3kVA)
Brand: all-electronics-online.com
SKU: 673806905
Availability: InStock
Rating: 5 (50 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX1K~EX3KL
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Charge Current:	1A-50A
Backup Time:	5-25mins
Battery Type:	Sealed Lead Acid Battery
Operation Temperature:	0-40°
Demension:	145× 400× 220mm
Weight:	14kg
Recharge Time:	7hours to 90%
Battery Voltage:	240vdc
Phase:	Single Phase
Type:	On-line
Protection:	Overcurrent

Product Description

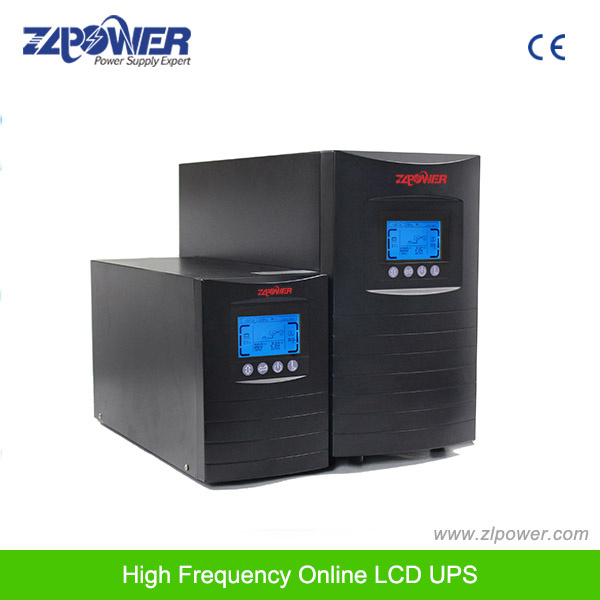

Model: New UPS model, Unique UPS, High Frequency LCD UPS (1K-3kVA)

IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz

UPS FEATURES:
Large Blue Back Light LCD for Detailed Real-Time UPS Status Display
Microprocessor control guarantees high reliability
Comprehensive Design to auto-protect UPS
Audible Alarm Mute
Cold Start Function when UPS operate
Auto Self-Testing System while Turning on UPS
Wide Input Voltage Range

UPS APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc.

Model( EX series ups)		EX1K	EX1KL	EX2K	EX2KL	EX3K	EX3KL
Capacity		1000VA/800W		2000VA/1600W		3000VA/200W
Input	Voltage	115~300VAC
	Frequency	46~54Hz/56~64Hz/Adjustable via LCD panel
Output	Voltage	220/230/240/1±1%VAC(Adjustable via LCD panel)
	Frequency	50/60Hz(Adjustable via LCD panel) 50Hz AC Mode--Follow AC Mode(AC Range 46~54Hz) Battery Mode--50Hz(1±0.2%) 60Hz AC Mode--Follow AC Mode(AC Range56~64Hz) Battery Mode--60Hz(1±0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥5′	Depends on the capacity of the external battery bank	≥9′	Depends on the capacity of the external battery bank	≥5′	Depends on the capacity of the external battery bank
	Half Load	≥14′		≥21′		≥15′
BatteryNominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0c~40c
	Humidity	15%~90%
Dimensions(W×D×H)mm		145×400×220		192×460×340
Net Weight(Kg)		14	7	34	13.5	34.5	14
