UPS, Power, Intelligent Long Backup Online UPS Power

Name: UPS, Power, Intelligent Long Backup Online UPS Power
Brand: all-electronics-online.com
SKU: 679392645
Availability: InStock
Rating: 4.3 (39 reviews)

Price:	US $ 112Unit
Trade Terms:	others
Min Order:	1Unit
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EX1kva-EX3kva
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Models:	Ex1kVA Ex2kVA Ex3kVA
Area:	AC to AC Protection
Usage:	UPS
Package:	Standard Package
Phase:	Single Phase
Type:	On-line
Protection:	Overload, Short Circuit, Overcurrent, Overvoltage
Brand:	Zlpower

Product Description

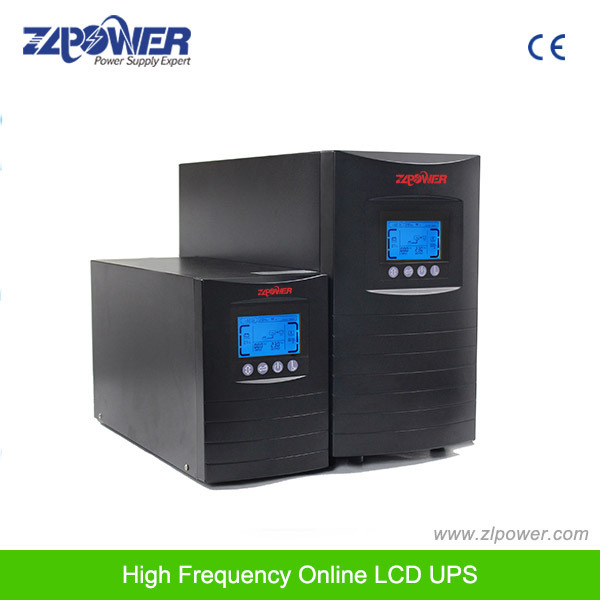

UPS Power, Intelligent Long backup Online UPS Power
1: UPS Power Capacity for 1K, 3K, 6K, 10K, 15K, 20kVA
2: Self test while UPS Start
3: Long Run UPS Model
4: With UPS SNMP Card Slot
4: LCD Online UPS with Single Phase 1K-10kVA, Three Phase In, Single Phase out for UPS 10K-20kVA

UPS Power APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive
Electronic equipment, Telecom...

KEY FEATURES
1: True on-line double conversion technology with advanced microprocessor control
2: Wide input voltage range
3: Zero transfer time
4: Protection against all type of power problems, Like: Power sags, high voltage spikes, switching transients, power surges, noise, frequency variation, brownout. Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvoltage
5: Self test while start of the UPS
6: Site wiring fault warning
7: On-battery power-on function
8: Smart RS232 and USB communication interface
9: Intelligent SNMP Card slot available
10: Built-in Sealed lead acid, maintenance free battery
11: Pure sine wave output
12: Single Phase In/Out for UPS 1-10kVA, Three Phase In and Single Phase out for UPS10-20kVA
13: Large LCD Display Large blue back light LCD for detailed real-time UPS status display
14: Microprocessor control guarantees high reliability
15: Comprehensive self-protection design
16: Audible alarm mute
17: Cold start function
18: Auto self-testing system while turning on UPS
19: Maintenance bypass switch for 6k to 20K
20: N + X parallel redundancy and capacity expansion for 6k to 20K
21: MCU (Freescale) +IGBT+DSP (TI) technology and double conversion structure

UPS Model		EX1K	EX1KL	EX2K	EX2KL	EX3K	EX3KL
Capacity		1000VA/800W		2000VA/1600W		3000VA/2400W
Input	Voltage	(115~300)VAC
	Frequency	46~54Hz/56~64Hz
Output	Voltage	220/230/240 (1± 1%) VAC
	Frequency	50/60Hz (Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz), Battery Mode: 50Hz (1± 0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz), Battery Mode: 60Hz (1± 0.2%)
Output Wave Form		Sine Wave
Back-up Time	Full Load	≥ 5′	Depends on the capacity of the external battery bank	≥ 9′	Depends on the capacity of the external battery bank	≥ 5′	Depends on the capacity of the external battery bank
	Half Load	≥ 14′		≥ 21′		≥ 15′
BatteryNominal DC Voltage		36VDC		96VDC
Transfer Time		0ms
Overload Capacity		110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications		RS-232+Intelligent Slot
Environment	Temperature	0~40 Centigrade
	Humidity	15%~90%
Dimensions (WDH) mm		145400220		192460340
Net Weight (Kg)		14	7	34	13.5	34.5	14

About ZLPOWER

Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.

As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.

Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.

In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.

Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.

ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
