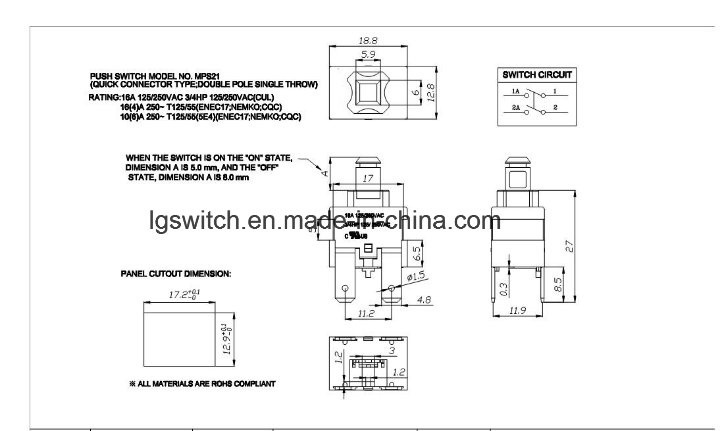

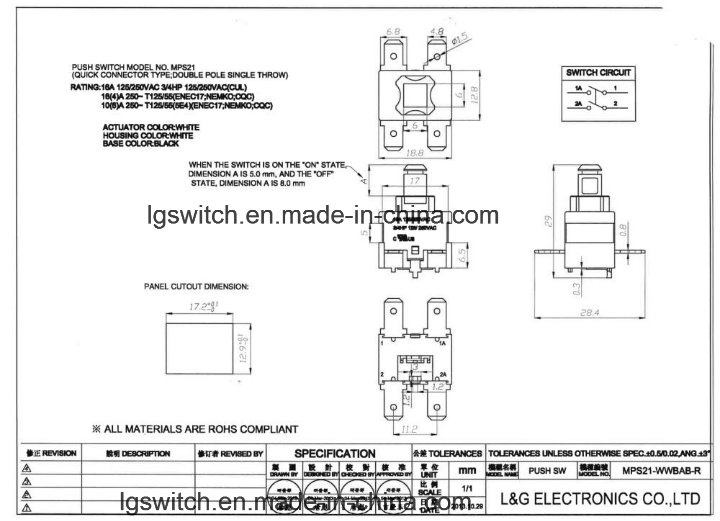

UPS Power Push on-off Micro Rocker Push Button Switch (MPS21)

Name: UPS Power Push on-off Micro Rocker Push Button Switch (MPS21)
Brand: all-electronics-online.com
SKU: 703979932
Availability: InStock
Rating: 4.4 (89 reviews)

Price:	US $ 0.01-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPS21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Max. Current:	16A
Max. Voltage:	250V
Endurance:	10, 000 Cycles
Operation Force:	300± 200 Gf
Initial Contact Resistance:	20 Max.
Type:	Normal Open
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	L&G
Certification:	CQC,UL,VDE,Nemko

Product Description

Product Description
Specifications & features:

Rating	16A 125/250VAC 3/4HP 125/250VAC (cUL) 16(4A) 250V-T125/55 (NENC17, CB, NEMKO, CQC) 10(6)A 250V~T125/55(5E4) (NENC17, CB, NEMKO, CQC)
Initial contact resistance:	20mohm max.
Insulation resistance:	100mω Min. 500VDC
Withstand voltage:	1500VAC for 1 minute
Operation force:	300± 200 gf
Endurance:	10, 000 cycles

Material
HOUSING: NYLON 66 UL 94V-0
ACTUATOR: PBT+15%GF, UL 94V-0
SPRING: STAINLESS STEEL WIRE
CONTACT HOLE PLATE: BRASS JIS C2680-1/2H, PICKLING

TERMINAL: BRASS JIS C2680-1/2H, PICKLING

SILVER CONTACT: SILVER ALLOY
BASE: PBT+15%GF, UL94V-0

1.Can be On-off Function or ON-off- ON .2or 4pins or with screw PINS;

2. Handle can be shorter or longer;

3.Function :can be on-off orON-OFF-ON;

4.Used for home appliances and electronic equipments or Equipments.

Not Locked (on) -off 2 Pins Push Button Switches 16A250VAC

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
