| Prod Model: |
Queen Star Plus Series 6-10k |
| Battery Nominal Voltage: |
192/240VDC |
| Transfer Time: |
0ms |
| Voltage: |
220/230/240± 2%VAC (1p2w+G) |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Upsen |
Product Description

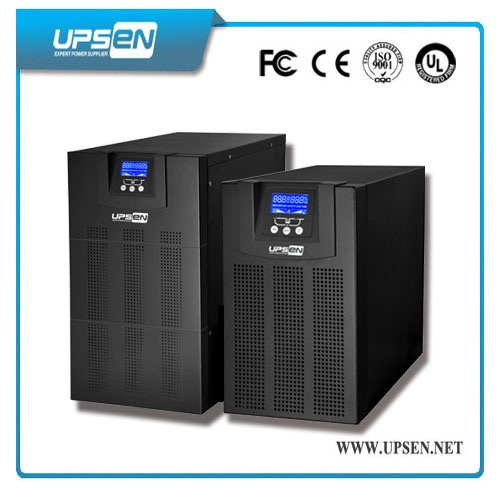

UPS power supply online ups with long time backup
Key Features;
1:DSP technology guarantees high performance
2:Optional extension battery pack
3:Intelligent SNMP Card slot available
4:Active Load Management, AVR function
5:Fully meet saltus of the load from 0 to 100%
6:UPS Equipped with maintenance bypass switch
7:Adopt the fourth layer PCB,and SMD technology
8:Suitable for all kinds of loads, and a high overload capacity
9:Built-in Sealed lead acid, maintenance free battery
10:UPS built in SNMP Card for remote internet management
11:UPS with 6-20 Kva (1ph in / 1ph out) (3ph in / 1ph out)
12:Online double conversion, offering load with best power quality
13:Super wide range of input voltage anti-interferance,adapt to harsh environment in power network
14:perfect protection function, standard configuration have lightning and surge protection
Applications:
CNC machines,Textile machinery,Lifts & elevators,Computers & Data rooms,Large deep freezers,Medical equipments,Server, Data center, Critical network devices, Telecom etc.
Technical Specification
| Queen Star Series Q6K-20Kva | | | |
| Model | Q6K | Q6KL | Q10K | Q10KL | 31Q10KL | 31Q15KL | 31Q20KL |
| Capacity | 6KVA/4800W | 10KVA/8000W | 15KVA/12KW | 20KVA/16KW |
| Input | Nominal Voltage | 220/230/240Vac | 380/400/415Vac |
| Voltage Range | 176~276Vac (1P2W+G) | 304~478Vac (3P4W+G) |
| Current | 31A (max) | 50A (max) | 50A (max) | 75A (max) | 100A (max) |
| Frequency | 46~54Hz/56~64Hz |
| Power Factor | ≥0.99 |
| Output | Voltage | 220/230/240± 2%Vac (1P2W+G) |
| Frequency | 50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
|
|
| Current | 27.3A | 45A | 68A | 91A |
| Power Factor | 0.8lag |
| Waveform | Pure Sine Wave |
| Waveform Distortion | Line load <2% | Line load <3% |
| Back-up Time | Full Load | ≥7′ | Depends on external batteries bank's Capacity | ≥5′ | Depends on external batteries bank's Capacity |
| Half Load | ≥20′ | ≥13′ |
| Battery Nominal Voltage | 192/240Vdc |
| Transfer Time | 0ms |
| Overload Capacity | >105% 1min, >120% 30s transfer to bypass, shut down in 1min |
| Communication | SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment | Temperature | 0C~40ºC |
| Humidity | 15%~90% |
| Dimension | Width (mm) | 260 | 260 | 260 | 260 | 260 |
| Depth (mm) | 560 | 533 | 560 | 533 | 560 |
| Height (mm) | 717 | 501 | 717 | 501 | 717 |
| Net Weight(Kg) | 68 | 18 | 70 | 20 | 28 | 30 | 30 |
| *Specification are subject to change without prior notice |

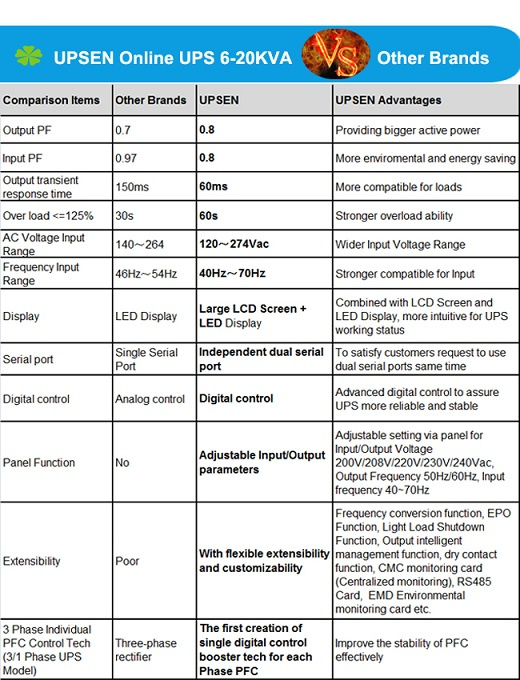

Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
