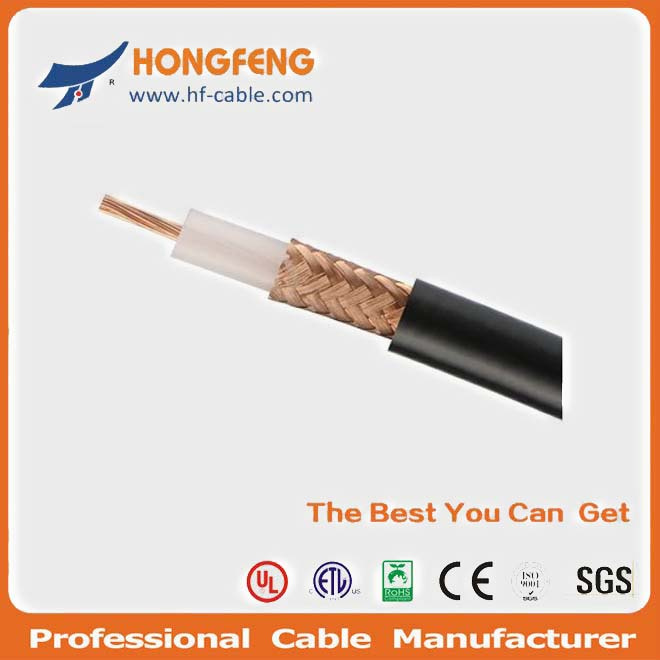

Urm67 Coaxial Cables

Name: Urm67 Coaxial Cables
Brand: all-electronics-online.com
SKU: 793259395
Availability: InStock
Rating: 4.8 (124 reviews)

Price:	Negotiable/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	URM67
Coaxial Cables Are Used In High Frequenc:	Especially for Transmiters and Receivers
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Model:	Coaxial
Type:	Coaxial

Product Description

Our services:

1, Good quality guarantee
2,CE.ROHS.ETL.ISO
3,Factory Price
4,OEM is ok
5,Short delivery time

1. Construction and performances:

Construction

Inner conductor Tinned copper 7 x 0.75 mm
Dielectric Low density PE Φ7.25 ± 0.18 mm
Outer conductor (shield) Plain copper 192 x 0.18 mm
Shield coverage 98%
Sheath PVC or LSZH Φ10.3 ± 0.18 mm

Electrical & Mechanical Characteristics

Impedance(Ohms) 50+3 @1-400MHz
Nomial Capacitcance(pF/m) 101 @1KHz
Velocity of Propagation 66%
Insulation resistance >2000 Mohm.Km
Inner conductor resistance 20.5 Ohm/Km
Outer conductor resistance 4.5 Ohm/Km
Test/Operatig Voltage(max) 8.0 KV/5.0 KV
Operating temperature range -30 °C - +70 °C
Copper Weight 57 Kg/Km
Cable weight (approx.) 145.2 Kg/Km
Screening effectiveness >55 dB

Attenuation[ @68°F]

Frequency(Mhz)	Maximum(dB/100M)
1	0.6
10	2
50	4.9
100	6.9
200	9.8
400	15.4

Return Loss

30-300 MHz	> 30 dB
300-600 MHz	> 27 dB
600-900 MHz	> 25 dB

2. Our certificates:

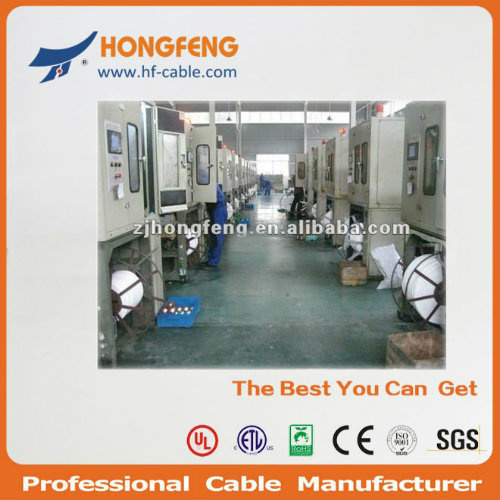

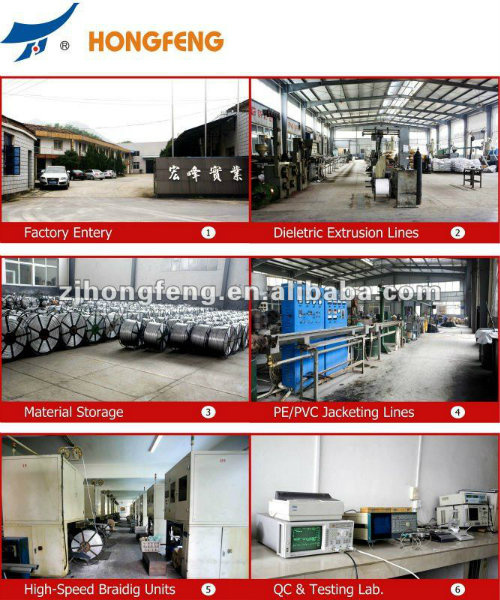

3. Our factory:

Main products:

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.

5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.

Contact:

Mr. Leo

Hangzhou Hongfeng Cable Co., Ltd.

www.hf-cable.com

www.hf-cable.com.cn

Tel: +86-571-58615552

Fax: +86-571-63816227

Mb: +86-18268847560

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
