USA 0.333V Split Core Current Transformer

Name: USA 0.333V Split Core Current Transformer
Brand: all-electronics-online.com
SKU: 798582115
Availability: InStock
Rating: 5 (94 reviews)

Price:	US $ 3-8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	xh-sct
Application:	Electronic
Type:	Current Transformer
Phase:	Single

Product Description

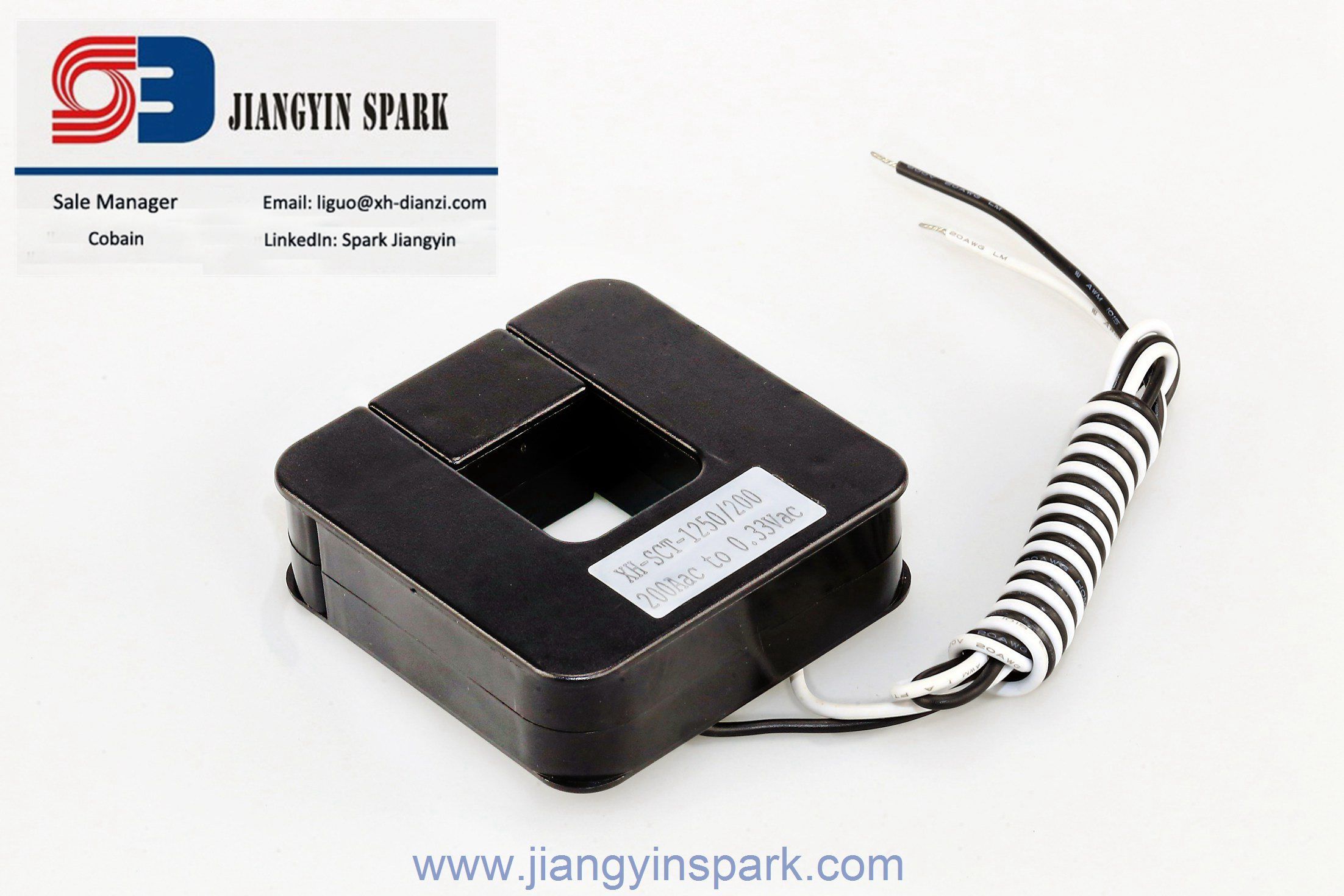

Split Core Current transducer SCT 333mV Secondary Output

^{The JIANGYIN SPARK series of split core transducer are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary}

^Features

^{Low cost.}

^{Split core design; safer, easier installation, portable.}

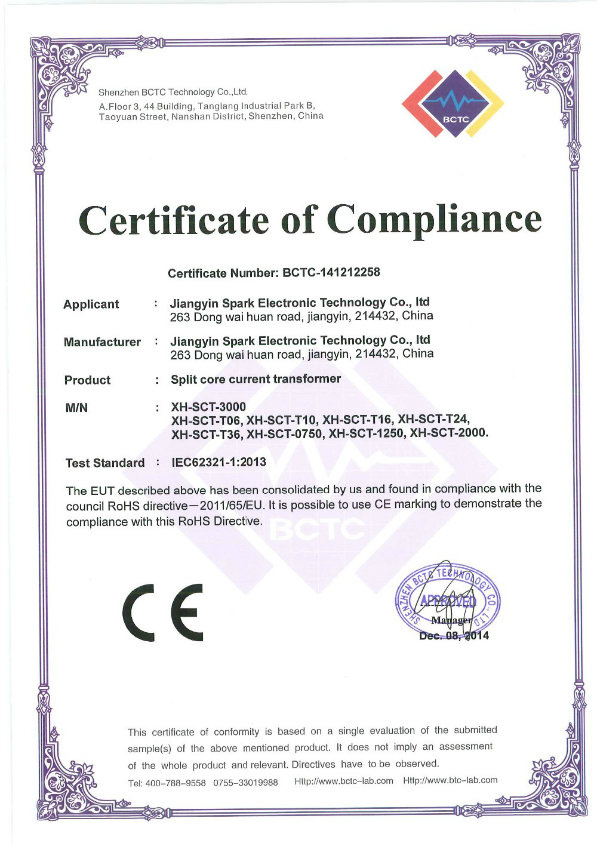

^{UL; CE; ETL; RoHS certifications}

Description:

These split-core current transformers (CTs) for control Systems offer an easy, safe, and inexpensive method for monitoring
electrical energy usage.

Ideal for retrofit applications, the split core makes it possible to attach the CT without disturbing existing wiring. Just open the CT, slip it over the wire, and snap the CT closed. Once assembled, the CTs have no exposed metal parts.

The 0.333 VAC output of these CTs is low, making them much more safe to install and use than CTs with current secondary's.

Part numbers with ACT in the middle (ACT series) are accurate to±1% from 5% to 130% of rated current

They also have exceptionally low phase angle error, which is essential for accurate power and energy measurements, These
CTs swing open for one-handed operation..

Each CT has an internal precision burden resistor across the secondary. Each CT includes 2 meter, twisted-pair, 20 AWG leads.

Using UL material, flame resistance suitable for UL90-V0, for this produce, UL, CE recognized, and RoHS compliant but with cheaper price on the market.

Rated voltage is 0.66KV, insulation voltage is 2KV, and the rated frequency will be 50HZ or 60hz

And this one is indoor split core CTs, suitable temperature -15ºC to 70ºC

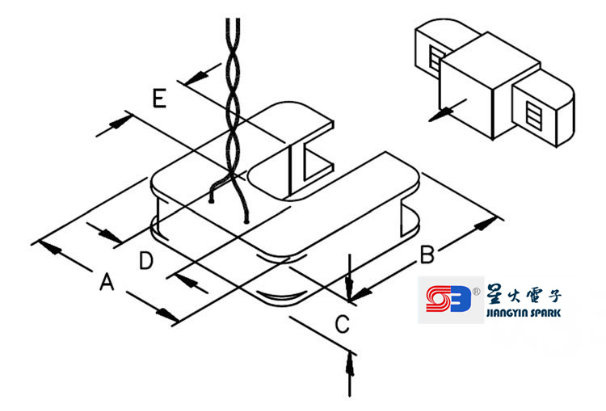

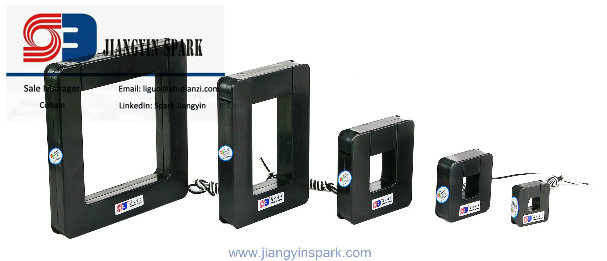

Model	I. D.	Rated Amps	Output	Accuracy	SIZE (mm )
Model	I. D.	Rated Amps	Output	Accuracy	A	B	C	D	E
XH-SCT-0750	0.75" (19.1mm)	5, 15, 30, 50, 70, 100, 150, 200	0.333V	1.0	51.6	54.1	16.6	19.1	18
XH-SCT-1250	1.25" (31.8mm)	70, 100, 150, 200, 250, 300, 400, 600		1.0	82.3	85.3	26.4	32	32.3
XH-SCT-2000	2.00" (50.8mm)	400, 600, 800, 1000, 1200, 1500		1.0	120	125	29.6	52.5	52
XH-SCT-3000	3.00" x 5.00" (76.2mm x127mm)	1000, 1200, 1500, 2000.3000		1.0	145	199	30.5	76	130

By the way we also have another type of split core current transformer, and pls contact me if you interesting.

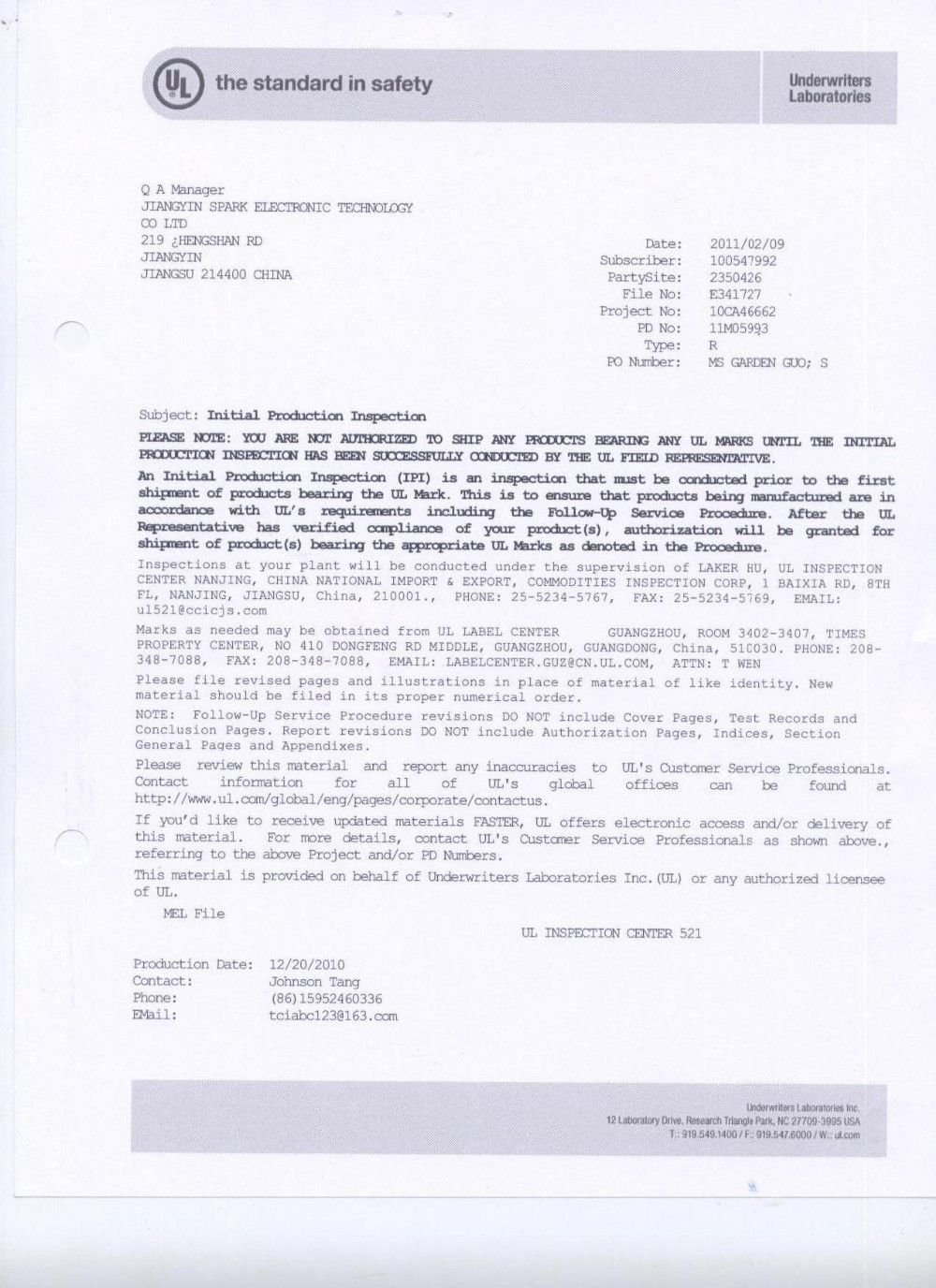

Also have UL CE ETL Rohs certificate.

Model	Diameter	Ratio	Rated Amps	Accuracy
XH-SCT-T10	10mm	3000:1	0-80A	0.5, 1.0
XH-SCT-T16	16mm	3000:1	0-120A	0.5, 1.0
XH-SCT-T24	24mm	3000:1	0-300A	0.5, 1.0
XH-SCT-T36	36mm	3000:1	0-600A	0.5, 1.0
XH-SCT-T70	70mm	200:1	0-1000A	0.5
Special T10	10mm	3000:1	0-5A	Within 0.5

Welcome to JIANGYIN SPARK

Jiangyin Spark Electronic Technology Co., Ltd. is a professional manufacturer in China devoted in research, design, and production of electromagnetic products. We commonly provide split core current transformer sensor, mini current transformer, and mini voltage transformer, but also develop and design all kinds of energy saving modules and instruments. The well trained production and QC staff can assure all the current transformers perfect performance.

Since the company is founded in 1995, we have registered many Invention and practical Utility Model patents. We have passed the ISO9001: 2008 quality management certification system and UL and CE certification. In 2010, our company was awarded the second prize of Jiangsu Province Engineering Industry Improvement Award, and won the title of Wuxi City High and New Technology Enterprise. Located near the Port of Shanghai, the domestic logistics cost can be effectively saved.

For all of our products, samples are provided for free, but the purchaser has to endure the freight. The delivery cycle is generally 1 or 2 weeks depending on the product models. We can design products according to your requirements. OEM is also available.

In the principle of unity, efficiency, development, and mutual benefit, we are striving to provide you with better services.
