USA High Quality CT AC Current Clamp with Permalloy Core

Name: USA High Quality CT AC Current Clamp with Permalloy Core
Brand: all-electronics-online.com
SKU: 688692122
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	xq13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hot Searching:	Clamp on Cts
Features:	Low Phase Shift for Power Measurement
Measurement Range:	1mA to 100A AC
Nominal Input Current:	100 a
Output Signal:	100mA AC at Nominal Input Current
Accuracy:	0.1 %, 0.2%
Max. Jaw Opening:	13 mm
Dimensions:	Dimensions
Weight:	350g
Output Model:	Lead Output
Material:	Permalloy
Application:	Power, Electronic, Instrument, Electronic

Product Description

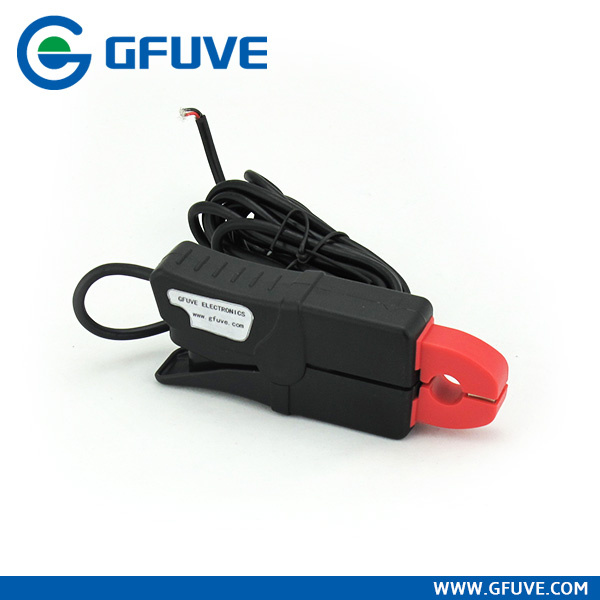

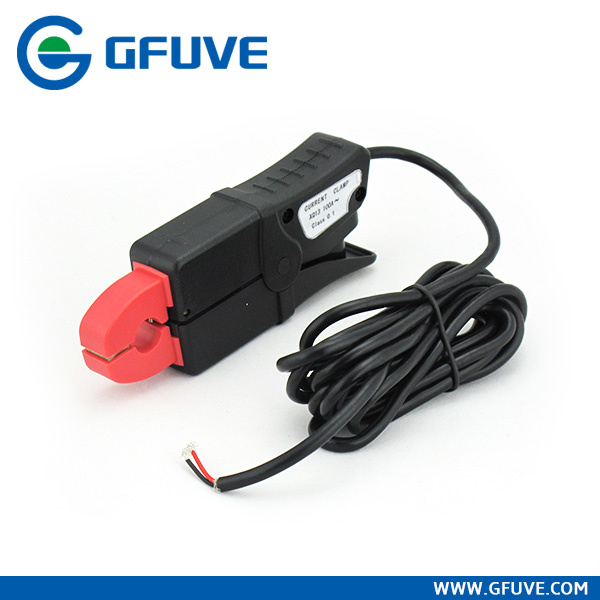

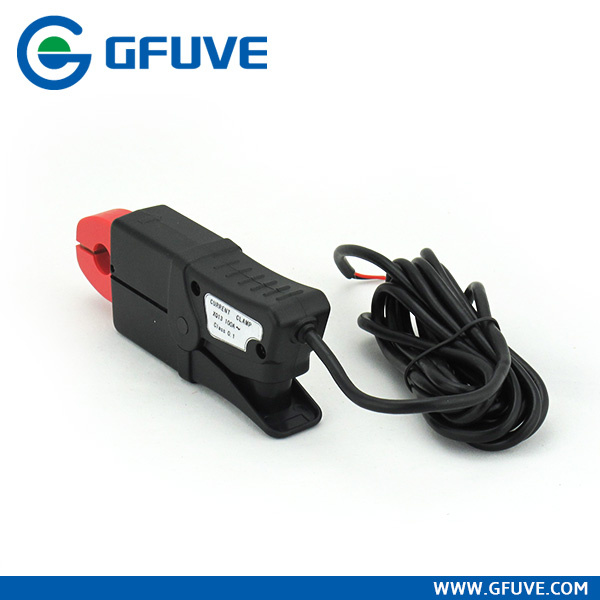

XQ13 USA high quality ct ac current clamp with Permalloy Core

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 100A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output(2.5m)

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	100 A
Max. Cont. Input current	120A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	100mA AC at nominal input current
Frequency range	40 Hz....2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C...+55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	13 mm
Standard	EN 61010-1
Dimensions	52.5mm x 136.5mm x 28 mm
Weight	350 g

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
