USB 2.0 Type a Receptacle Vertical DIP PCB End

Prod Model:	USBX-A4FX-XXD0-00, Usbx-A4FX-Xxd0-10&-07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Mounting Style:	Through Hole
Application:	Residential/General-Purpose
Hole-Digit:	4 Digits
Cable Length:	1.5 Meter
IP Rating:	IP56
Color:	Black
Certification:	UL
Customized:	Non-Customized
Condition:	Used

Product Description

Product Details
Basic Info.
Interface Type:USB
Connector:USB
Universal:Universal

Data Transmission Function
Surface:Smooth
Charging Function:Charging Function
Customized:Tranditional ,can customized
USB:2.0

Additional Info.
Packing:Reel
Standard:RoHs
Origin:Kunshan, China
Production Capacity:100000000PCS/M
Product Description
Features:
1. With A Type/B Type and Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature

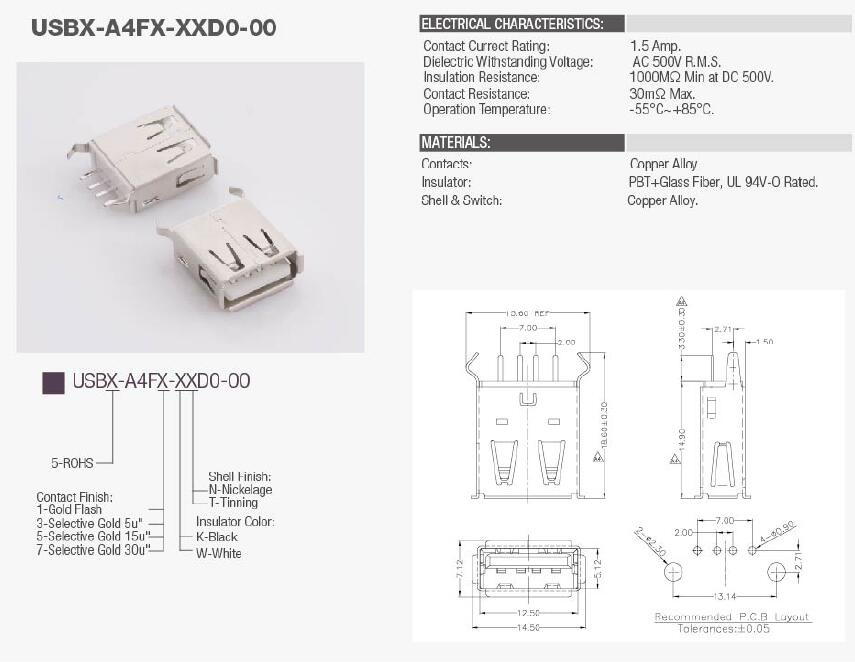

ELECTRICAL CHARACTERISTICS:
Contact Currect Rating:	1.5Amp.
Dielectric Withstanding Voltage:	AC500V.r.m.s
Insulation Resistance:	1000MΩ Min at DC 500V
Contact Resistance:	30MΩ Max
Operation Temperature:	-55°C-+85°C

.

MATERIALS:
Insulator:	PBT+Glass Fiber UL 94V-0
Shell:	Cold Roller Steel
Contacts:	Copper Alloy

TARGET MARKET / APPLICATION
Computers, laptops, servers
Printers, external drive units, monitors
Digital cameras, TV's, set-top box
Modems, keyboards, instrumentation
Point-of-sale equipment
Data
Servers
External Storage Systems
Supercomputers
