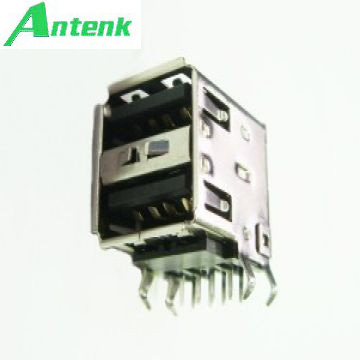

USB a Female Stacked for PCB Right Angle TPE Connector

Name: USB a Female Stacked for PCB Right Angle TPE Connector
Brand: all-electronics-online.com
SKU: 715526275
Availability: InStock
Rating: 5 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Micro USB connector series 003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Housing:	PBT G. F., White
Contact Resistance:	30m Ohms Max.
Insulation Resistance:	1000m Ohms Min. at 500V DC
Rated Voltage And Current:	1.5A at 250V AC Min
Application:	Network
Interface Type:	USB
Material:	Optical Fiber
Pin:	4Pin

Product Description

MINI USB connector for cable A type male 4P(main housing+cover+front shell+rear shell)

Specification

Housing: PBT G. F., White
Pin term: Phosphor Bronze, T=0.25, Gold/Tin Plated
Shell: Brass, T=0.3, Tin plated
Contact Resistance: 30M ohms Max.
Insulation Resistance: 1000M ohms Min. At 500V DC.
Rated Voltage and Current: 1.5A at 250V AC Min
Dielectric Withstanding Voltage: 750V AC for 1 minute.
Durability( Life Test): 1500 cycles
Insertion Force: 35 Newtone Max.
Extraction Force: 10 Newtone Min.

RoHS compliance

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
