USB Interface 8 Ports and 64 Sims GSM SIM Box Gateway Controlled by PC

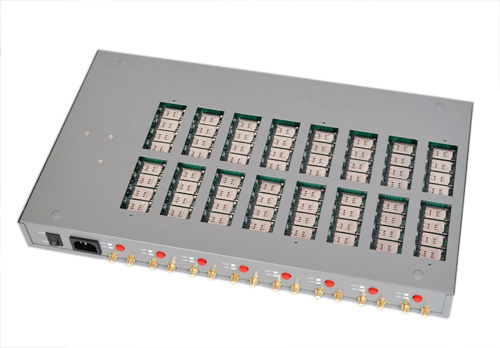

Name: USB Interface 8 Ports and 64 Sims GSM SIM Box Gateway Controlled by PC
Brand: all-electronics-online.com
SKU: 678340255
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Etross-8264
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
SIM Rotation:	Yes
IMEI:	Changeable
Rj-11 Interface:	8PCS
Frequency:	850/900/1800/1900MHz
SIM:	32
Type1:	Wireless
Usage:	GSM FWT
Support Network:	GSM SIM Box Gateway
Type:	Wireless

Product Description

Brand: ETROSS or OEM brand
Model No.: ETROSS-8264
Frequency: Quad band 850/900/1800/1900MHz
Product name: 8 Ports/Channels 64 SIM Cards GSM FWT Fixed Wireless Terminal/GSM FCT Fixed Cellular Terminal/GSM Gateway/GSM WLL/Analog GSM Gateways/GSM Channel Bank/GSM SIM Box/GSM Roaming Terminal

General Information
Etross GSM gateway(FWT) ET-8264 is an analogue GSM fixed wireless terminal, it has 8 ports(channels), every port has 2 GSM modules active simultaneously, every port has 8 SIMs, So there are totally 8 ports 16 GSM modules 64SIMs in one device.

GSM gateway(FWT) ET-8264 is mainly designed to connect with FXO VoIP gateways to realize VoIP call terminations purpose, It incorporates the latest GSM technology with ARM processors to realize BTS rotation, SIM rotation, IMEI automatic generation and automatic rotation functions etc. It can effectively lower the carrier's(telecom operator) IMEI block, SIM block and BTS block, improve communication efficiency, obtain better economic benefit.

Hardware Specifications
Using 32 bit ARM embedded processor.
Using Quadband GSM/GPRS module (Quectel M10), quick connection and good voice quality
Can be managed by computer through USB cable
LED indicators display signal, SIM status, and error status
8 channels FXS independently
Seamless connection for SIM rotation, rotation no need waiting
2 modules per channel, 2 modules active simultaneously

Software Specifications
Hyper terminal console software management function
Call records, including the number of outgoing calls, call failure and cumulative call time
Billing and balance management
BTS locking and rotation
SIM automatic rotation
IMEI automatic generation & rotation
Read/Send/Delete SMS

Technical Index & Specifications
Frequency ranges Quad band GSM 850/1900/900/1800MHz.
Phone interface supply 8 RJ-11 Phone Interfaces
Hanging voltage 45V
Picking curre 30mA/41mA
Dialing tone Frequency: 450Hz
Antenna interface SMA antenna connection
Sensitivity < -104dBm
Transmitting power≤ 3W
Antenna amplifying >1.5dB
Adapter interface Input: AC 100-260V Output: 5V/6A
USB interface
Operation Circumstance
Operation temperature: -10° C ~ 60° C Storage temperature: -20° C ~ 0° C
Operation humidity: 45% _95% Atmosphere pressure: 86 _106Kpa
Environment noise: 60dB Transmitting Power: 2W
Sensitivity: <-104dBm Antenna Amplifying: >1.5dB
Dialing frequency: 450Hz Hanging voltage: 45V
Picking current: 30mA/41mA
Color: Gray / black (optional)
Gross Weight: 5.5KG, Net Weight:

Measurement
Product dimension: L455x W280x H45mm
Gift box dimension: L510x W300x H64mm

General:
Shenzhen Etross Telecom Co., Ltd is a high-tech telecom company which specializes in developing and manufacturing wireless products, including GSM/CDMA/PCS FWT, FWP, And PC Multi user Share & Network Computing Terminal etc. For years, we have been devoted to providing good quality and hi-tech products to our clients, to be a China gold supplier of Telecom and IT products, we have operated around 7 years since 2000.

Business Description:
Currently we have several modern production lines producing GSM/CDMA/PCS FWT and FWP series devices, and coordinated factories producing Multi user PC share & Network Computing terminal products. The production capacity can reach 1000 sets a day. In our company's R&D center, our experienced engineers are working to develop new high technology to guarantee our products' good quality and competitive advantage in the market. And some of our products have passed CE, FCC &RoHS certification.

Etross series products have been sold to more than 100 cities in China and exported to over 40 countires spread over South Asia, Middle East, Africa, South America, Europe And North America. And also get good market share in some countries.

Major Products & Services
Etross products and services are categorized under the following different segments:
Fixed Wireless Terminal--GSM, CDMA and PCS 1 port and 4, 8 ports
Fixed Wireless Telephone--GSM, CDMA and PCS
PC Multi user share & Network Computing terminal

Thanks for using Etross Series products, hope you can make more successfully.
